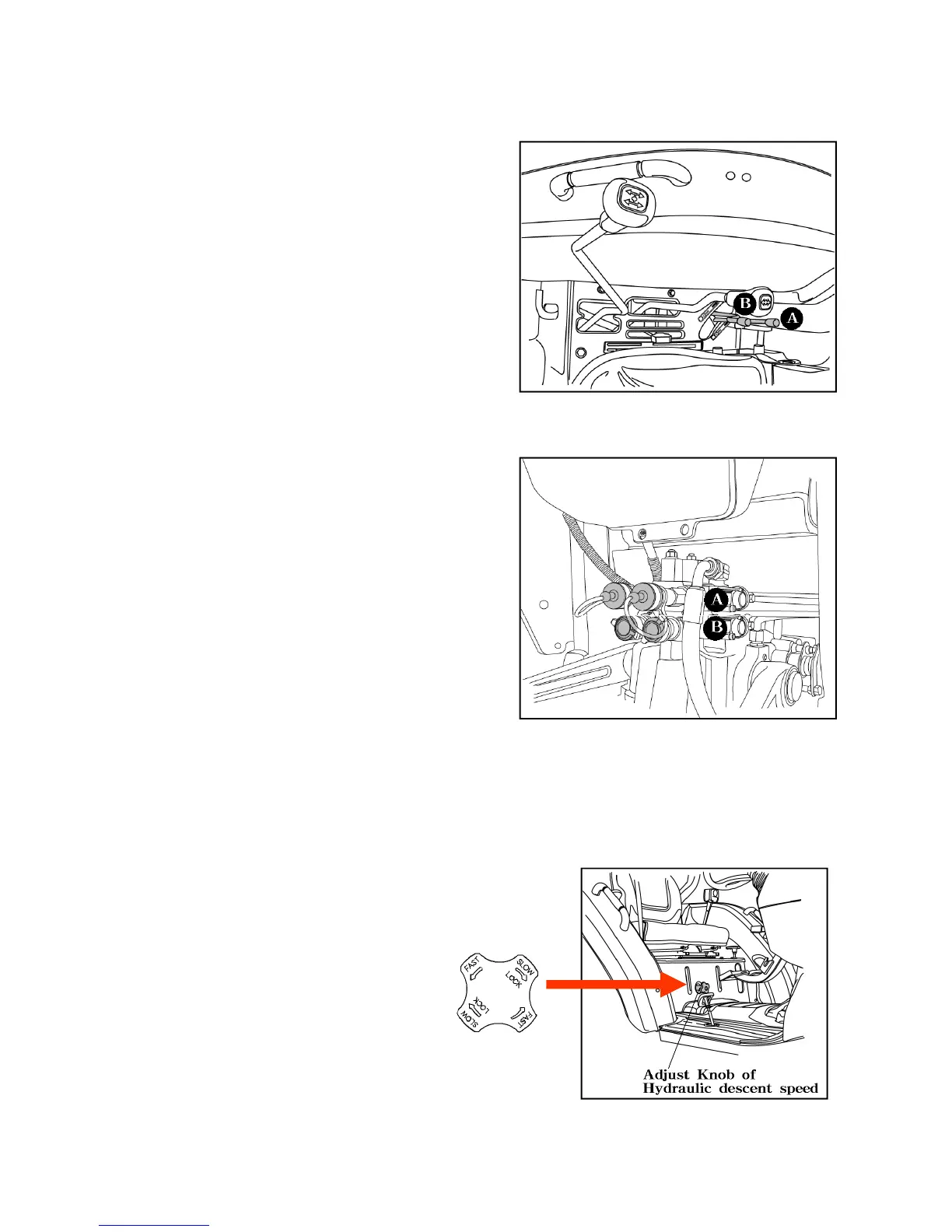

Exterior hydraulic Lever
Move the lever up or down and hold.This will raise or
lower the implement (rotavator or hydraulic plow).
Lever will return to neutral by itself.
Important:
-Do not hold the lever in the “pull” or “Push”position
once the remote cylinder has reached the end of the
stroke.as this will cause oil to flow through the relief
valve.Forcing oil through the relief valve for extended
periods will overheat the oil.
-When Using the tractor hydraulic system to power
front loader,do not operate the boom and bucket
cylinders simultaneously.
Remote hydraulic control valve coupler connecting and disconnecting
■ Connecting
1.Clean both couplers.
2.Remove dust plugs.
3.Insert the implement coupler to the tractor hydraulic
coupler
4.pull the implement coupler slightly to make sure
couplers are firmly connected.
1.Lower the implement first to the ground to release
hydraulic pressure in the hoses.
2.Clean the couplers
3.Relieve pressure by moving hydraulic control levers
with engine shut off.Pull the hose straight from the
hydraulic coupler to release it
4.Clean oil and dust from the coupler,then replace the
dust plugs.
▶Lowering speed control knob for the 3 point hitch
This knob controls the downward speed of the
hydraulics three point linkage and is positioned at the
front of the driver’s seat.
To slow the downward speed- Turn the knob clockwise.
To increase the downward speed, turn the
knob anticlockwise.
To lock the knob clockwise.
Do not over tighten the knob.
41
