TYM T353 - ADJUSTING THE CLUTCH; ADJUSTING THE BRASKES

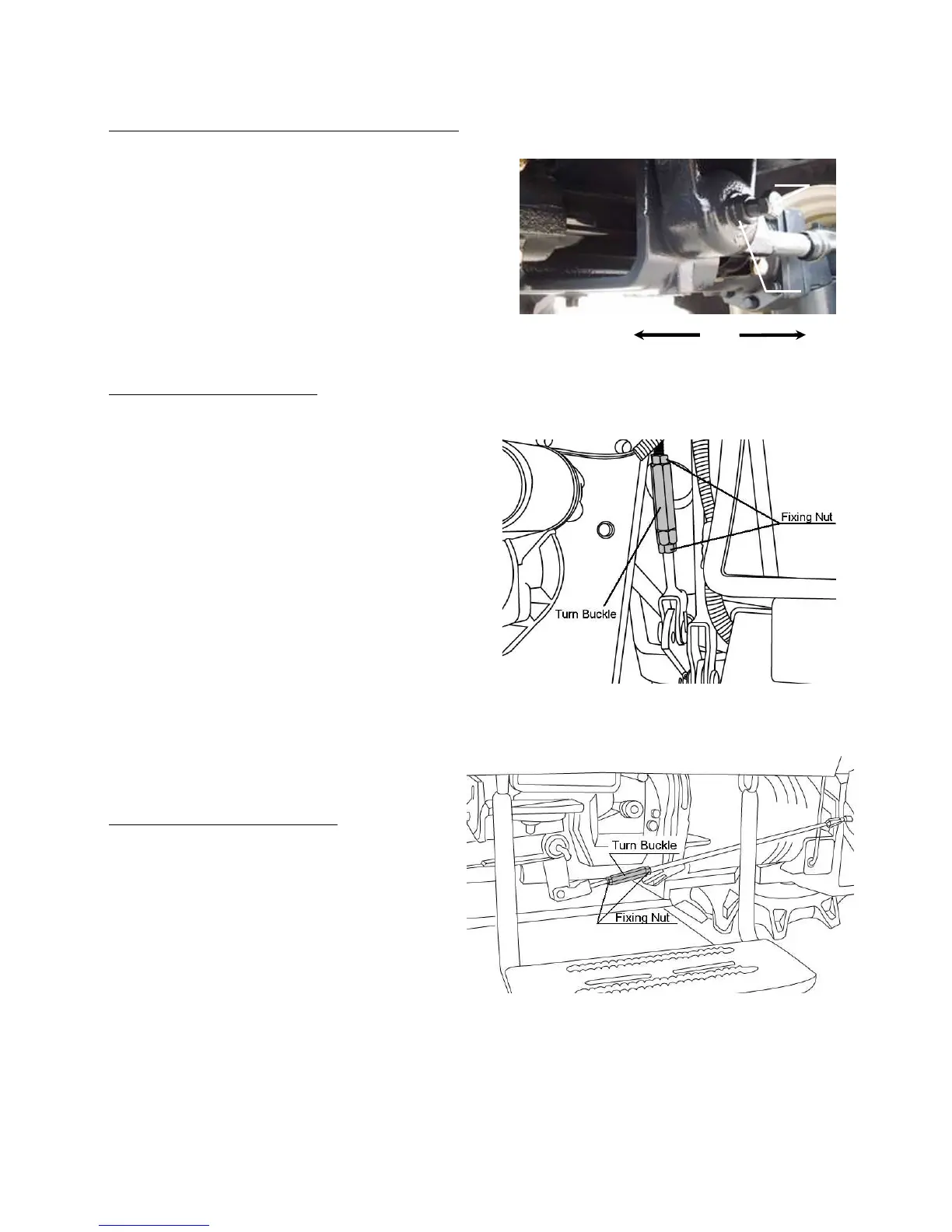

GAP ADJUSTMENT ON THE FRONT AXLE
Lift the front with a hydraulic jack to get the wheels of
the ground.
Then loosen the nut and tighten the bolt fully and turn
the bolt ½ to loosen again in order to roll the center
pivot metal freely and tighten the nut again. .
While the wheels arte still off the ground, move the
axle on the center pivot as a final check that the gap is
set correctly on the top of the pivot metal
Front
FrontFront
Front axle
axleaxle
axle
Backward Forward
Nut
NutNut
Nut
Bolt
BoltBolt
Bolt
ADJUSTING THE CLUTCH
Using the clutch over a period of time will increase the
free play.
The correct free play of the pedal is 0.78~1.18 in
To adjust, loosen the locknut on the turnbuckle and
adjust.
66
Check the adjustment and tighten the locknut if the
free play is correct.
ADJUSTING THE BRASKES
As is the case with the clutch, use of the
brakes will change the pedal free play and
the balance between the right and left pedal.
The correct pedal free play is 1.18~ 1.57 in
