TYM T353 - ADJUSTING THE CHECK CHAIN; ADJUSTMENT OF THE TOP LINK; ADJUSTMENT OF LOWER LINK; ADJUSTMENT OF THE YOKE ROD ON THE LOWER LINK

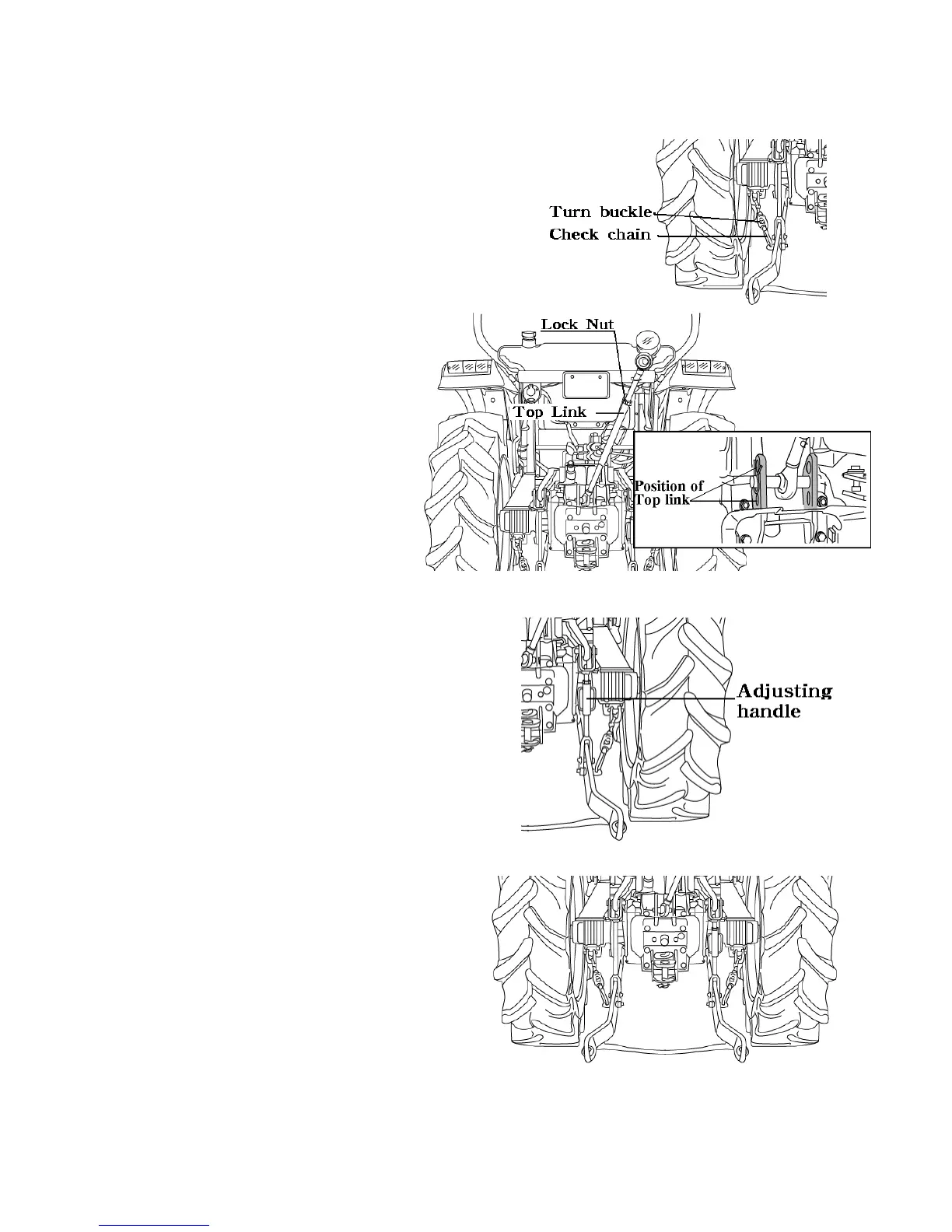

▶ADJUSTING THE CHECK CHAIN
To adjust the check chain turn the turnbuckle to
lengthen or shorten the chain and tighten the lock
nut when the correct adjustment is achieved.
▶ADJUSTMENT OF THE TOP LINK
Lengthening or shortening the top link will
change the angle of the implement.
The locating hole of the top link varies with
the type of implement used.
The most common locations are the 2
nd
and
3
rd
hole from the top
43
▶ADJUSTMENT OF LOWER LINK
The adjustment is done with the adjusting handle on the
Right hand yoke rod and leveling box.
To shorten it wind the handle clockwise and to lengthen
it wind it anti-clockwise.
When adjusted correctly hold the adjusting handle with
the stopper provided.
▶ADJUSTMENT OF THE YOKE ROD ON
THE LOWER LINK
For different applications change the position of
the yoke rod on the lower links as shown and
insert the pin in the direction of the arrow
