EN – 32
2.3.3 Foot rest replacement
• Loosen the screw on the foot shell with the provided hexagon screwdriver.
• For the replacement of the foot rest pull out the catch bolt and, on the rail, pull
out the foot rest (1).
• Take a new foot rest, pull out the catch bolt, and on the rail push the new foot
rest into the desired position (2).
• Let go of the catch bolt once you have established a suitable position and it will
automatically snap into place.
• Tighten the screw again with the hexagon screwdriver.

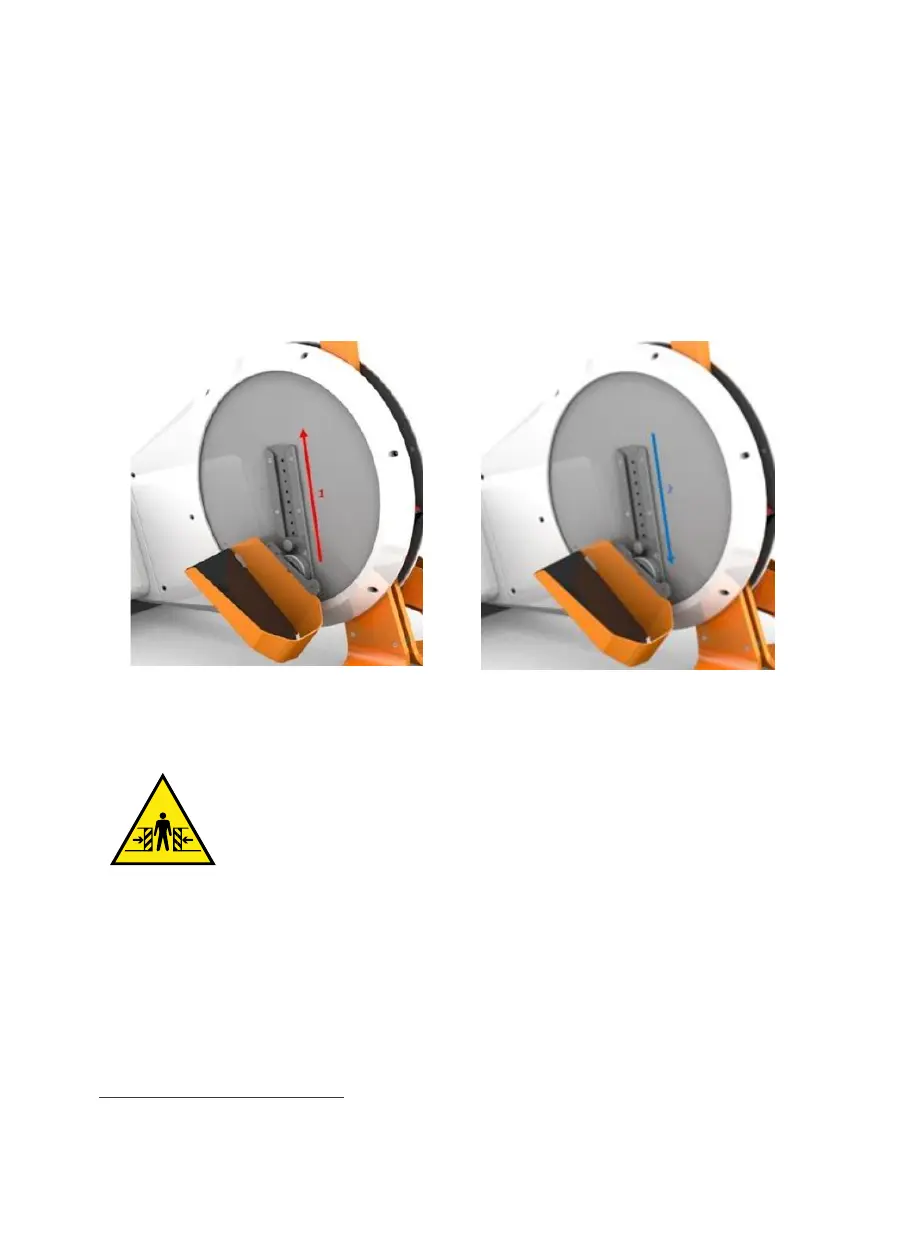

Image 7: Removing the foot rest
Image 8: Mounting the foot rest
Trying to replace the foot rests while the cranks are in motion or
during therapy poses a jamming hazard:
While the cranks are spinning or a therapy session is in process,
neither the operator nor any other person may modify the device’s
pedal radius. Always end the therapy session before entering the
main menu for modifications.
Never attempt to modify a moving part!
Two foot rest sets are included with the device, one for normal therapy and one for foot
drop therapy. For distinguishing purposes the sets are labeled with different article
numbers. These article numbers can be found at the bottom of the foot rests and for
foot drop therapy foot rests additionally on the foot fixations with magnetic couplings.
Foot rest set – normal therapy
