u-blox XPLR-AOA-3 User Manual

XPLR-AOA-3 - User guide
UBX-22006906 - R07 ANT-B10 Page 11 of 46
C1-Public

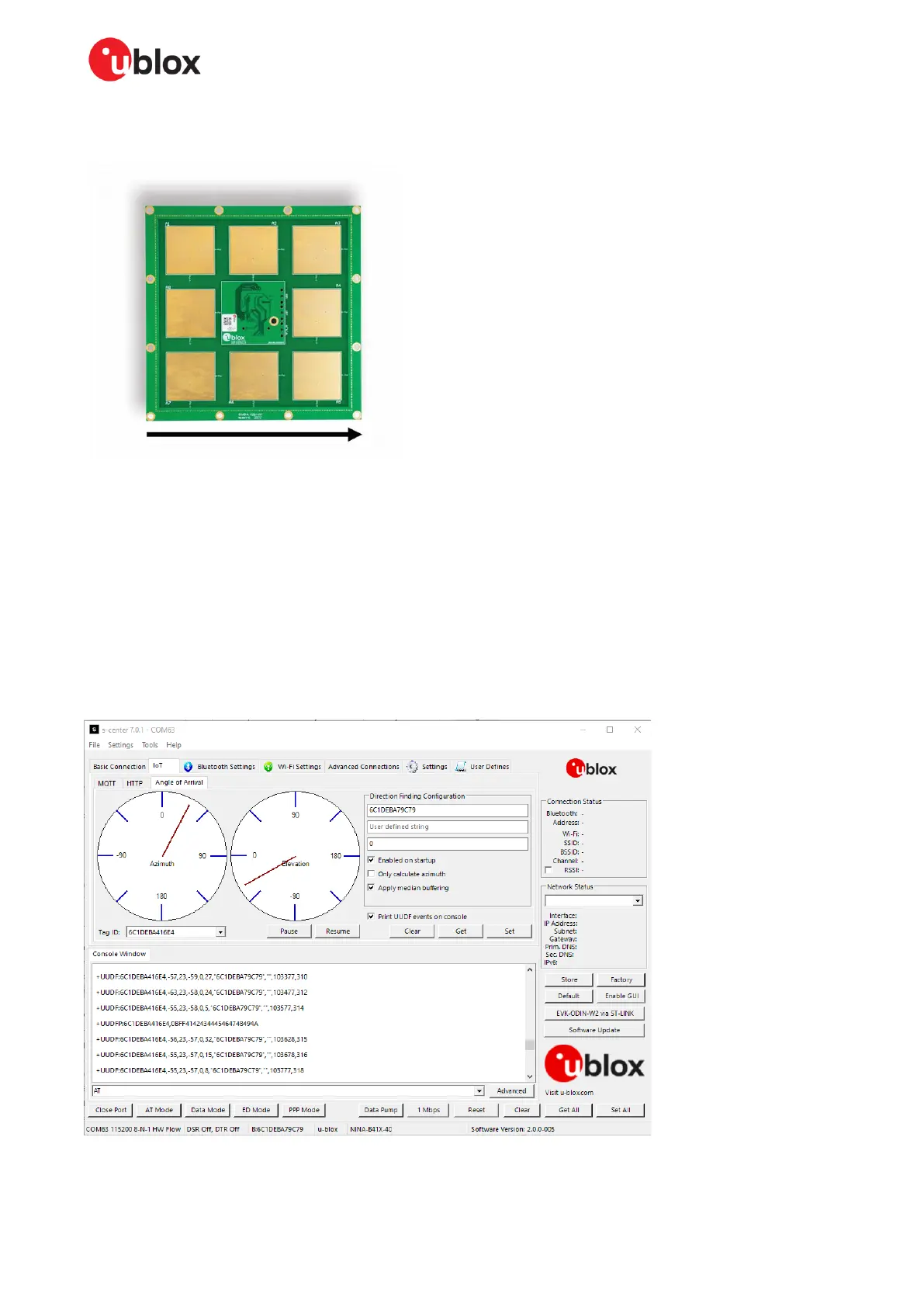

The beacon moves from a positive value (20) to a negative value (-10). The movement of the tag for
these events is shown in Figure 7.
Figure 7: Tag movement
☞ The optimal distance between anchor nodes and tags is approximately 2–15 m.
☞ A slight degradation in the accuracy of the reported angle can be expected close to the outer limits
of the angle range. To maximize accuracy, the anchor should normally point to the center of the
area of interest.
For information describing how the u-connectLocate algorithm calculates the direction or angles of
moving tags, see u-connectLocate software.
Angle events can also be visualized in the s-center [7] using the “IoT > Angle of Arrival” tab, as shown
in Figure 8.
Figure 8: s-center with Angle of Arrival tab
