Figure 24
Figure 25
UL110
UL111
27
Figure 26
Figure 27
UL113
BUSHING
UL112

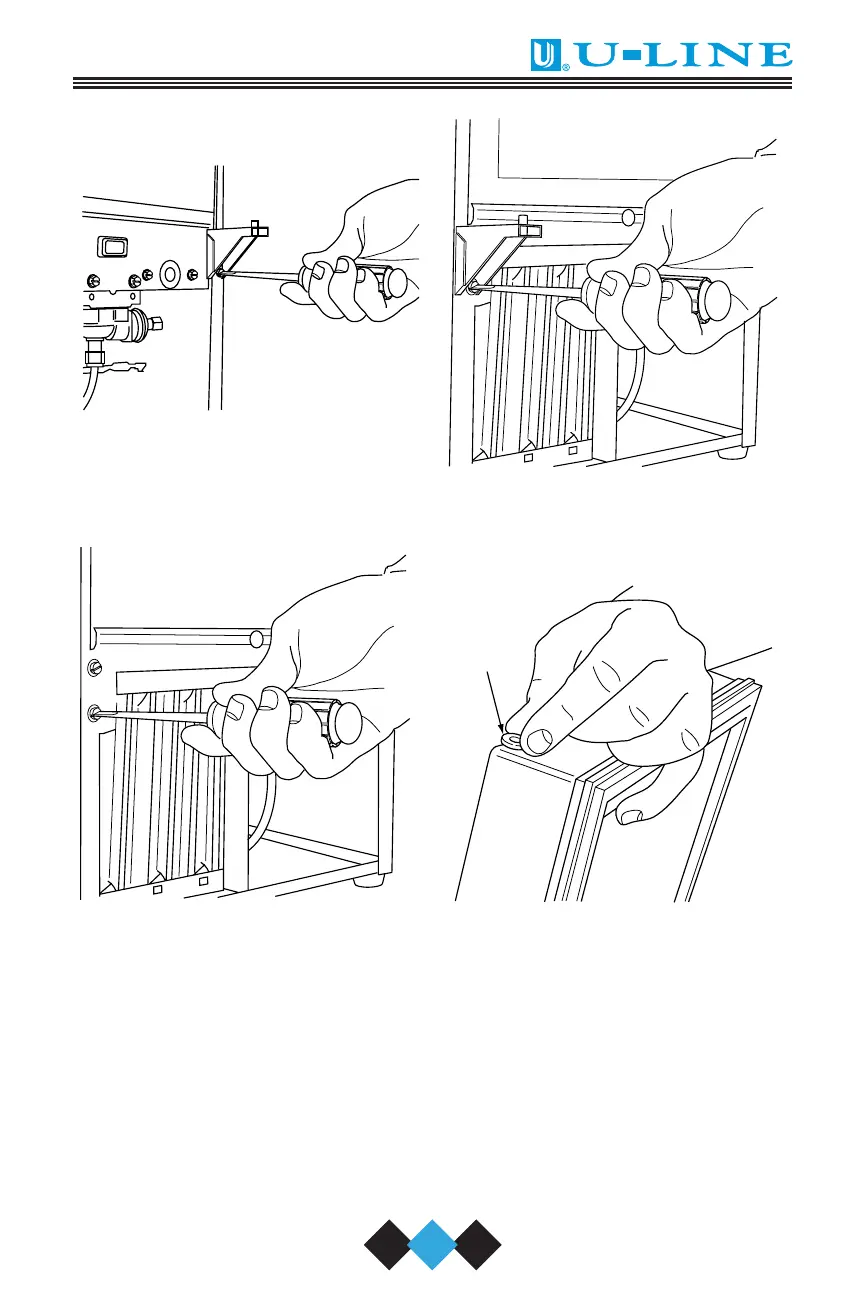

6. Relocate plastic spacer/bushing on bottom of door to opposite
side, and place door on bottom hinge pin (Figure 27). Clean out
bushing hole in door bottom with a screwdriver if needed.
7. Remove plastic hole plug from door handle and relocate on oppo-
site side (Figure 28).
30035 User Manual Body.qxd 1/5/05 8:08 AM Page 27
