ubbink UWA-2E - Connecting Wireless Remote Control; Filter Indication)

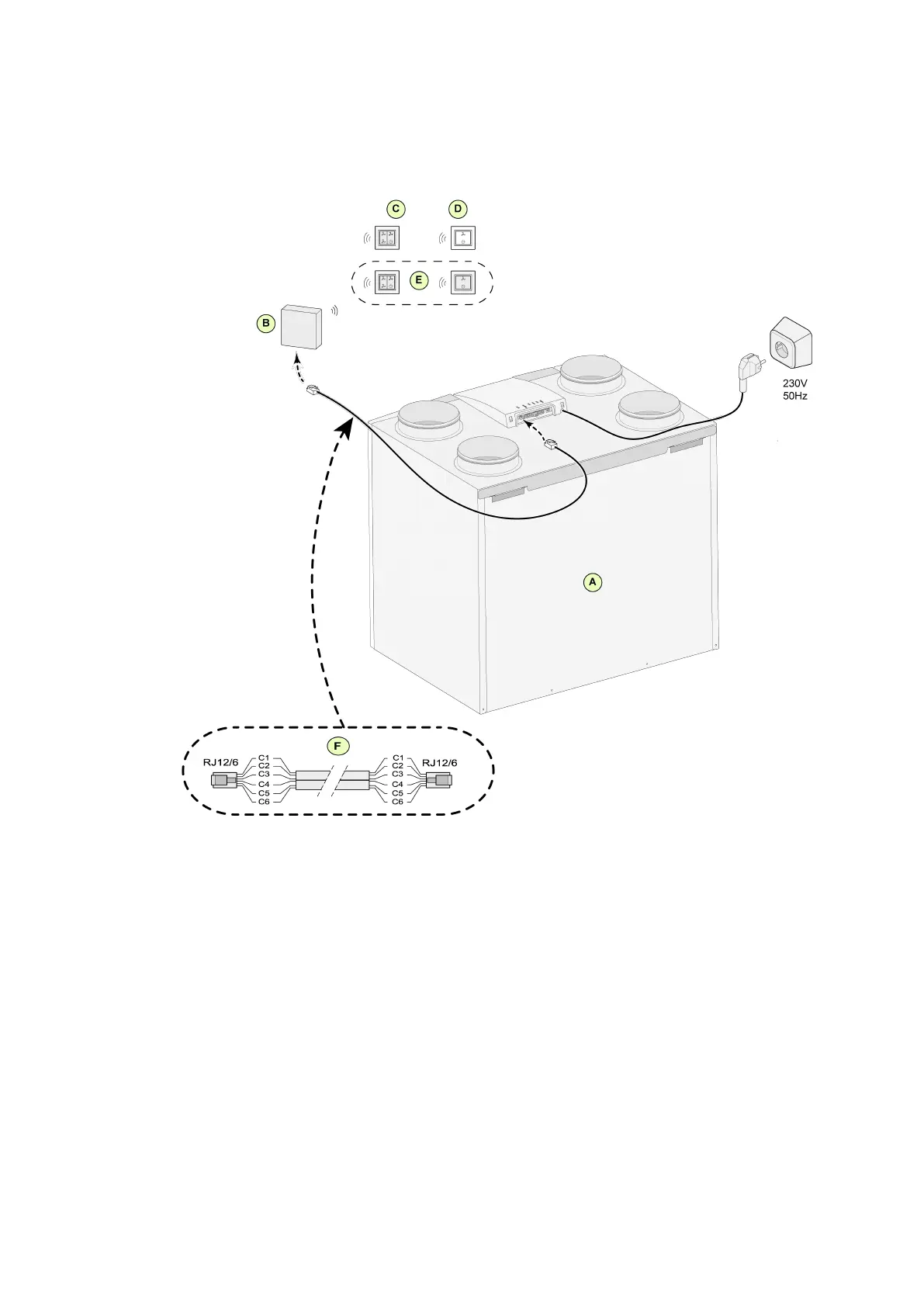

11.1.2 Connecting wireless remote control (without filter indication)
A = Ubiux Vigor appliance (For example a Ubiux Vigor appliance type 4-0)
B = Receiver for wireless remote control
C = Transmier with 4 sengs (for example kitchen)
D = Transmier with 2 sengs (for example bathroom)
E = Any addional 2- or 4-sengs transmiers (maximum of 6 transmiers can be signed on to 1 receiver)
F = Modular cable: Note: For the modular cable that is used, the “tab” of both modular connectors must be mounted facing
the mark on the modular cable. Wire colors C1 - C6 may vary dependent on the type of modular cable used.
Ubiflux Vigor W325 615743-G Ubbink / 39
