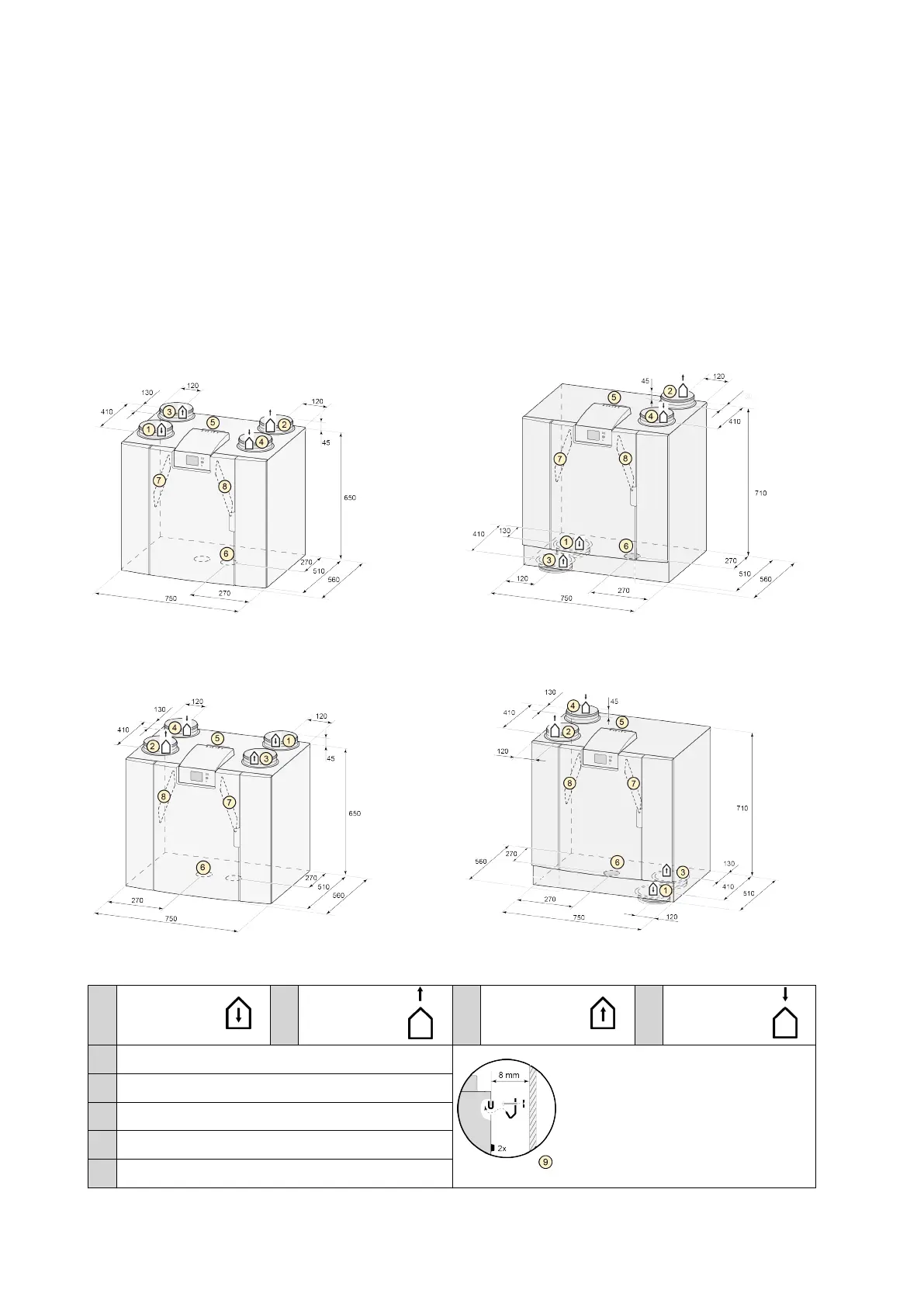

3.2 Connections and dimensions
The Ubiflux Vigor appliance is available in a left-hand and right-hand version. With a left-hand version the
“warm” connections (from dwelling 3 and to dwelling 1) are on the left-hand side of the appliance; the
condensate discharge is then mounted at the right-hand opening below the appliance. With a right-hand version
the “warm” connections (1 & 3) are on the right-hand side of the appliance.
Left-hand version
4-0 connections 2-2 connections
Right-hand version
4-0 connections 2-2 connections
All dimensions in millimeters. Diameter of all collars is 160 mm
1 To dwelling 2 To outside 3 From dwelling 4 From outside
5 Electrical
connecons
6 Siphon
connecon
7 Exhaust air
lter
8 Supply air
lter
9 Mounng
Ubiflux Vigor W325 615743-G Ubbink / 9
