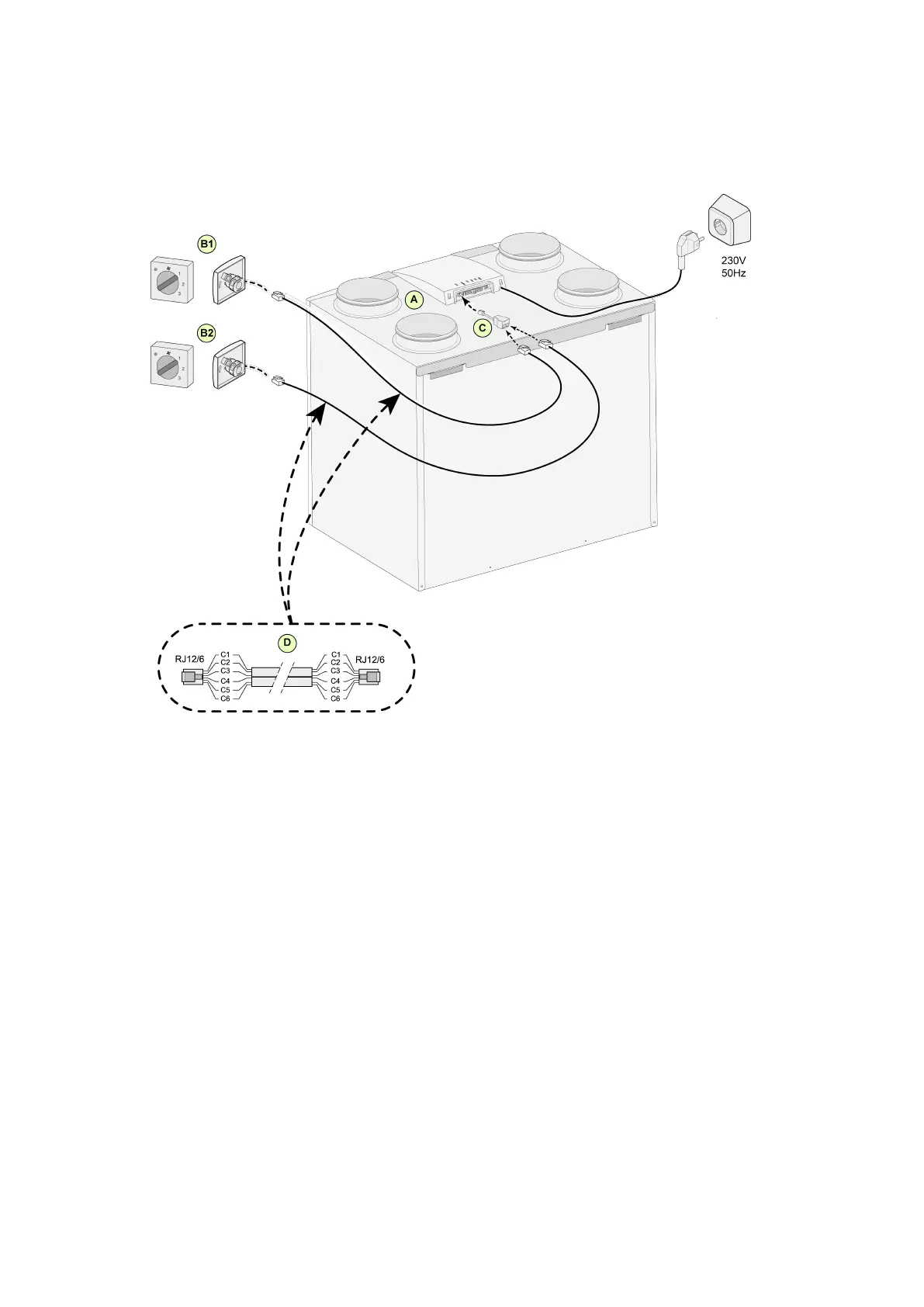

11.1.3 Connecting extra multiple switch with filter indication
A = Ubiux Vigor appliance(For example a Ubiux Vigor appliance type 4-0)
B1 = Mulple switch with lter indicaon
B2 = Extra mul switch with lter indicaon
C = Splier
D = Modular cable: Note: For the modular cable that is used, the “tab” of both modular connectors must be mounted facing
the mark on the modular cable. Wire colors C1 - C6 may vary dependent on the type of modular cable used.
Ubiflux Vigor W325 615743-G
