Ublox C099-F9P User Manual

C099-F9P - User guide
UBX-18063024 - R16 C099-F9P description Page 13 of 43
C1-Public

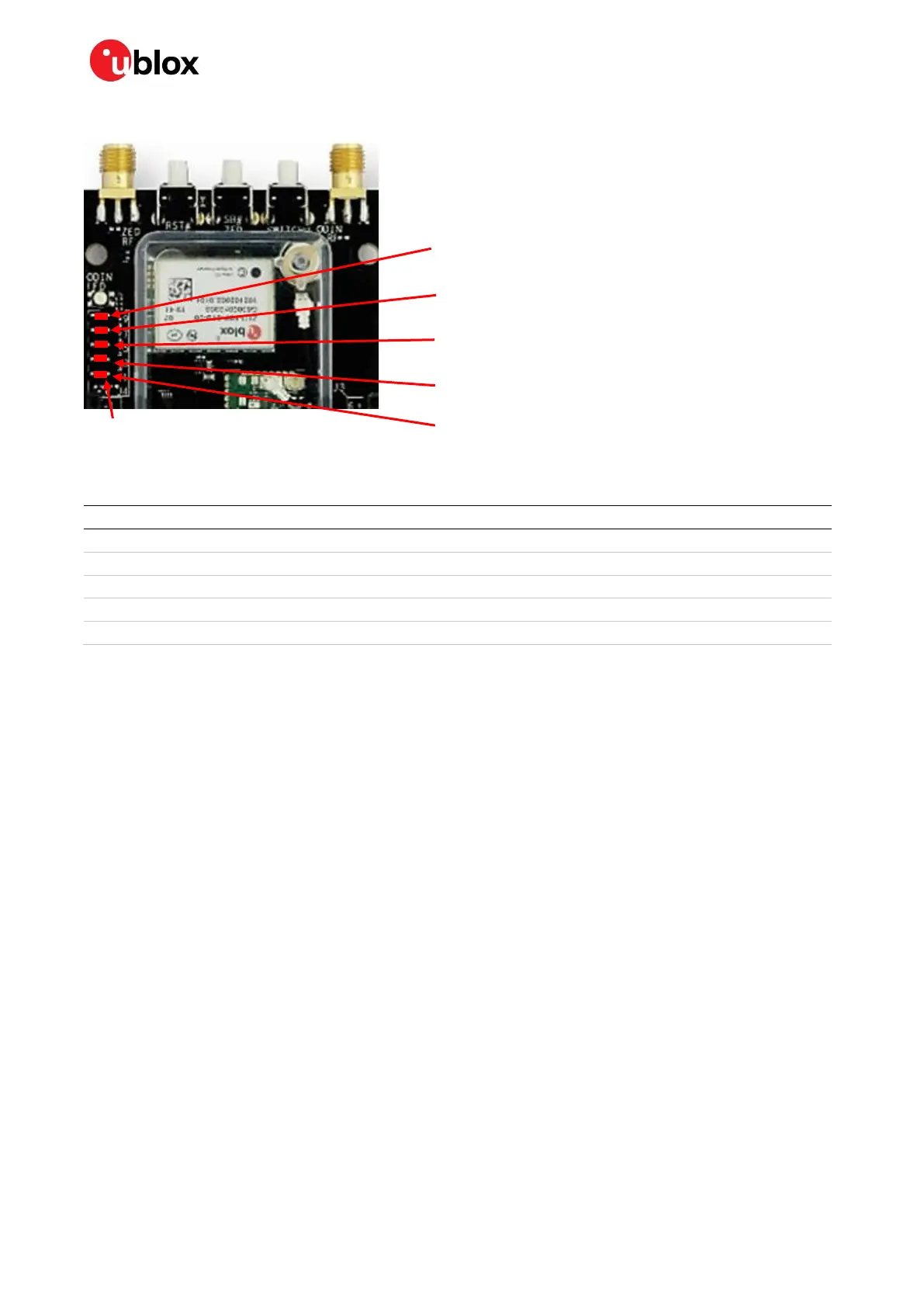

Figure 9: C099-F9P Jumper PIN details
PIN
Jumper purpose
Description
1-2
V_CURMEAS MODE
Current Measurement
3-4
ODIN UART3 MODE
Enable ZED-F9P RXD connection to ODIN UART3 (ODIN TXD3 -> ZED-F9P RXD)
5-6
UART1 MODE
Enable ZED-F9P RXD connection to ODIN UART1 (ODIN TXD -> ZED-F9P RXD)
7-8
ARDUINO MODE
Enable ZED-F9P RXD connection to Arduino shield (J9 pin1 -> ZED-F9P RXD)
9-10
SAFEBOOT_N ODIN MODE
Disable ODIN
Table 2: C099-F9P Jumpers PIN assignment
☞ Only one jumper can be placed on pins 3-4, 5-6 and 7-8 at a time. To configure the ZED-F9P, ensure
there is no jumper on pins 3-4. The jumper can be replaced after configuration.
PIN 9: SAFEBOOT_N ODIN
PIN 10: GROUND
PIN 7: 4OE_N
PIN 8: GROUND
PIN 5: 3OE_N
PIN 6: GROUND
PIN: 3: 2OE_N
PIN: 4: GROUND
PIN 1: V_CURMEAS
PIN 2: 5V MAIN
PIN 1: V_CURMEAS
PIN 2: 5V MAIN
PIN 1
