C099-F9P - User guide
UBX-18063024 - R16 Using C099-F9P Page 14 of 43
C1-Public
4 Using C099-F9P
The ZED-F9P module is shipped with the latest HPG firmware. Check the latest ODIN-W2 Mbed FW
availability and information on the FW update procedures in section 7 Firmware update.
4.1 Powering the board
The board can be powered from a variety of sources:
• The USB connection
• A 3.7 V Li-Po battery via a JST connector
• An external 5-12 V DC source via a 2.1-mm connector; center pin V+. Also, the included USB-to-
DC plug adapter cable can be used to provide an additional USB power source.

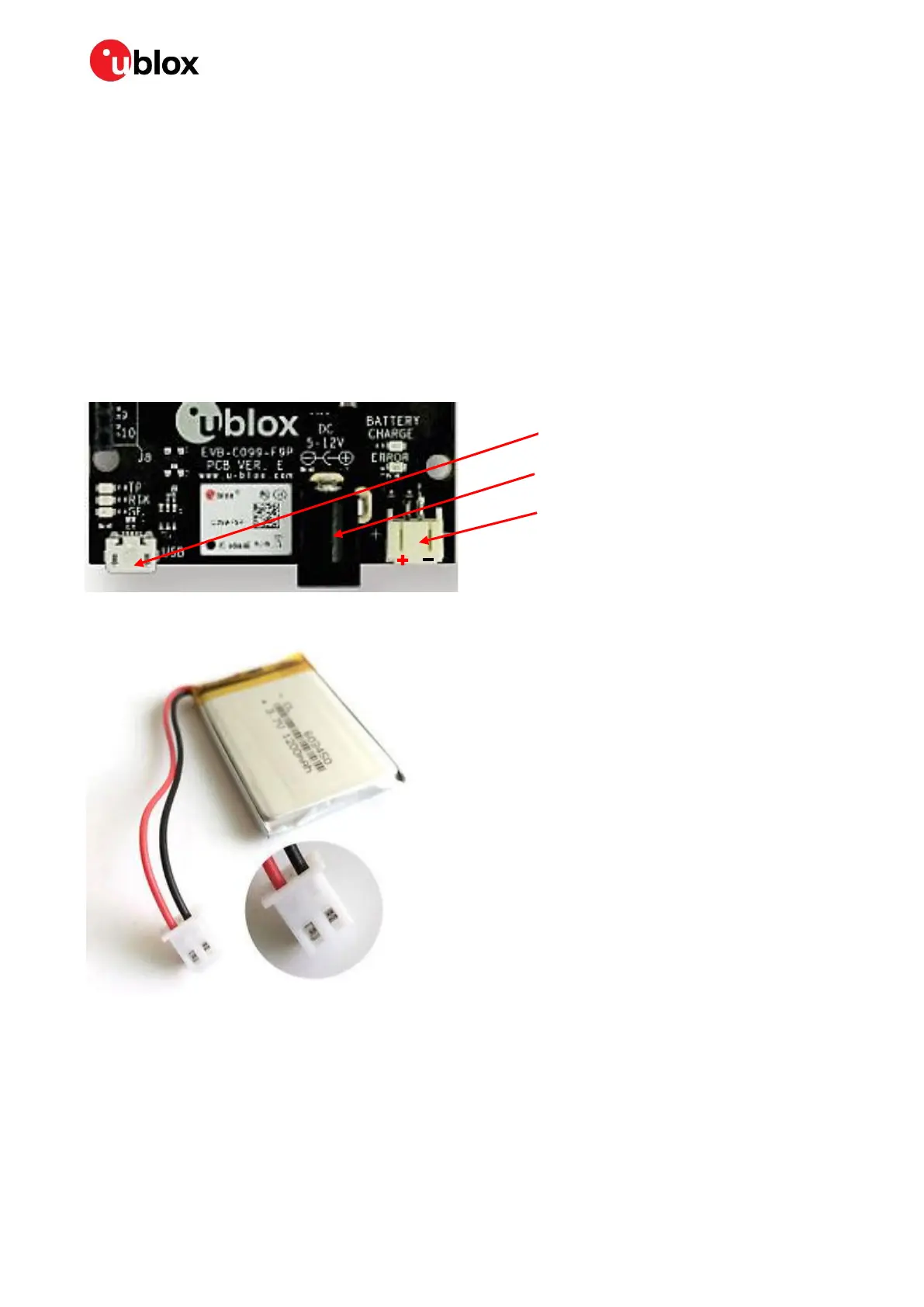

Figure 10: Power connections
Figure 9: Typical single cell 3.7 V Li-Po battery with JST connector
⚠ Follow all published safety advice for using bare cell Li-Po batteries while charging. Protect the
batteries from mechanical damage. There is a risk of fire if the advice is not followed.
⚠ Ensure correct polarity on the JST battery connector. If the polarity is incorrect, the incorrect
polarity LED is on. Due to the polarity protection feature, the supply rails are not powered.
All supply connections are fed via a Schottky diode to the main supply bus to allow multiple sources
to be connected in parallel. The Li-Po battery is charged from either the DC power source or the USB
