ZED-F9K-Integration manual
5. Set the configuration by clicking the Send button at the bottom of the message tree view.
Remember to set the u-center baud rate to match the value set in the receiver.

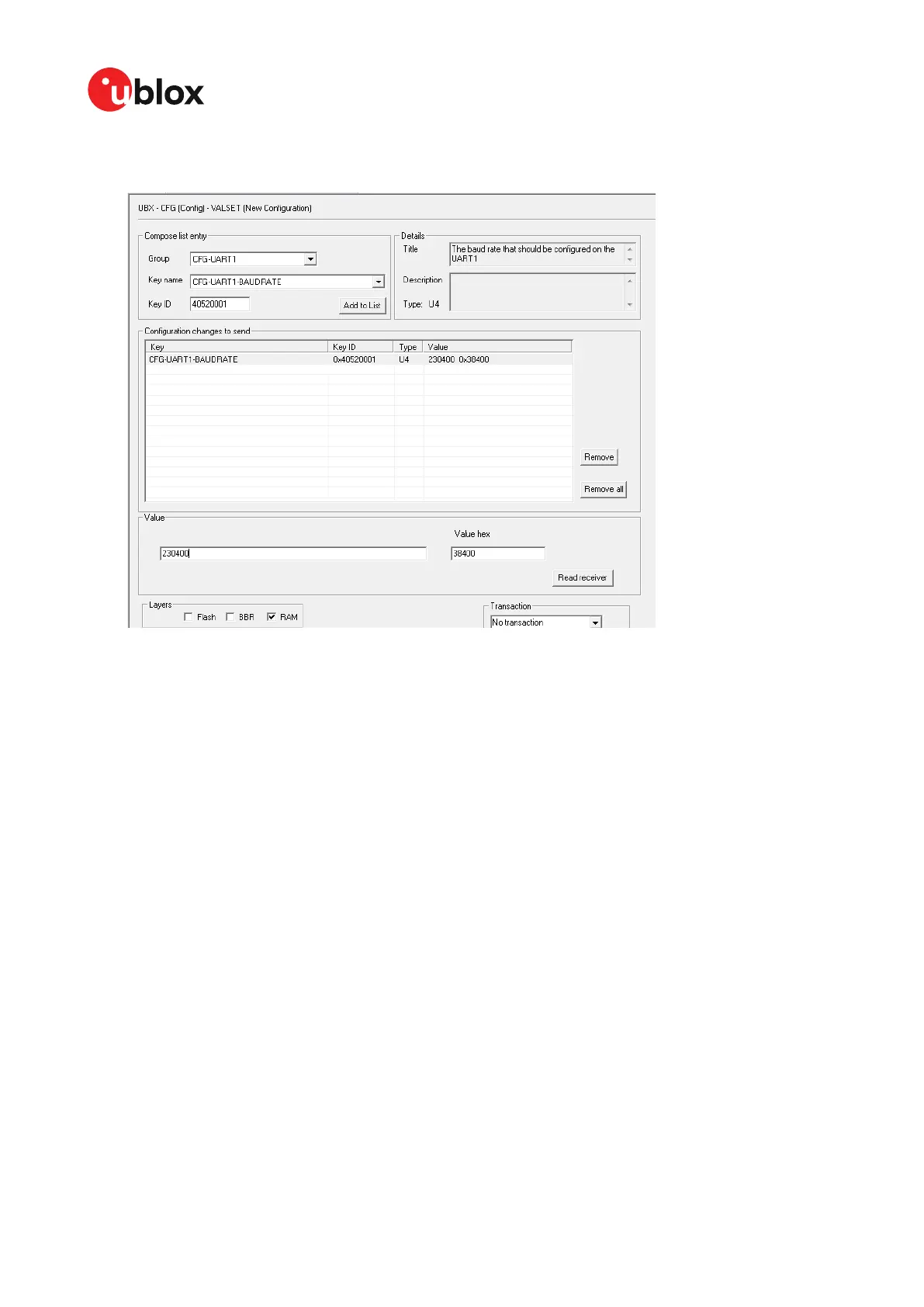

Figure 52: u-center UBX-CFG-VALSET message view for setting the CFG-UART1-BAUDRATE configuration item
that controls the baudrate of UART1
Next, some UBX example messages are configured to enable viewing the receiver status.
1. Select Group: CFG-MSGOUT, Key name: CFG-MSGOUT-UBX, and select the UART1 required
messages.
2. Add each message to the list, setting the value of each to 1.
UBX-20046189 - R01
Appendix Page 100 of 105
C1-Public Early production information
