ZED-F9R-Integration manual

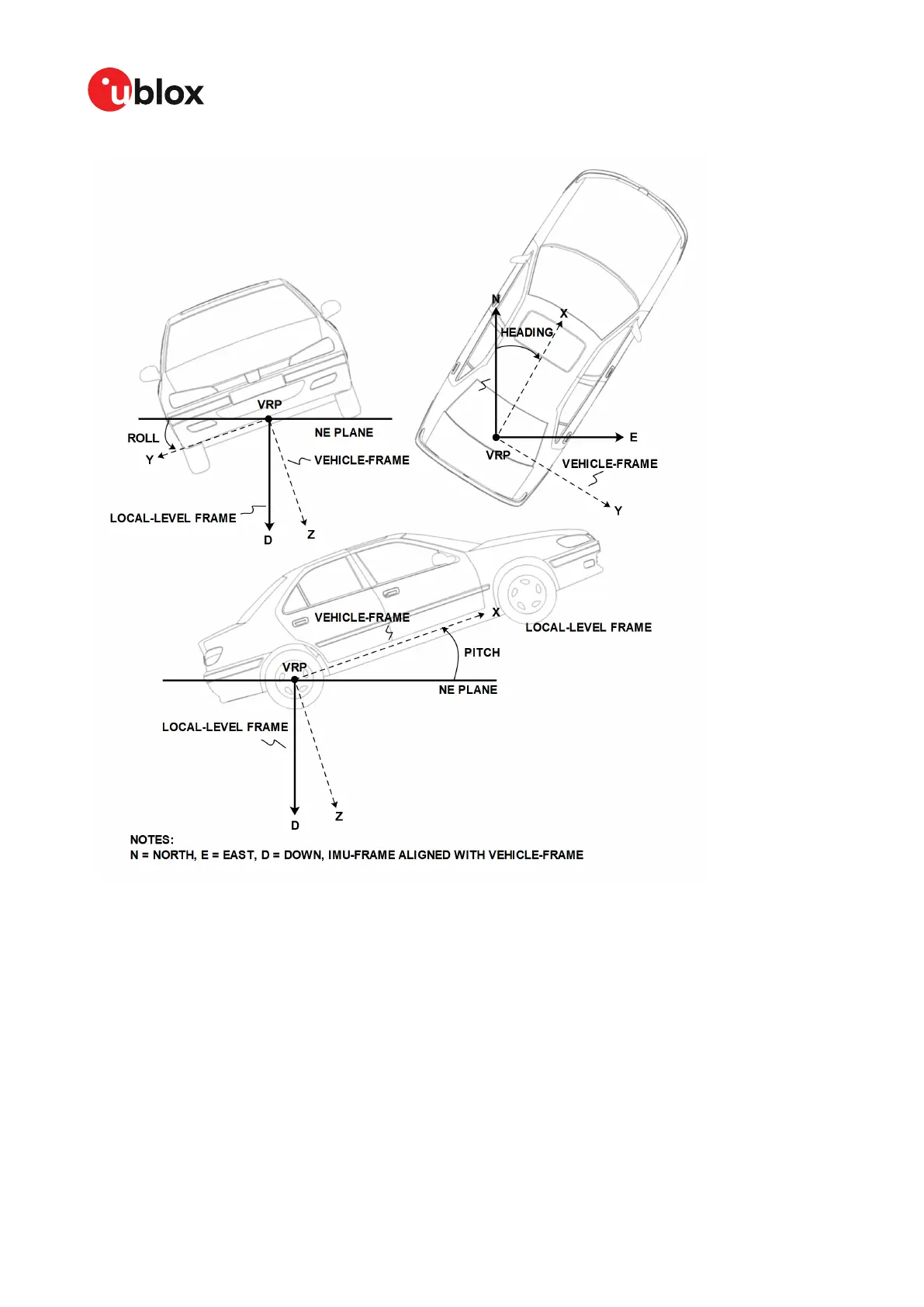

Figure 6: Vehicle attitude output
The order of the sequence of rotations around the navigation axes defining the vehicle attitude
matrix in terms of vehicle attitude angles is illustrated below:
UBX-20039643 - R06
3 Receiver functionality Page 37 of 119
C1-Public
