ZED-F9R-Integration manual
2.2 Architecture
The ZED-F9R receiver provides all the necessary RF and baseband processing to enable multi-band,
multi-constellation operation. The block diagram below shows the key functionality.
2.2.1 Block diagram

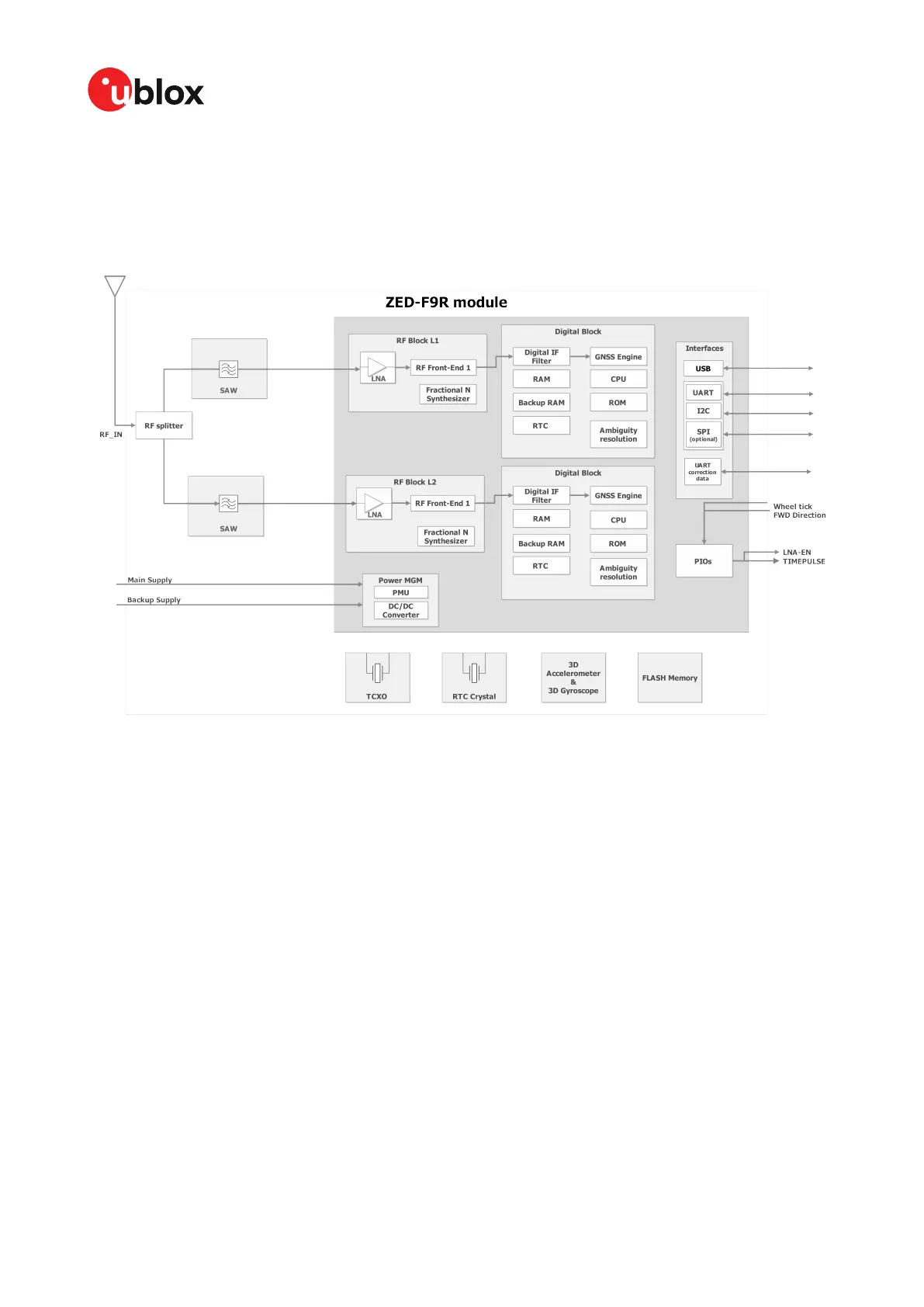

Figure 1: ZED-F9R block diagram
UBX-20039643 - R06
2 System description Page 9 of 119
C1-Public
