ZED-F9R-Integration manual
High temperature drift and air vents can affect the GNSS performance. For best
performance, avoid high temperature drift and air vents near the receiver.
4.8.3 Package footprint, copper and paste mask
Copper and solder mask dimensioning recommendations for the ZED-F9R module packages are
provided in this section.
These are recommendations only and not specifications. The exact copper, solder and paste
mask geometries, distances, stencil thickness and solder paste volumes must be adapted
to the specific production processes (e.g. soldering etc.) of the customer.
Refer to the applicable data sheet [1] for the mechanical dimensions.
4.8.3.1 Footprint

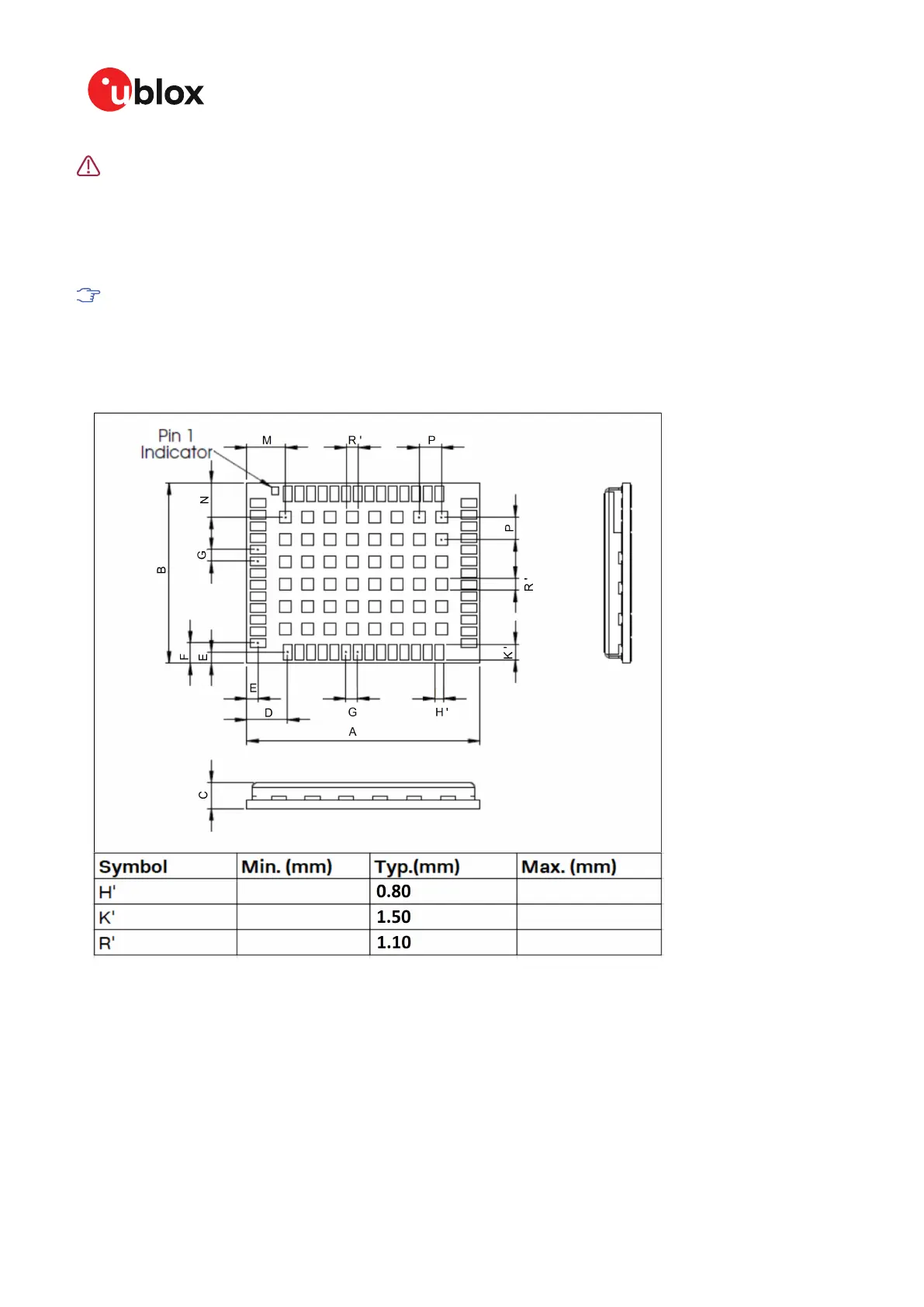

Figure 45: ZED-F9R suggested footprint (i.e. copper mask)
UBX-20039643 - R06
4 Design Page 99 of 119
C1-Public
