3.12.1.6 SBAS
For SBAS (L1C/A) signals each reported subframe contains eight 32-bit data words to deliver the
250 bits transmitted in each SBAS data block.
The eight words are arranged as follows:

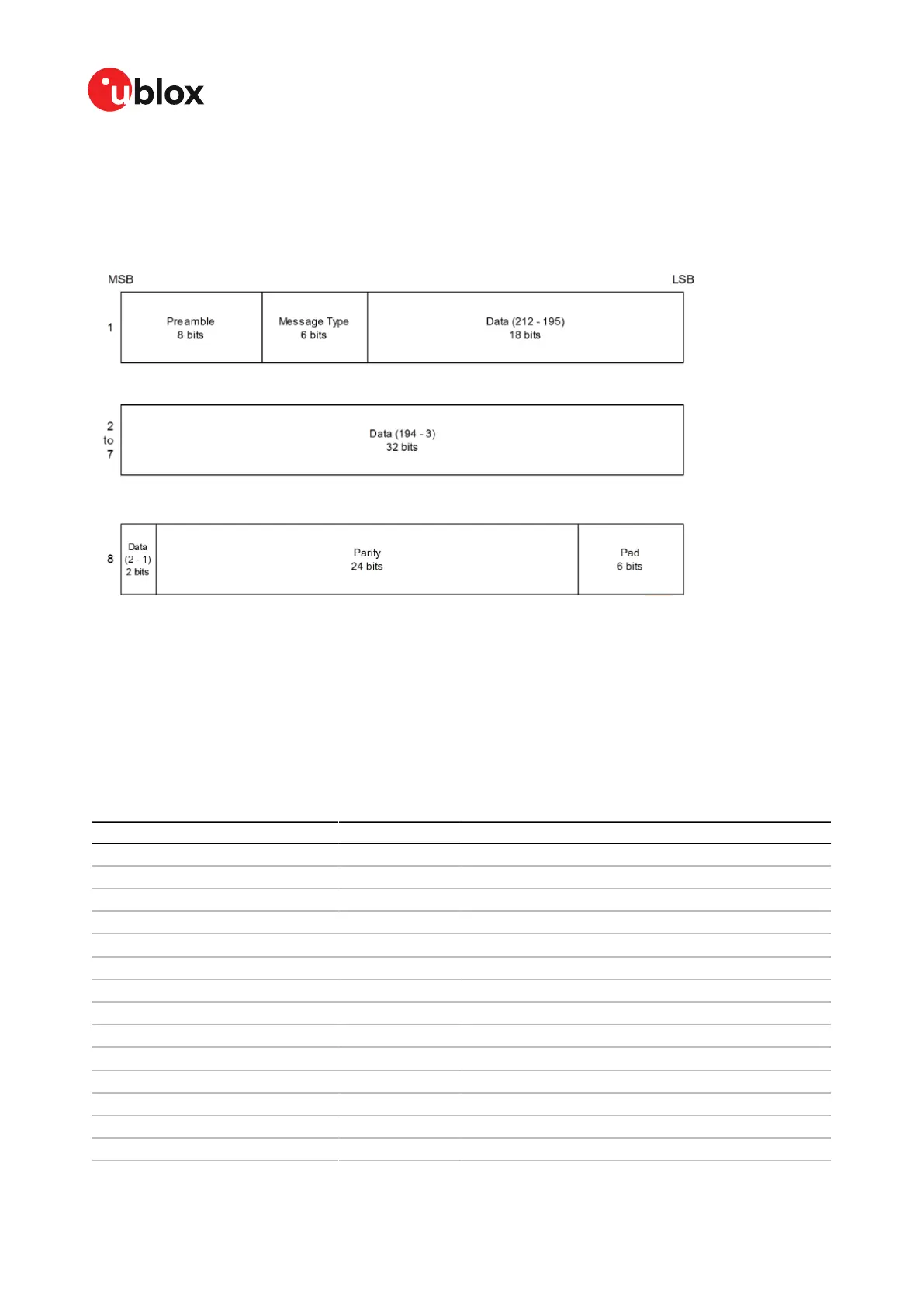

Figure 33: SBAS subframe words
3.12.1.7 QZSS
The structure of the data delivered by QZSS L1C/A signals is effectively identical to that of GPS
(L1C/A). Similarly the structure of the data delivered by the QZSS L2C signal is effectively identical
to that of GPS (L2C).
3.12.1.8 Summary
The following table gives a summary of the different data message formats reported by the UBX-
RXM-SFRBX message:
GNSS Signal gnssId sigId numWords period
GPS L1C/A 0 0 10 6s
GPS L2CL 0 3 10 12s
GPS L2CM 0 4 10 12s
SBAS L1C/A 1 0 9 1s
Galileo E1 B 2 1 8 2s
Galileo E5b I 2 5 8 2s
BeiDou B1I D1 3 0 10 6s
BeiDou B1I D2 3 1 10 0.6s
BeiDou B2I D1 3 2 10 6s
BeiDou B2I D2 3 3 10 0.6s
QZSS L1C/A 5 0 10 6s
QZSS L2CM 5 4 10 12s
QZSS L2CL 5 5 10 12s
GLONASS L1OF 6 0 3 2s
UBX-20039643 - R06
3 Receiver functionality Page 83 of 119
