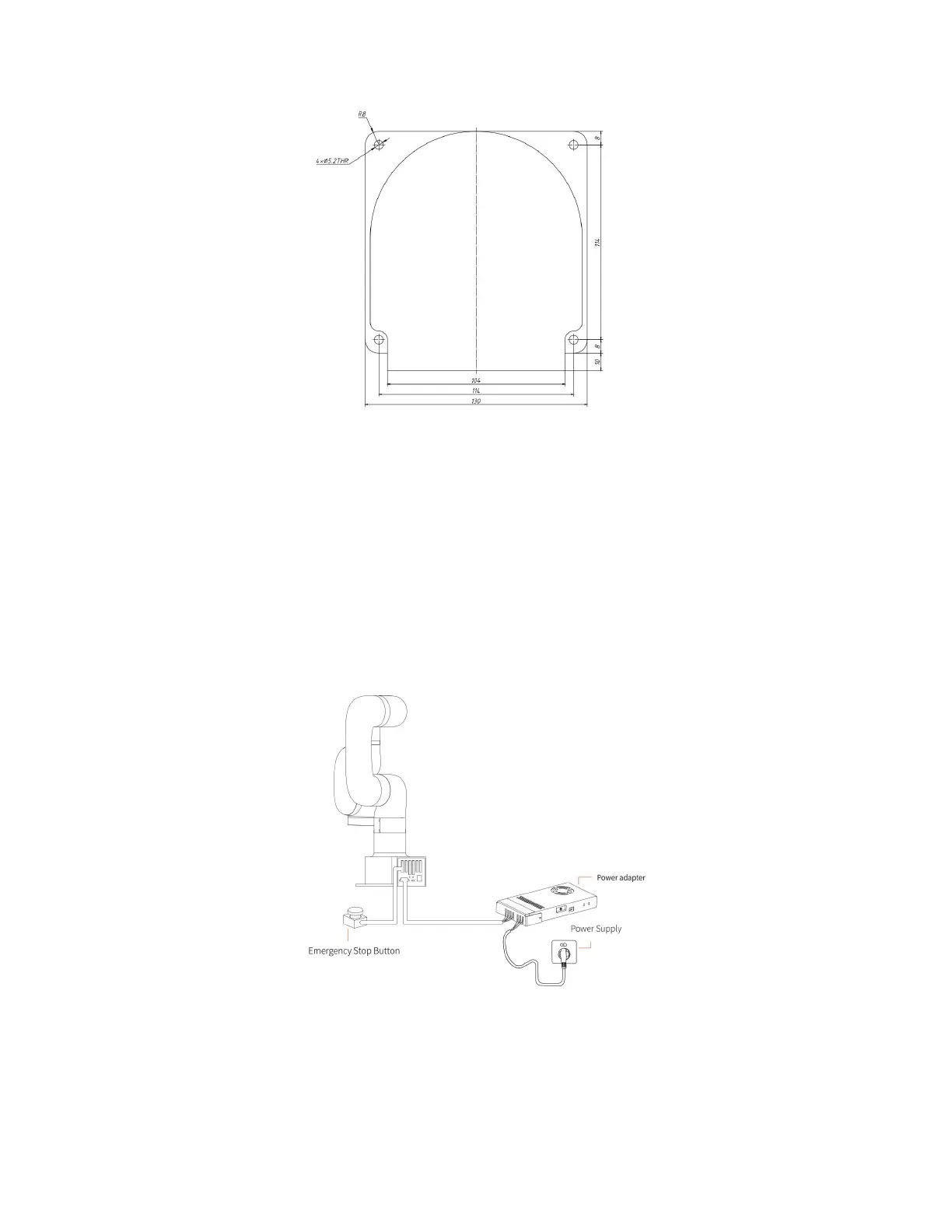

Robot Base Mounting (unit: mm)
1.2.2.3. Connect the Power Adapter
Plug the connector of the Robotic Arm Power Supply into the interface of
the Robotic Arm. The connector is a fool proof design. Please do not
unplug and plug it violently.
1.2.2.4. Connect the network cable
Plug the network cable into the interface marked LAN of the robot, and
plug the other end of the network cable into the computer.
