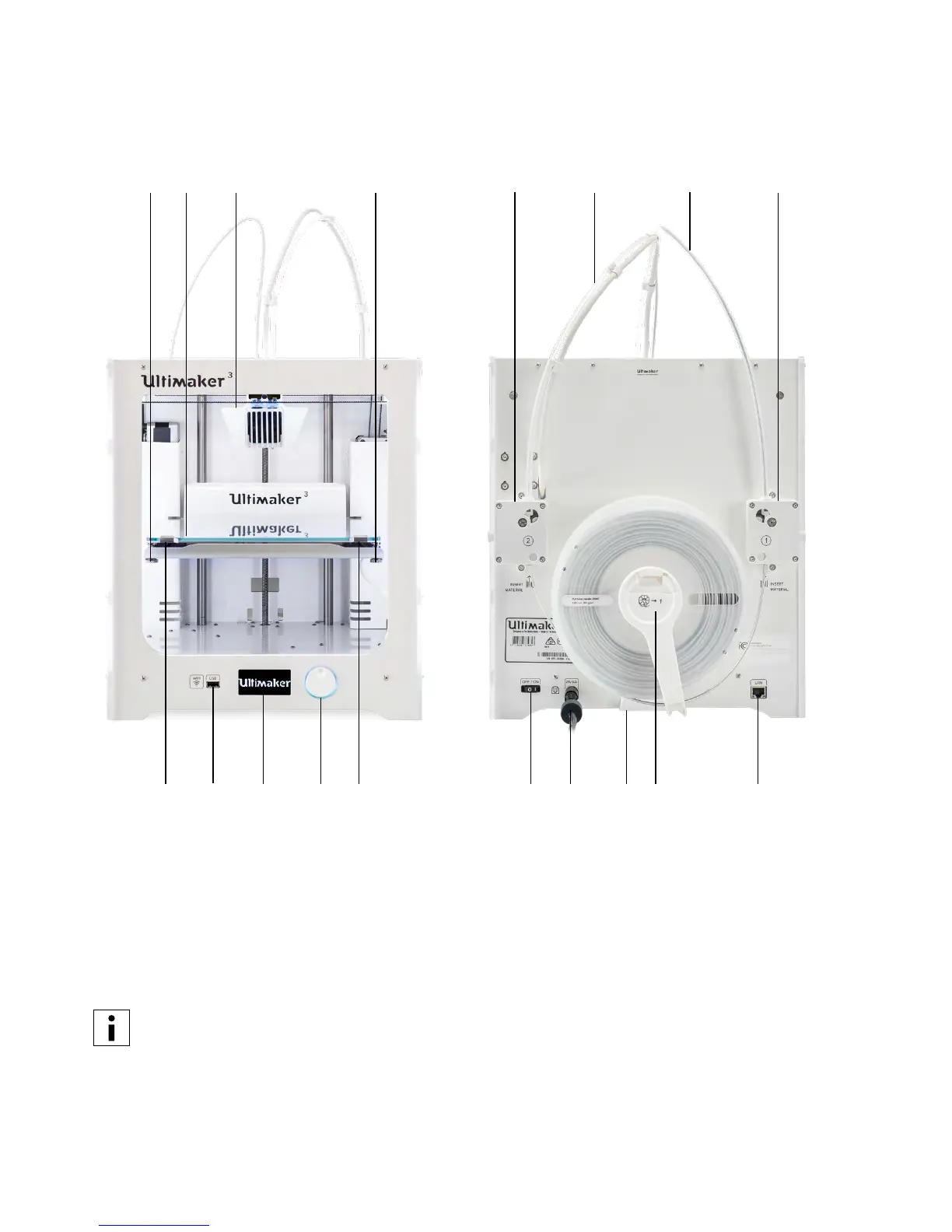

2.1 Main components Ultimaker 3 or Ultimaker 3 Extended
The model exposed is the Ultimaker 3. The main components of the Ultimaker 3 Extended are the same and on the
exact same position. The only difference between the two printers is the height of the housing. See Specifications
for the different dimensions.
1. Build plate
2. Print head
3. Knurled nuts
4. Build plate clamps
5. Push/rotate button
6. Display
7. USB port
8. Feeder 2
9. Bowden tubes
10. Feeder 1
11. Ethernet port
12. Double spool holder with NFC cable
13. Cable cover
14. Power socket and cable
15. Power switch
1
2 3
3
4
7
4
8 9 9 10
6 5 11121315 14

Ultimaker 3 Extended Specifications

General

Build Volume	215 x 215 x 300 mm
Layer Resolution	20 - 200 microns
Print Technology	Fused Filament Fabrication (FFF)
Filament Diameter	2.85 mm
Operating System	Windows, MacOS, Linux
Print Speed	Up to 24 mm³/s
Software	Ultimaker Cura
Weight	11.3 kg
Print Head	Dual extrusion
Nozzle Diameter	0.4 mm
Supported Materials	PLA, ABS, Nylon, CPE, PVA
Connectivity	USB, Ethernet, Wi-Fi
Display	4.7" color touchscreen
Power Requirements	100 - 240 V / 50 - 60 Hz
Travel Speed	Up to 300 mm/s
