Ultimaker 3 - Main Components Overview

10

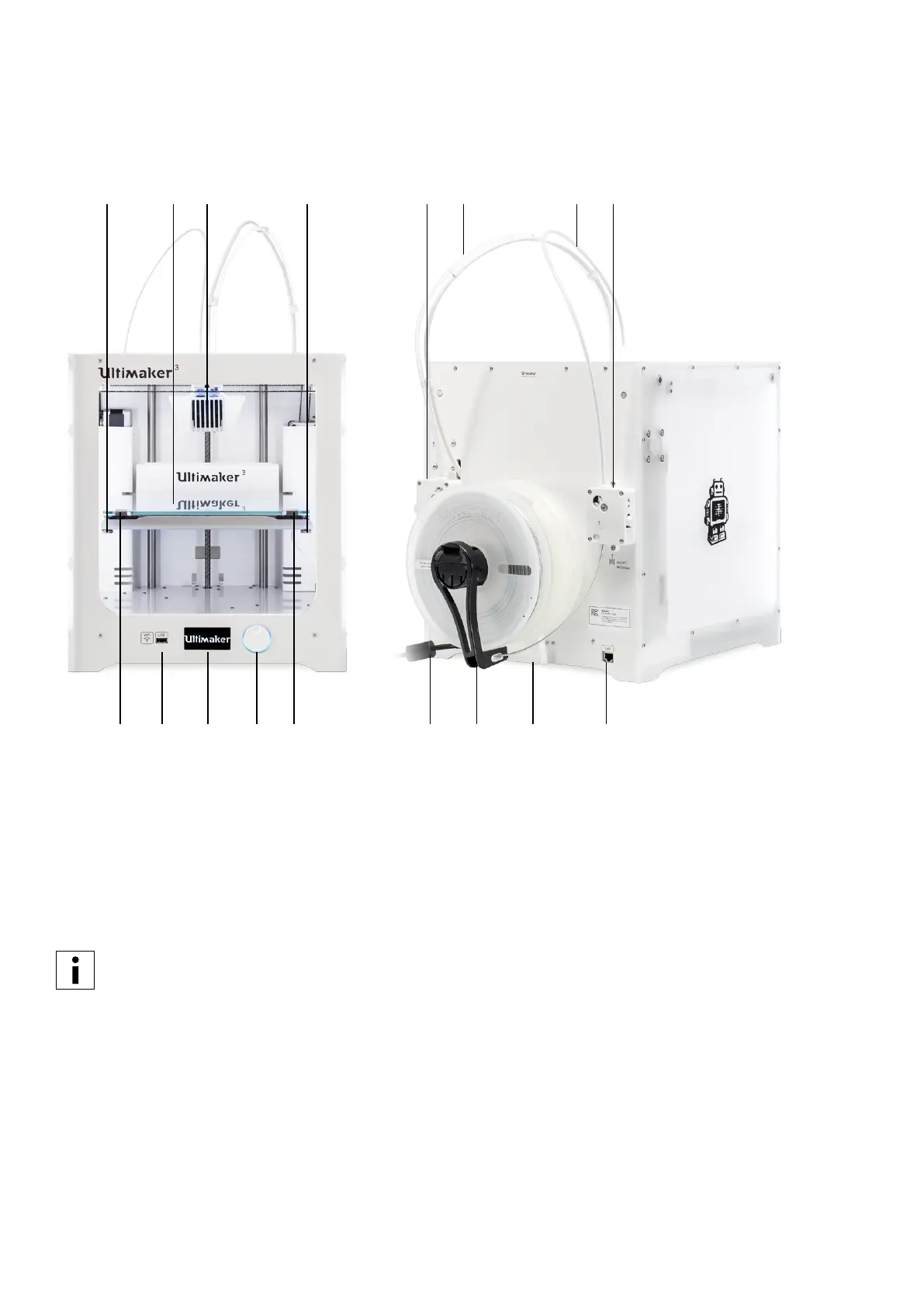

Main components Ultimaker 3 or Ultimaker 3 Extended
The model exposed is the Ultimaker 3. The main components of the Ultimaker 3 Extended are the same and on the
exact same position. The only difference between the two printers is the height of the housing. See Specifications
for the different dimensions.
1. Build plate
2. Print head
3. Build plate screws
4. Build plate clamps
5. Push/rotate button
6. Display
7. USB socket
8. Feeder 2
9. Bowden tubes
10. Feeder 1
11. Ethernet port
12. Cable cover
13. Double spool holder with NFC cable
14. Power cable
1
2 3
3
45674
8 9 9 10
11121314
