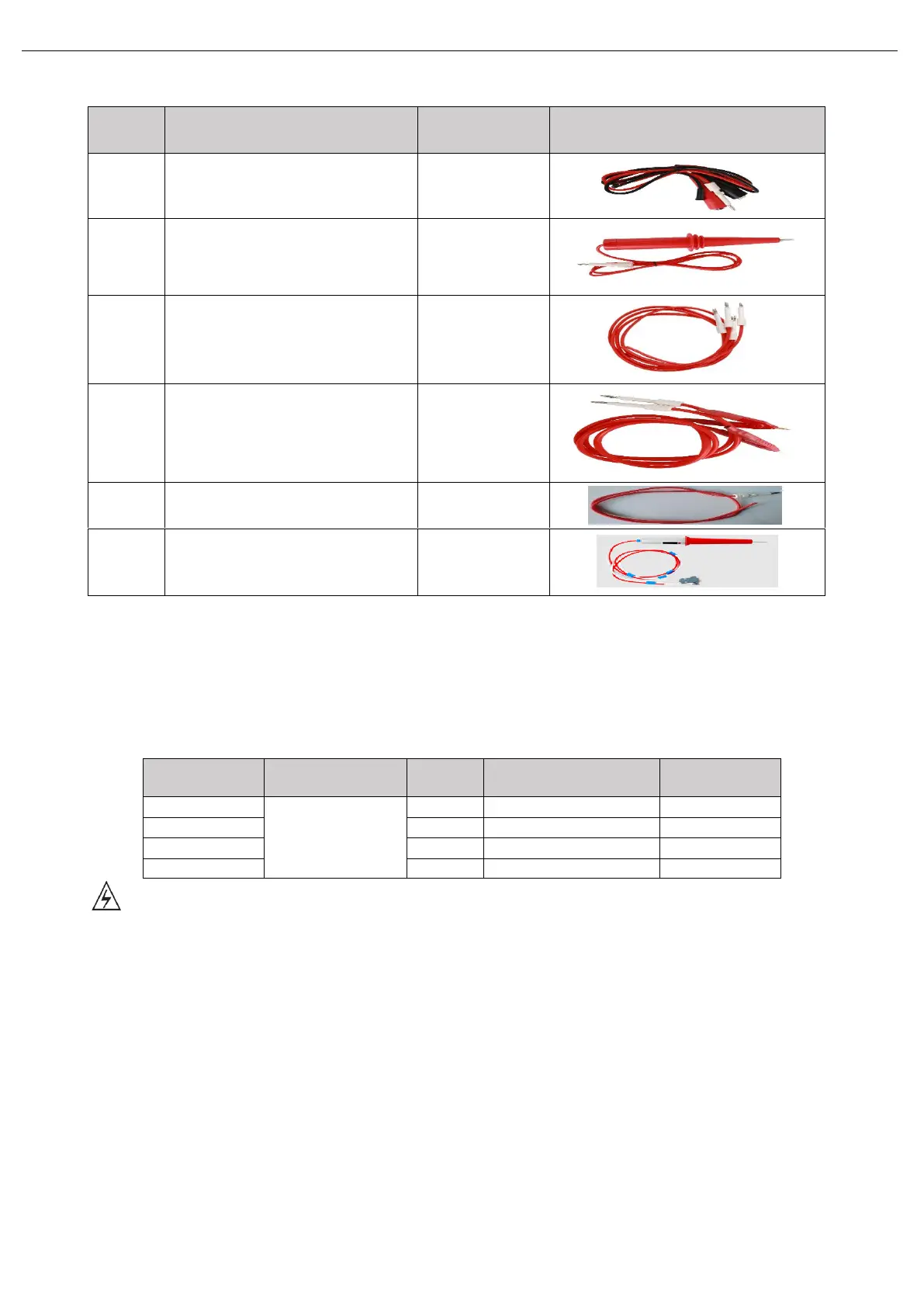

3. Introduction of test wire
Model
Name
Standard/Option
/
A pair of high voltage test clips
Standard
/
High voltage test probe
Standard
/
Double head high voltage test wire
(no clips)
Standard
(multiple
channels)
/
Double head high voltage test wire
(with clips)
Standard
(multiple
channels)
/
Single head high voltage test wire
(no clips)
Option
UT-L62
Remote high voltage test wire
(support remote boot)
Option
3.2 Power Requirements
This instrument is designed for use under classⅡvoltage. Do not use under overvoltage class Ⅲ and
Ⅳ.
Before start the power, please make sure that power voltage is conform to AC SELECTOR on the rear
panel of the instrument.
Input Voltage
Frequency
Range
Fuse
Model
Rated Power
110 V
47-63 Hz
5 A
UT5320R+/S4A/S8A
400 VA
110 V
3 A
UT5310A/D/R+
300 VA
220 V
3.15 A
UT5320R+/S4A/S8A
400 VA
220 V
2 A
UT5310A/D/R+
300 VA
Warning:
• In order to prevent the electric shock, please connect the power groud in properly. If user replace the
power cable, please make sure that the power ground is reliable connected.
• In order to prevent the electric shock, turn off the power and plug the power cable before checking or
replacing the fuse.
3.3 Operating Environment
UT5300X+ and UT5320R-SxA Series operating environment
Temperature：10C～40C
Humidity：10%-80%RH
