Model UT71A/B/C/D/E: OPERATING MANUAL
Selecting the Range
Press RANGE to select either a fixed range or the
autorange feature.
Autoranging (AUTO lighted in the display) always comes
on initially when you select a new function. In autorange,
the Meter selects the lowest input range possible,
ensuring that the reading appears with the highest
available resolution.
If AUTO is already on, press RANGE to enter MANUAL
ranging in the present range. You can then select the
next manual range each time you press RANGE.
Return to autoranging by press EXIT.
Note that there is no MANUAL ranging on REL feature.
Understanding the Display
Display features are shown in Figure 2-2 and described
in Table 2-4.

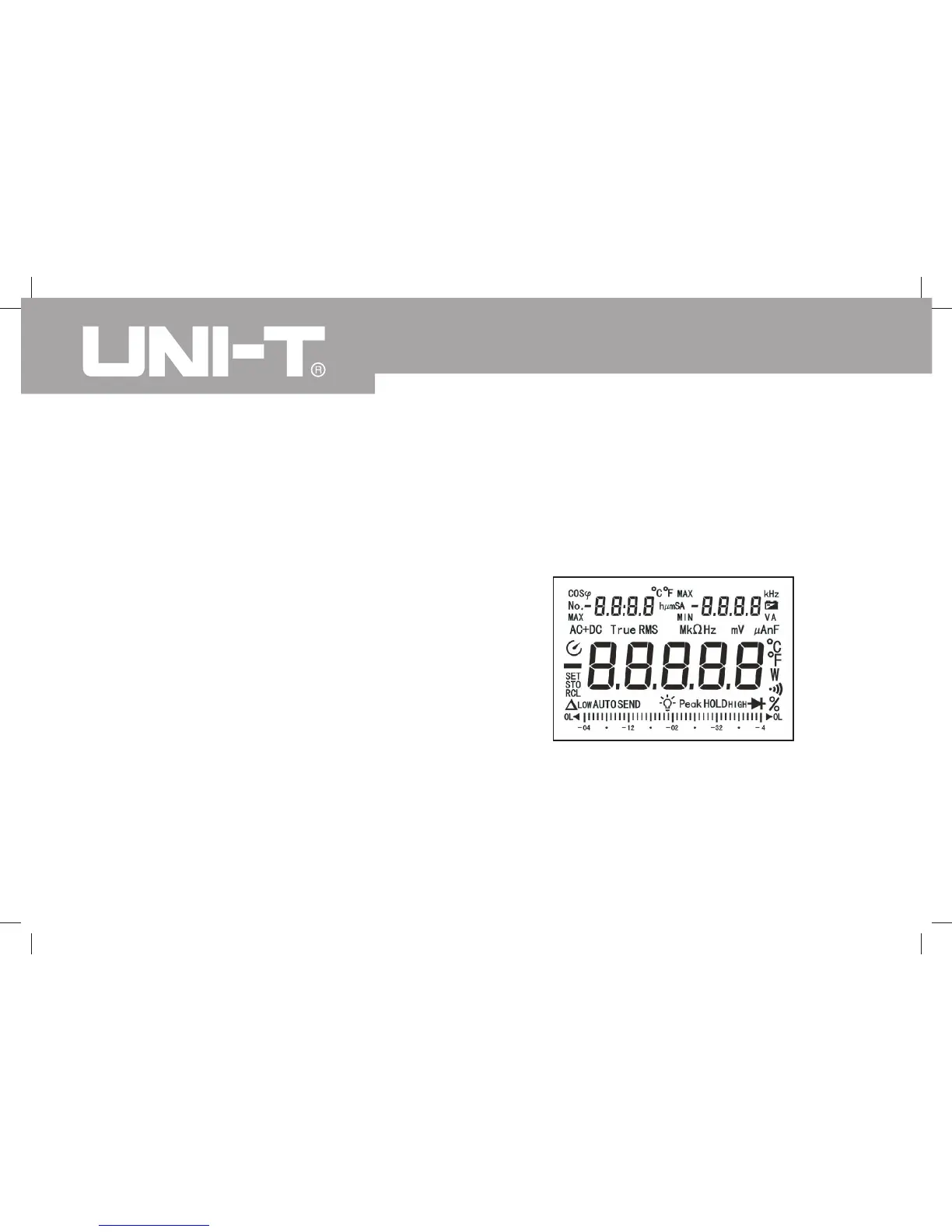

Figure 2-2. Display Features

UNI-T UT71A Specifications

General

Data hold	Yes
Product type	Digital multimeter
Frequency range	0.02 - 200000 kHz
AC current range	0.2 - 10 A
AC voltage range	2 - 1000 V
DC voltage range	0.2 - 1000 V
Capacitance range	20 - 20000 nF
Statistic function	Maximum, Minimum
Basic accuracy (frequency)	0.1%+15
Basic accuracy (DC current)	0.2%+20
Basic accuracy (DC voltage)	0.1%+8
Basic accuracy (resistance)	0.5%+20
Basic accuracy (capacitance)	1.5%+20
Dimensions (WxDxH)	93 x 40 x 200 mm
Battery voltage	9 V

Weight and Dimensions

Weight	384 g
