UNI-T UT71A User Manual

32
Model UT71A/B/C/D/E: OPERATING MANUAL
B. Measuring Currents
Warning
If the fuse burns out during measurement, the Meter
may be damaged or the operator himself may be hurt.
To avoid possible damage to the Meter or to the
equipment under test, check the Meter's fuses before
measuring current. Use proper terminals, function,
and range for the measurement. Never place the
testing leads in parallel with any circuit or component
when the leads are plugged into the current terminals.

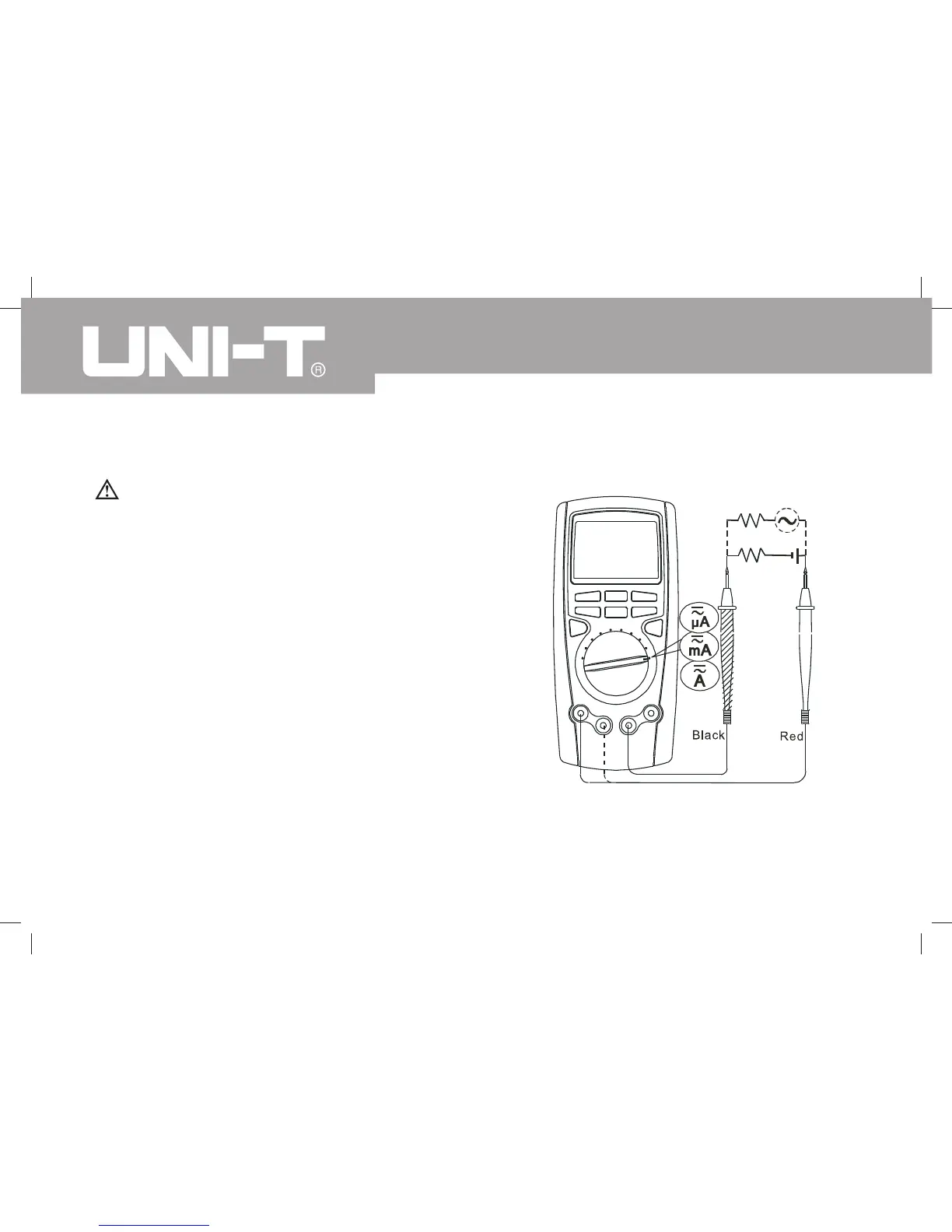

Figure 3-2. Currents Measurement
To measure AC or DC current, set up the Meter as
Figure 3-2 and proceed as follows:

UNI-T UT71A Specifications

General

Data hold	Yes
Product type	Digital multimeter
Frequency range	0.02 - 200000 kHz
AC current range	0.2 - 10 A
AC voltage range	2 - 1000 V
DC voltage range	0.2 - 1000 V
Capacitance range	20 - 20000 nF
Statistic function	Maximum, Minimum
Basic accuracy (frequency)	0.1%+15
Basic accuracy (DC current)	0.2%+20
Basic accuracy (DC voltage)	0.1%+8
Basic accuracy (resistance)	0.5%+20
Basic accuracy (capacitance)	1.5%+20
Dimensions (WxDxH)	93 x 40 x 200 mm
Battery voltage	9 V

Weight and Dimensions

Weight	384 g
