UNI-T UTG1000X Series User Manual

User’s Manual UTG1000X Series
Instruments.uni-trend.com 35 / 74

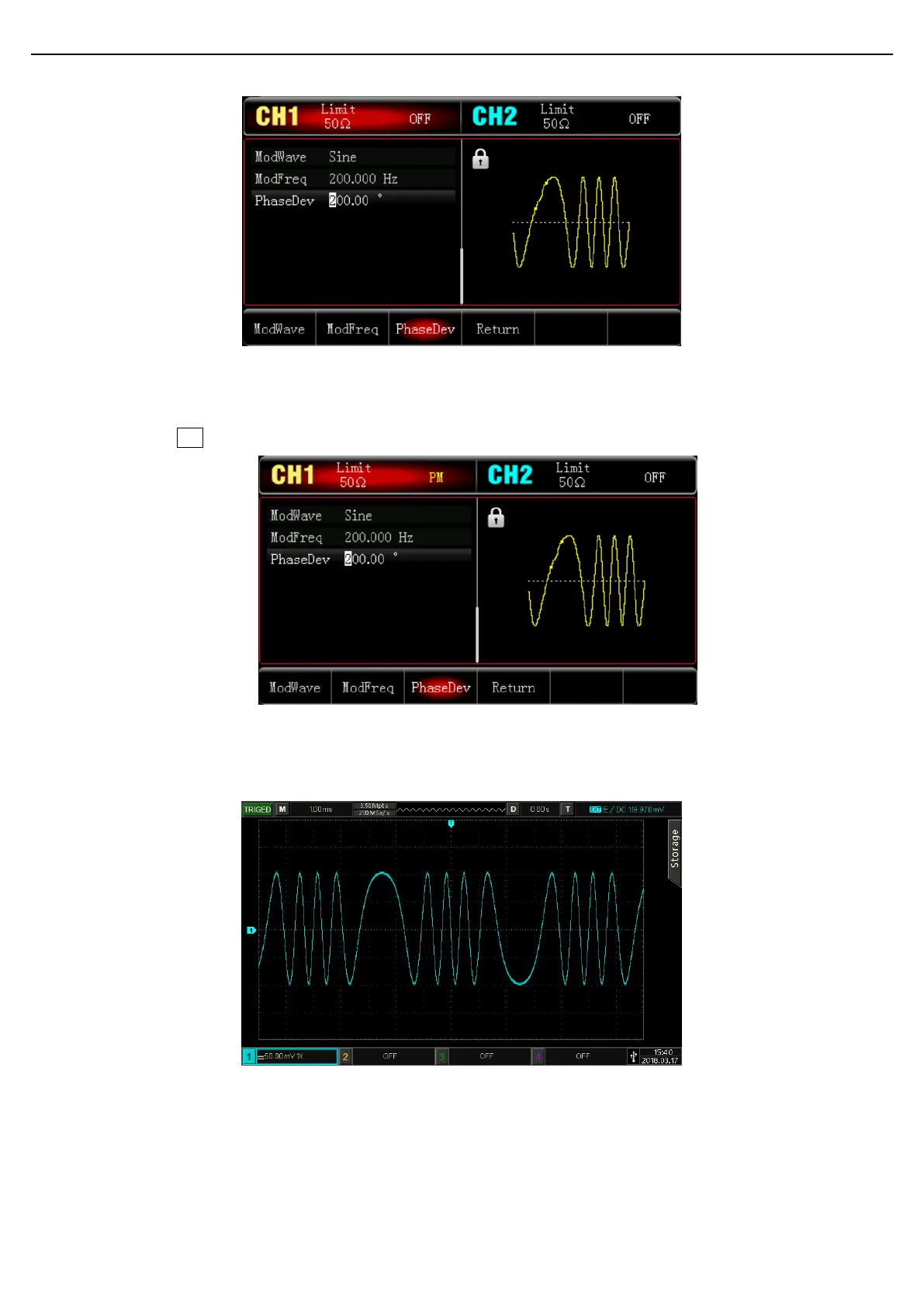

5) Enabling Channel Output
Press CH1 key, if the indicator light is illumined which means the channel output is enabled.
To view the shape of the PM through an oscilloscope as shown in the following figure.
4.1.4 Amplitude Shift Keying (ASK)
ASK is a digital amplitude modulation, it expresses digital signals “0”and “1”by changing the amplitude of
carrier signal. It according to the logical of modulation signal to output the carrier signals with different
amplitude. The modulation mode of the two channels are independent, user can set the same or

UNI-T UTG1000X Series Specifications

General

Brand	UNI-T
Model	UTG1000X Series
Category	Portable Generator
Language	English
