User’s Manual UTG1000X Series
Instruments.uni-trend.com 54 / 74

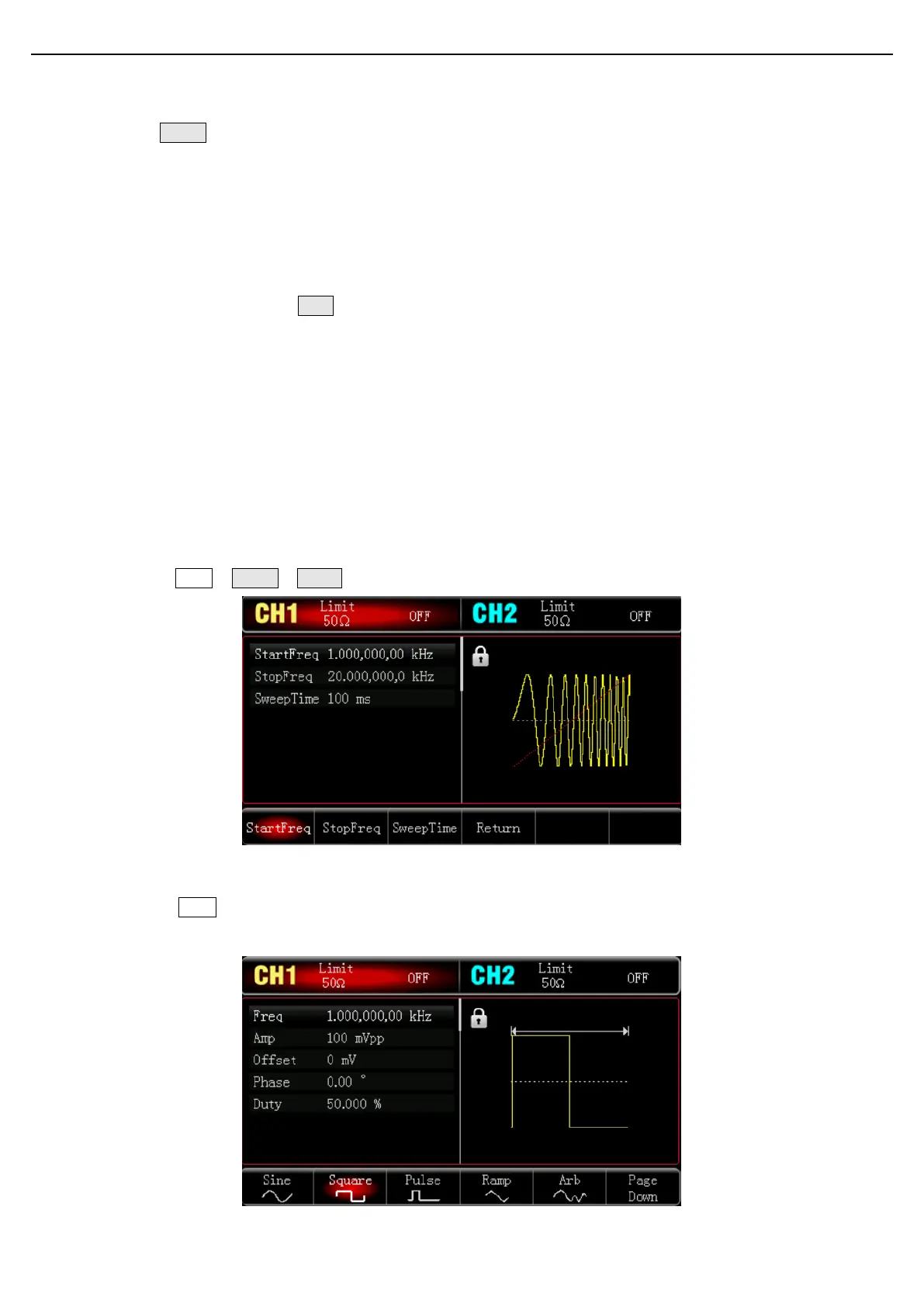

4.2.3 Frequency Sweep Mode
Press Sweep key to select linear or logarithmic;
Linear: waveform generator outputs frequency in a linear way during frequency sweep;
Logarithmic: waveform generator change the output frequency in logarithmic way.
4.2.4 Frequency Sweep Time
In frequency sweep mode, the frequency sweep time (the range is 1ms- 500s), the default is 1s. It can be
change by press soft key Time and use numerical keyboard to input number and select unit soft key to
complete the setting.
4.2.5 Comprehensive Example
In frequency sweep mode, set an internal square wave with amplitude 1 Vpp, duty cycle 50% as the frequency
sweep wave. Frequency sweep mode is set to linear, set the start frequency to 1 kHz, stop frequency to 50
kHz, sweep time to 2ms, use internal source trigger to output the frequency sweep wave.
The setting steps as follows.
1) Enabling Linear Sweep Mode
Press Mode Sweep Linear to turn on linear sweep mode.
2) Select Frequency Sweep Wave
Press Wave key to enter the sweep frequency wave interface and select square wave (the default is sine
wave).
