User’s Manual UTG1000X Series
Instruments.uni-trend.com 56 / 74
4) Enabling Channel Output
Press CH1 key, if the indicator light is illumined which means the channel output is enabled.

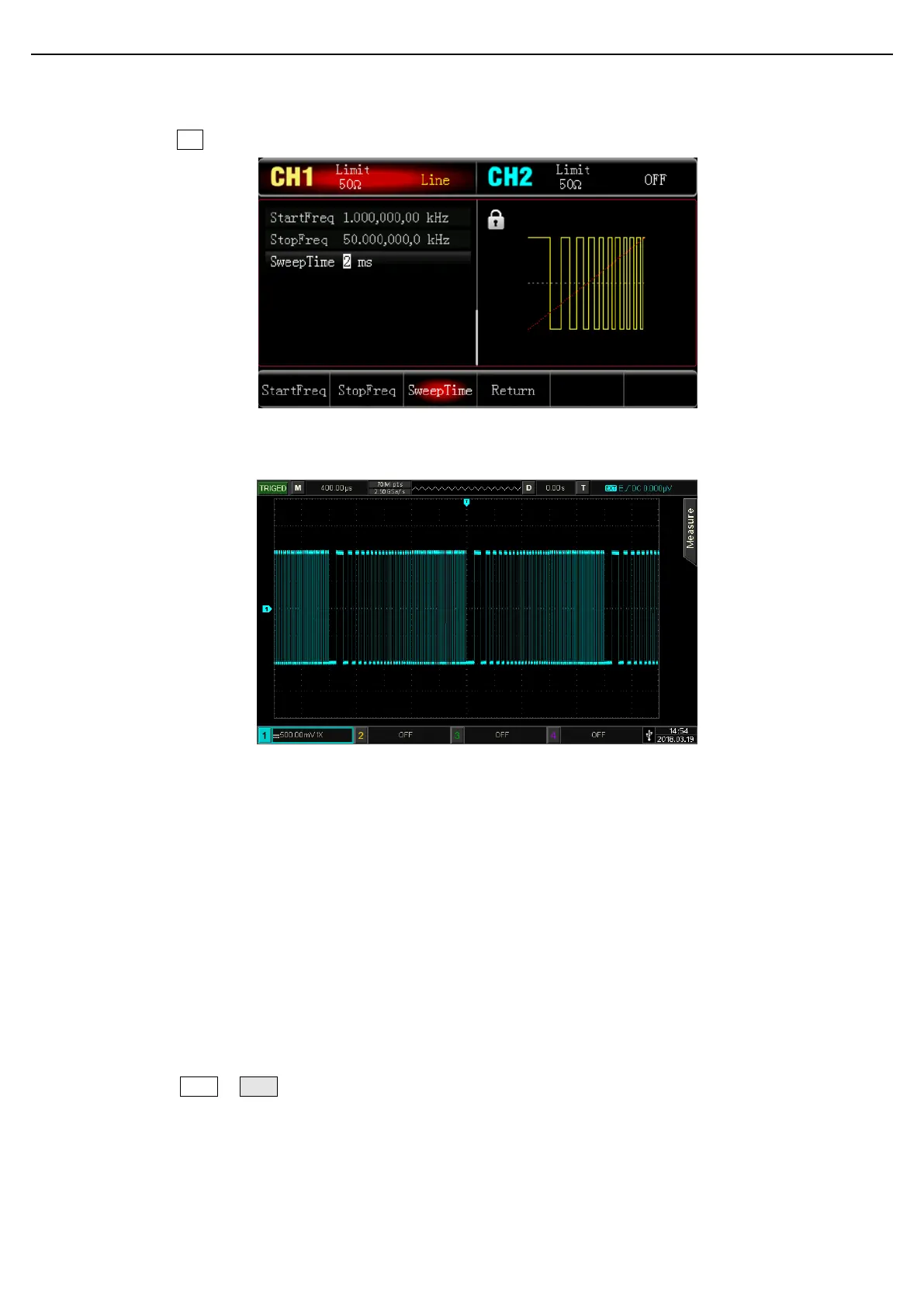

To view the shape of the linear sweep wave through an oscilloscope as shown in the following figure.
4.3 Output Pulse String
The waveform generator can create wave with specified cycle number (which is pulse string). UTG1000X
supports internal and external trigger to control output the pulse string. Pulse string has three types N cycle,
gating and infinite. Sine wave, square wave, ramp wave, pulse wave, arbitrary wave (except DC) or noise (only
for gating pulse string) can all generate pulse string. The modulation mode of the two channels are
independent, user can set the same or different modulation mode for the two channels.
4.3.1 Select Pulse String
1) Enabling Linear Sweep Mode
Press Mode Burst to turn on pulse string mode. After the pulse string mode is enabled, waveform
generator will output the pulse string according to the currently setting.
