UTL8500 Series User Manual
36
Operation Steps:
1. In initial interface, select [Mode], [More], [More], and then press [Short Cir] to enter the
setting interface.
2. Move the cursor to the needed setting position by pulse knob, and press the Enter
button to change the parameter (the parameter changes from yellow to white) by
keyboard or pulse knob. Press the Enter button again to confirm. At this time, the
set value changes from white to yellow.
3. Other parameters can be modified in a similar way.
4. Press the ON button, the electronic load starts to load, and the indicator light below the
button lights up. If you need to stop the load, press the ON button again, and the
running indicator light goes out.
5. Press the function key [Short Cir] to enter the short circuit mode. When the short circuit
mode takes effect, the status bar will display the word Short. When the short-circuit
mode ends, the word Short disappears.
6. Note: Step 4 and Step 5 can be interchanged. If step 4 is before, after pressing the ON
button to start, first load according to the current setting value, and then enter the short
circuit mode; if step 5 is before, press the ON button to start and enter the short circuit
mode directly.
4.2.10 Time Mode
The time mode is to detect the time for the power supply under test to rise/fall from one
voltage point to another voltage point under preset conditions. After the test is completed,
the load will display the interval between the two time points, and the accuracy of the time
measurement is 1ms.

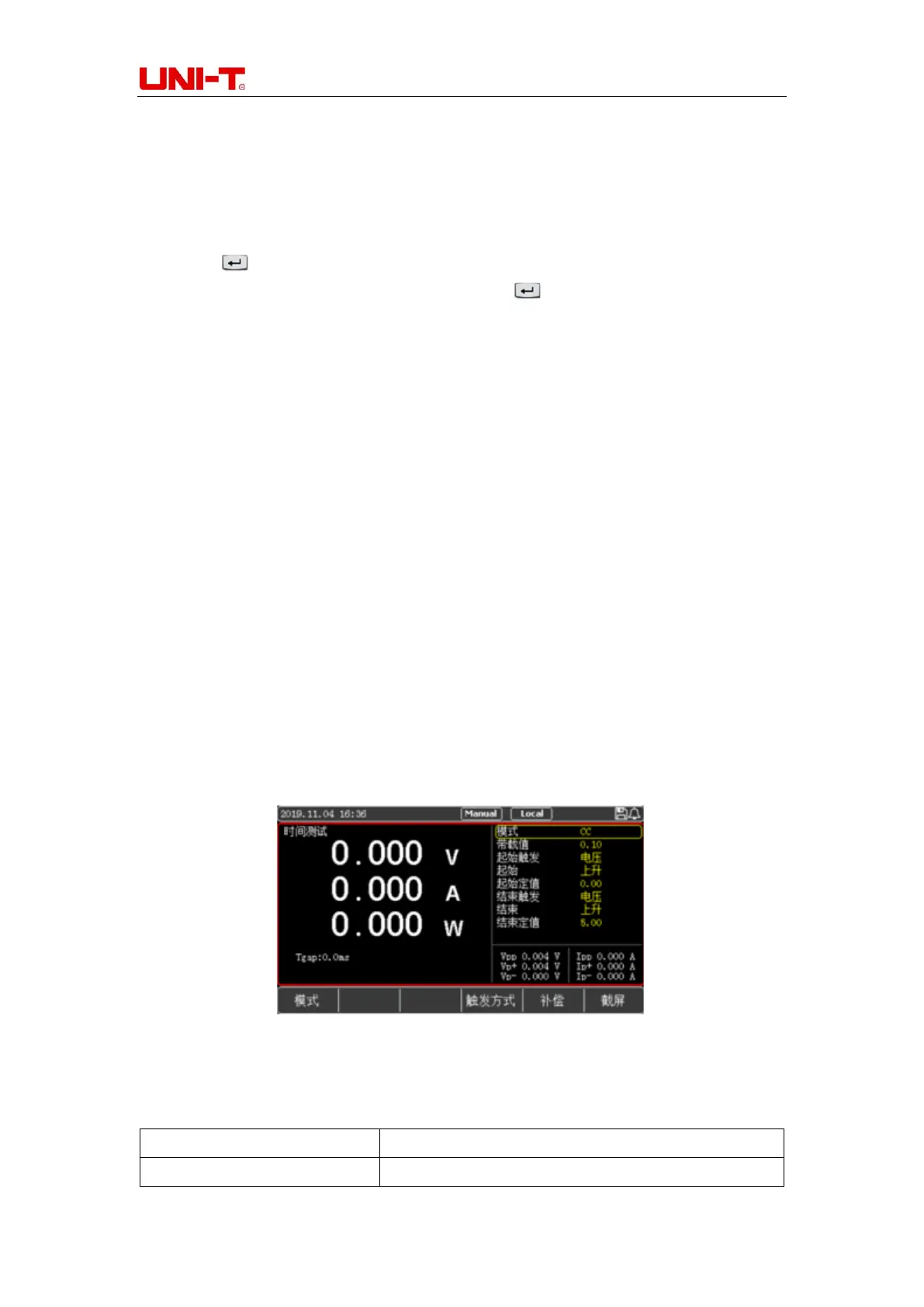

Figure 4-2-10-1 Interface of Time Mode
Parameter Setting in Time Mode:
Set the Load Mode (CC/CV/CR/CP/Open)
To Next Page
