47
Installation instructions
ENGLISH

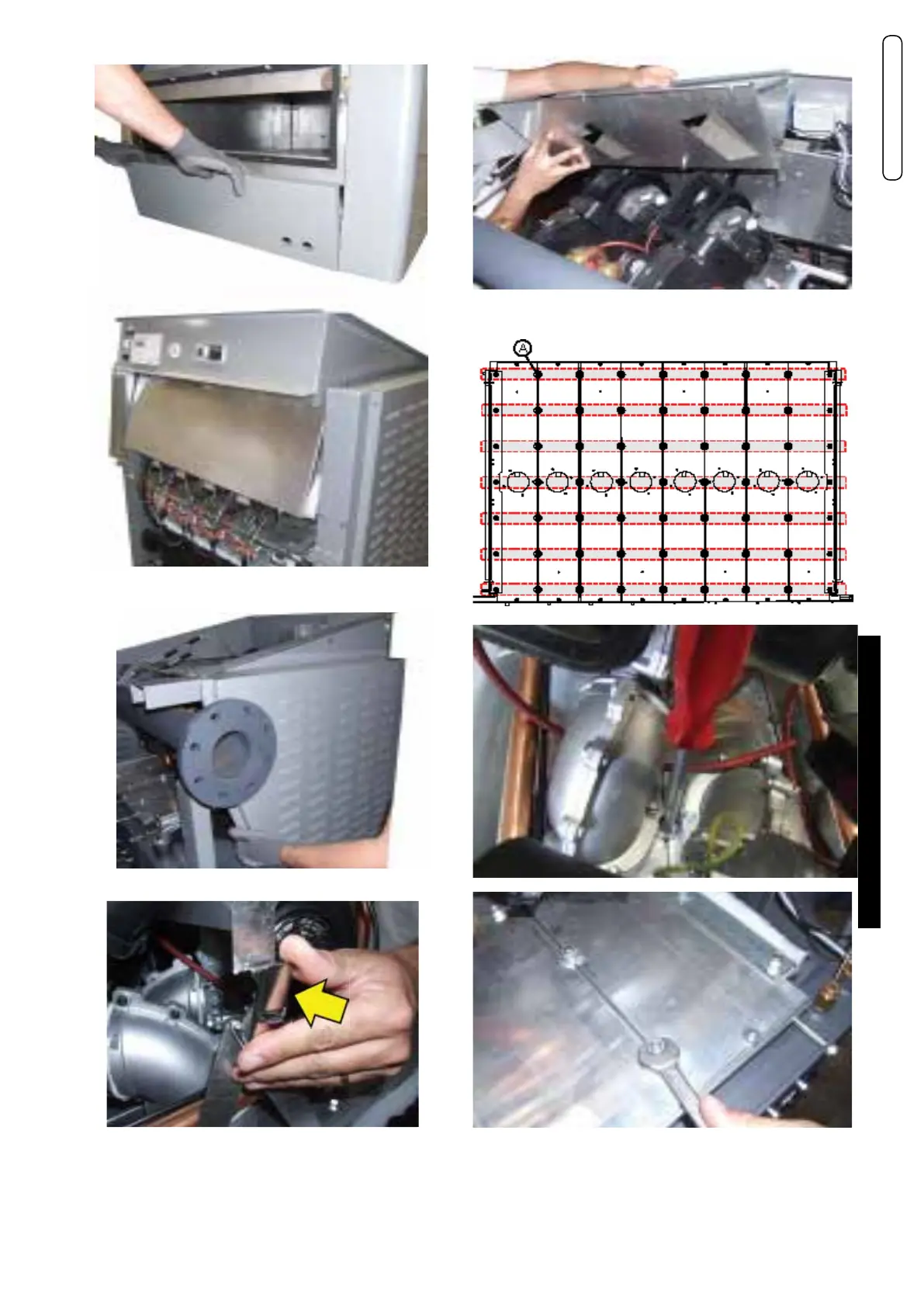

- Release the fan chamber fastening spring
(right/left side).
- Remove the red silicon pipes and then the fan chamber
• Element screws
- Remove screws “A” for each element
(with socket wrench and 13 mm  at spanner)
