Installation and Configuration

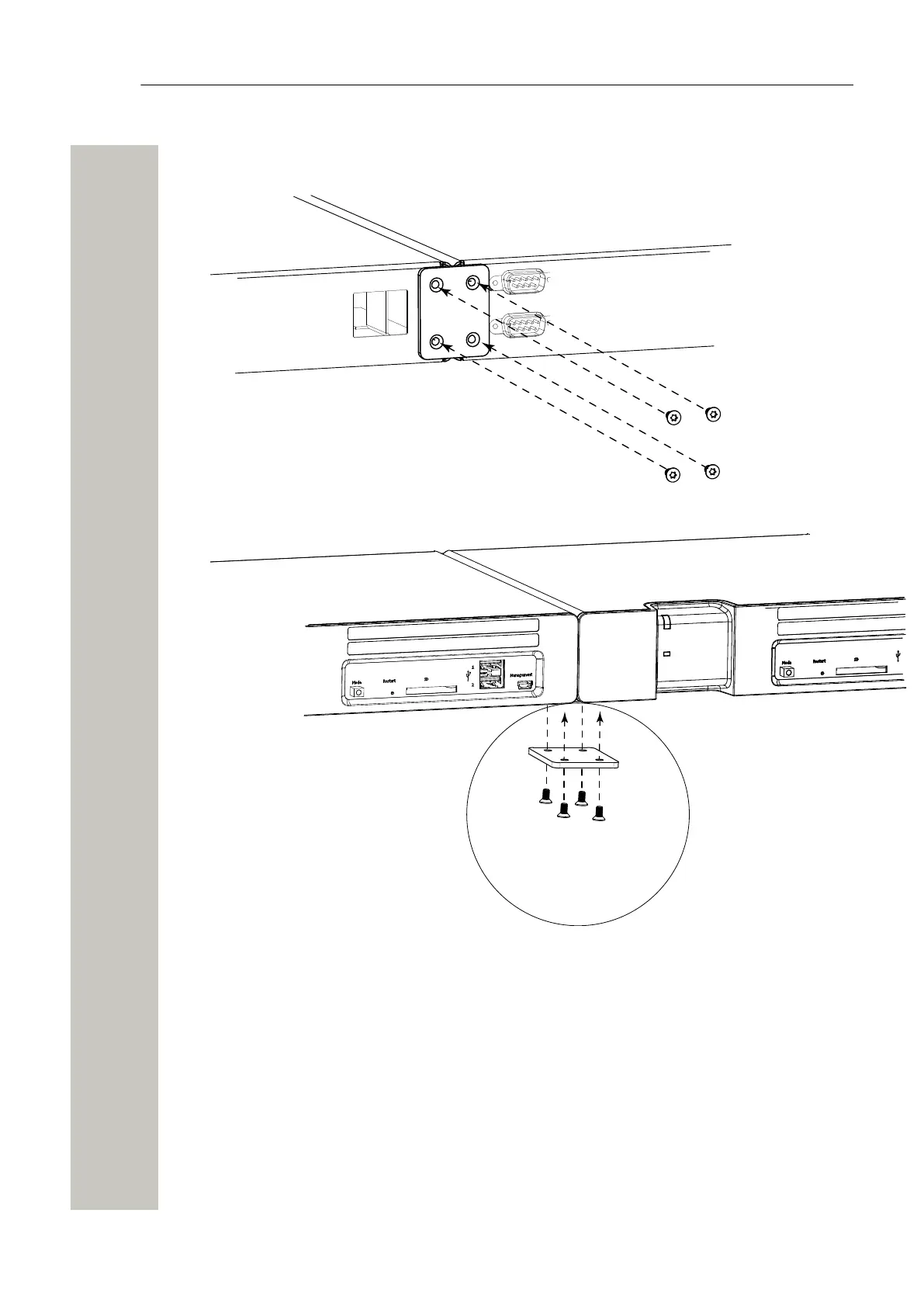

1) Use the supplied assembly brackets and fasten the two modules together, both on the rear
side and on the bottom side, as shown in the two figures below.
Figure 7: Front mounted double
Figure 8: Front mounted double
2) Use the two small standard assembly brackets and fasten one on the right front side and the
other on the left front side.
A31003-M2000-J109-01-7631, 30/06/2020
Wireless Service Gateway WSG, Installation Guide 17
