Coconut Bash
36
12/14/2018

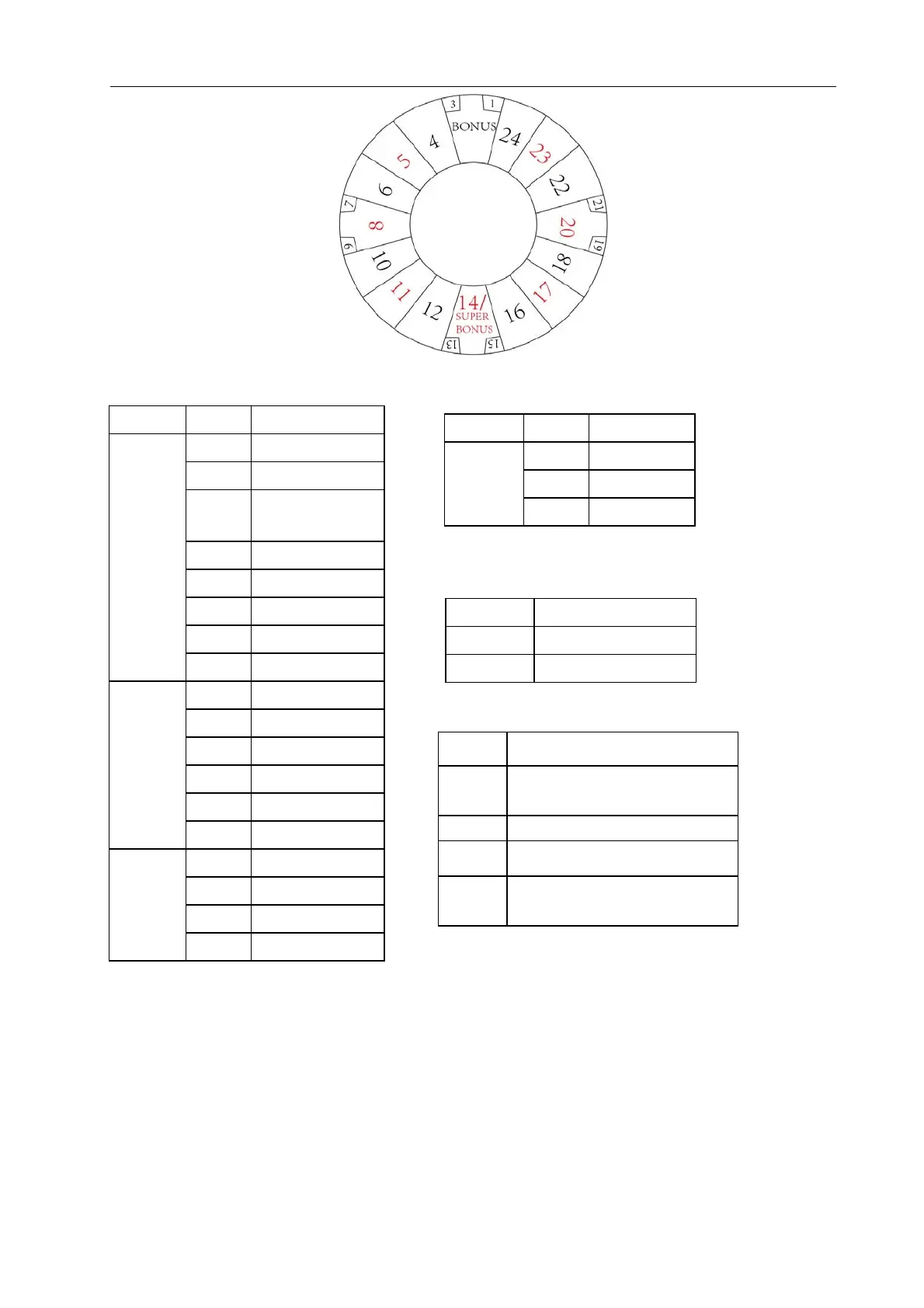

Wheel score position picture
Stand-alone interface board: AD PART:
ITEM Content Content
PWM1-6
(J15)
GND Display-GND
PWM1 Marquee
PWM2
Front frame
light
PWM3 Link marquee
PWM4 Display LAT
PWM5 Display CLK
PWM6 Display DAT
12V Display power
SPI(J16)
5V Wheel motor 5V
MOSI Music RES
MISO Music CSB
SCK Music SCK
NSS Music SI
GND
I²C(J14)
5V Music 5V
SDA Music SO
SCL Music CB
GND Music GND
ITEM Content Content
(A/D)0
(J3)
+3.3V
AD0 Wheel motor
GND
Communication :
ITEM Content
COM1 Linking port
Uport
Error code:
Er16 Wheel motor reset error
Er18 Anti-cheating sensor
error18
Er19 Send ball error
Er20 Ball out sensor error
Er21
Anti-cheating sensor
error21
