UNIS Coconut Bash - Wheel Assembly

Coconut Bash
12/14/2018
51

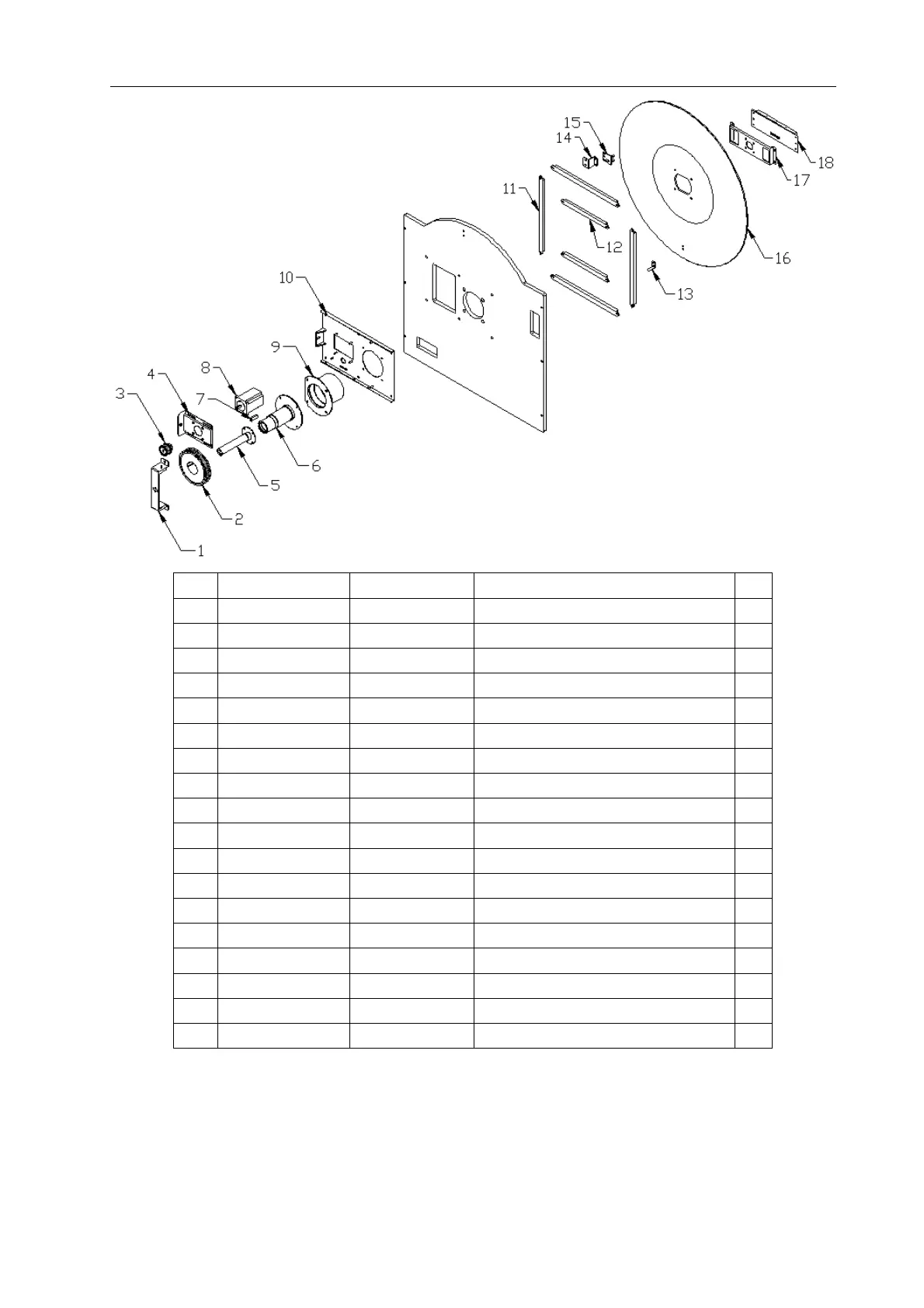

9.6 Wheel Assembly
No. Par t No. Code No. Name Qty
1 C146-194-000 20211702047 Inside axle sleeve bracket 1
2 C146-201-000 20211702119 Driving synchronous wheel 1
3 C146-200-000 20211702118 Driven synchronous wheel 1
4 C146-196-000 20211702104
T
urnplate motor mounting plate 1
5 C146-192-000 20211702046 Inside axle sleeve 1
6 C146-197-000 20211702049 Middle axle sleeve 1
7 C146-199-000 20211702080 Flat key 1
8 C146-472-000 23406000007 Stepping motor 1
9 C146-198-000 20211702050 Out axle sleeve 1
10 C146-195-000 20211702048
T
urnplate fi
x
plate 1
11 C146-448-000 22003080003 5630 light 4
12 C146-447-000 22003080004 5630 light 2
13 C146-203-000 20211702106 Sensor plate 1
14 C146-202-000 20211702105 Sensor fix plate 1
15 C146-441-000 21501000013 Sensor SW 1
16 C146-715-000 20511702002
T
urnplate cover decal 1
17 C146-193-000 20211702103 Turnplate display bracket 1
18 C146-439-000 29741112002 Display 2
