Unitech HT682 User Manual

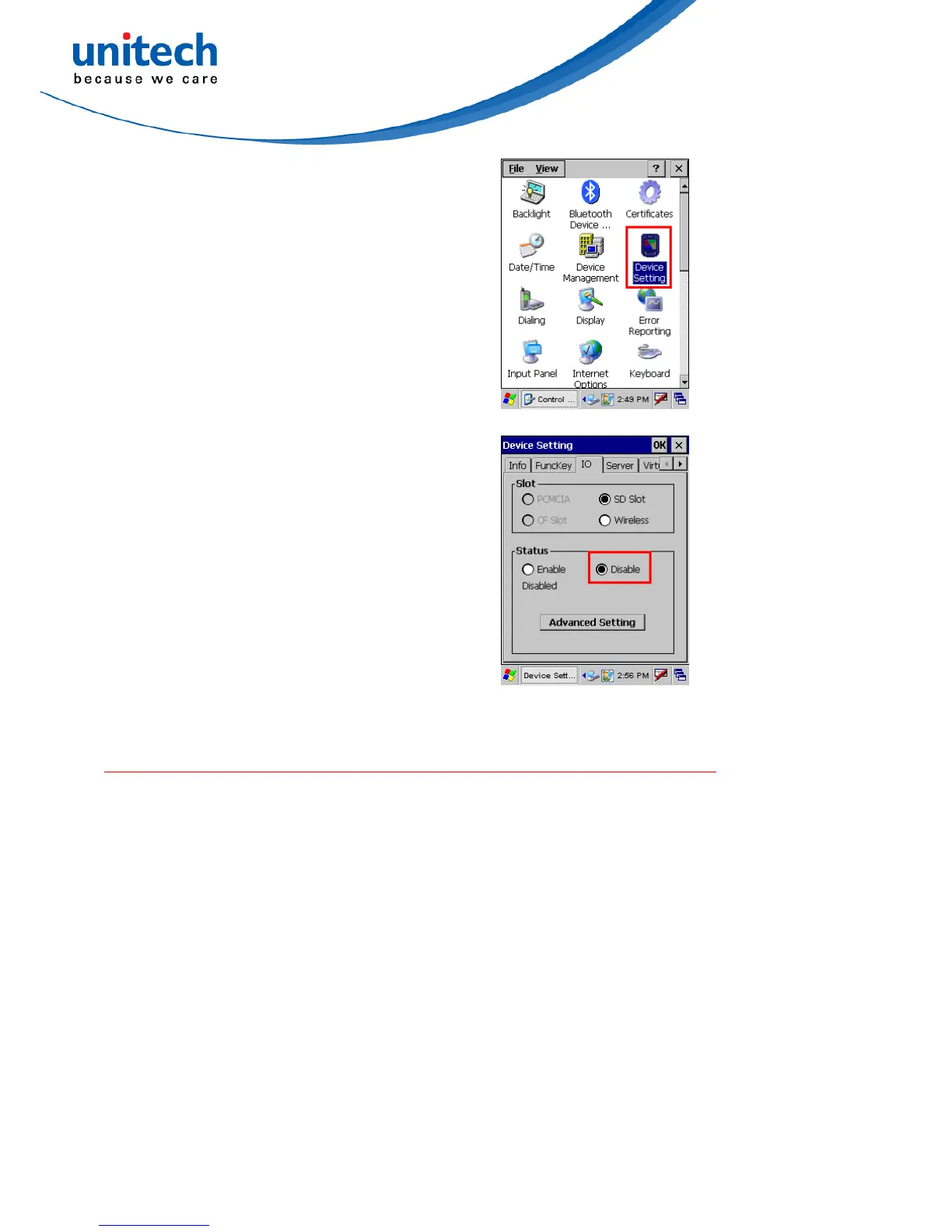

Tap Setting → Control Panel → Device
Setting to enter the Device Setting zone.
Alternatively, Press Func key and “9” button to
bring the Device Setting screen.
Move to the IO tab and select Disable to
disable the wireless mode.
Storage and Safety Precautions
Batteries should be stored in an open environment and placed where there is no risk of
accidental shorting or other damage. Although charged Li-Ion batteries may be left unused for
several months, their capacity may be reduced due to back up and internal resistance. If this
happens they will require recharging prior to use. Li-Ion batteries may be stored at
temperatures between -4°F and 158°F (-20°C to 70°C).
19

Unitech HT682 Specifications

General

Certification	CE, FCC, BSMI, VCCI, CCC, SRRC, RoHS
Product color	Black
LED indicators	Yes
Phone function	-
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, MSI, PLANET, POSTNET, U.P.C.
International Protection (IP) code	IP65
2D (matrix & stacked) barcodes supported	Aztec Code, Codablock, Code 49, Composite Codes, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Display diagonal	2.8 \
Display resolution	- pixels
Speakers	Mono
ROM capacity	512 MB
Internal memory	0.512 GB
Internal memory type	SDRAM
Compatible memory cards	SDHC
Maximum memory card size	32 GB
Processor family	OMAP AM3703
Processor frequency	0.8 GHz
USB 2.0 ports quantity	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	- mAh
Data network	EDGE, GPRS, GSM, HSDPA, UMTS
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	2.1+EDR
GSM bands supported	850, 900, 1900, 2100 MHz
Security algorithms	AES, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP, WEP, WPA, WPA2
Operating system installed	Windows Embedded Compact Professional 6.0 R3

Weight and Dimensions

Depth	30 mm
Width	55 mm
Height	170 mm
Weight	- g
