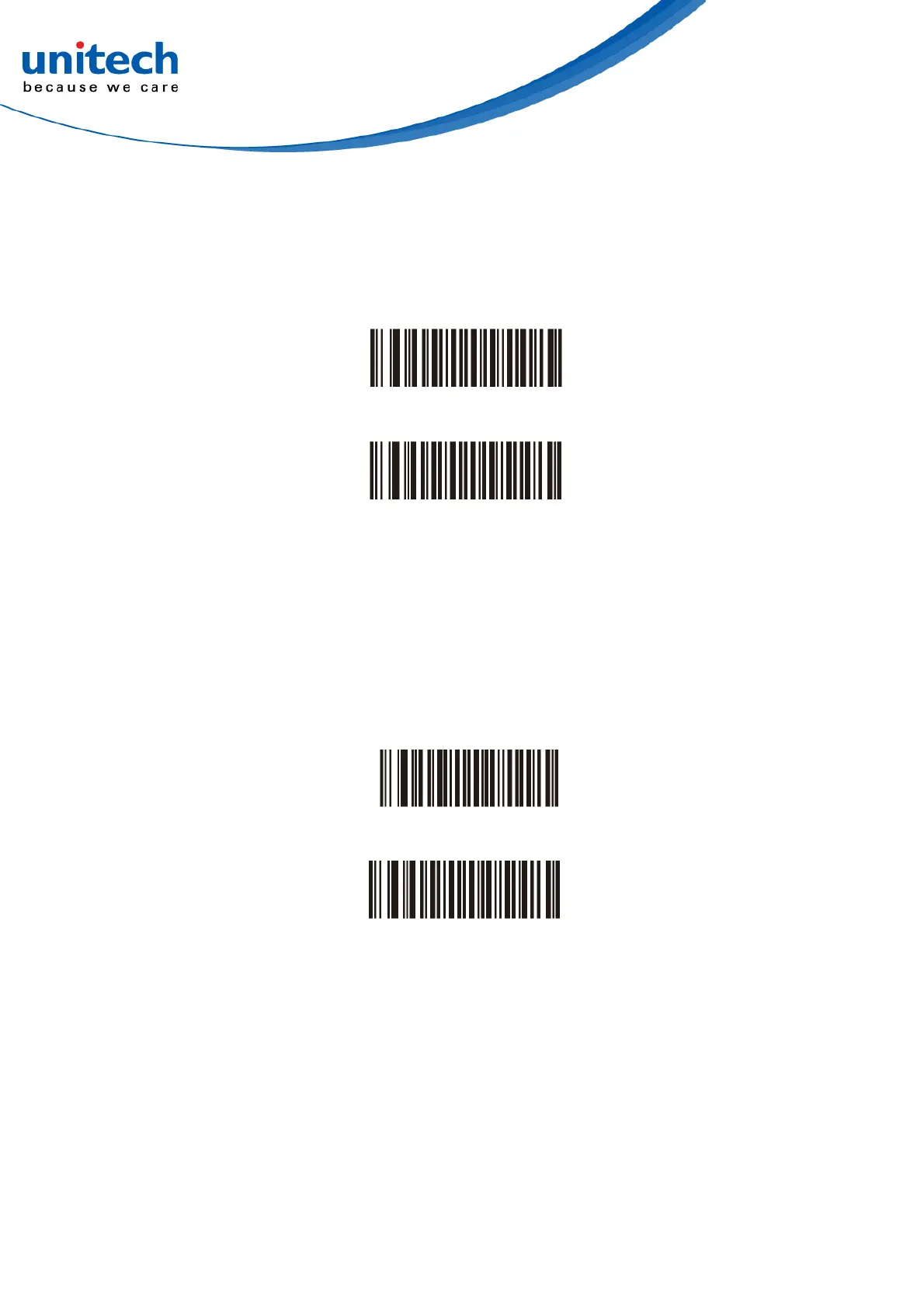

3.16.7 Maxicode
Scan one of the following bar codes
to enable or disable Maxicode.
3.16.8 QR Code
Scan one of the following bar codes
to enable or disable QR Code.
Note: Enabling this also enables QR Inverse, QR Mirrored, an
d Linked QR.
Enable Maxicode
Disable Maxicode*
Enable QR Code*
Disable QR Code
