Additionally, UAD-2 Satellite can function as a FireWire hub, by using the un-
used ports on the unit to connect other FireWire devices as in Figure 36. Note
that UAD-2 Satellite does not supply FireWire bus power to downstream de-
vices; see “FireWire Bus Power” on page 144 for details.

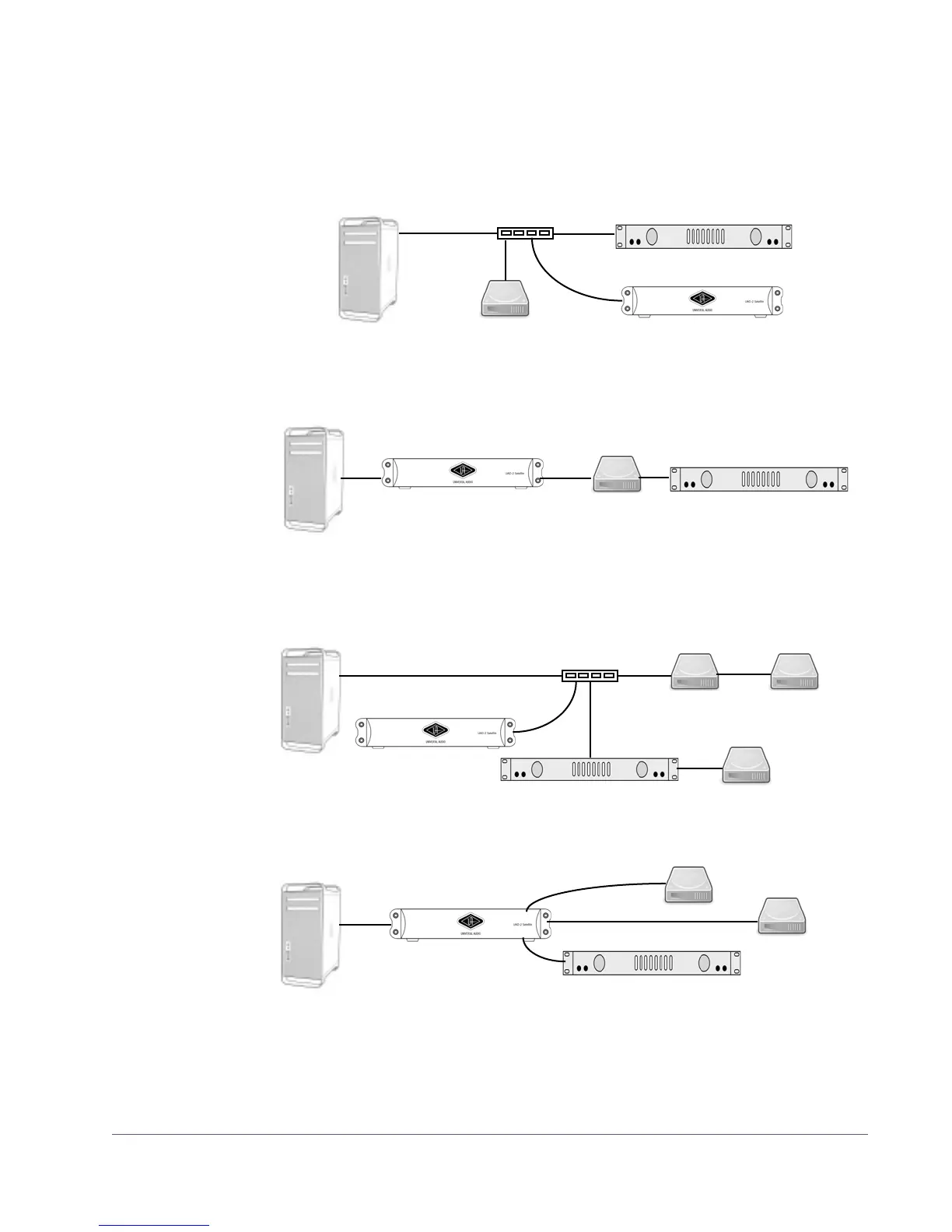

Figure 33. FireWire bus connections via a hub
Figure 34. FireWire bus connection via daisy chain
Figure 35. FireWire bus connections via hub and daisy chain
Figure 36. FireWire bus connections using UAD-2 Satellite as a hub
Computer
FW Audio Interface
External HD
UAD-2 Satellite
FW Hub
Computer
FW Audio Interface
External HD
UAD-2 Satellite
Computer
FW Audio Interface
External HD
UAD-2 Satellite
FW Hub
External HD
External HD
Computer
FW Audio Interface
External HD
UAD-2 Satellite
External HD
