UAD Powered Plug-Ins Manual - 345 - Chapter 32: MXR Flanger/Doubler

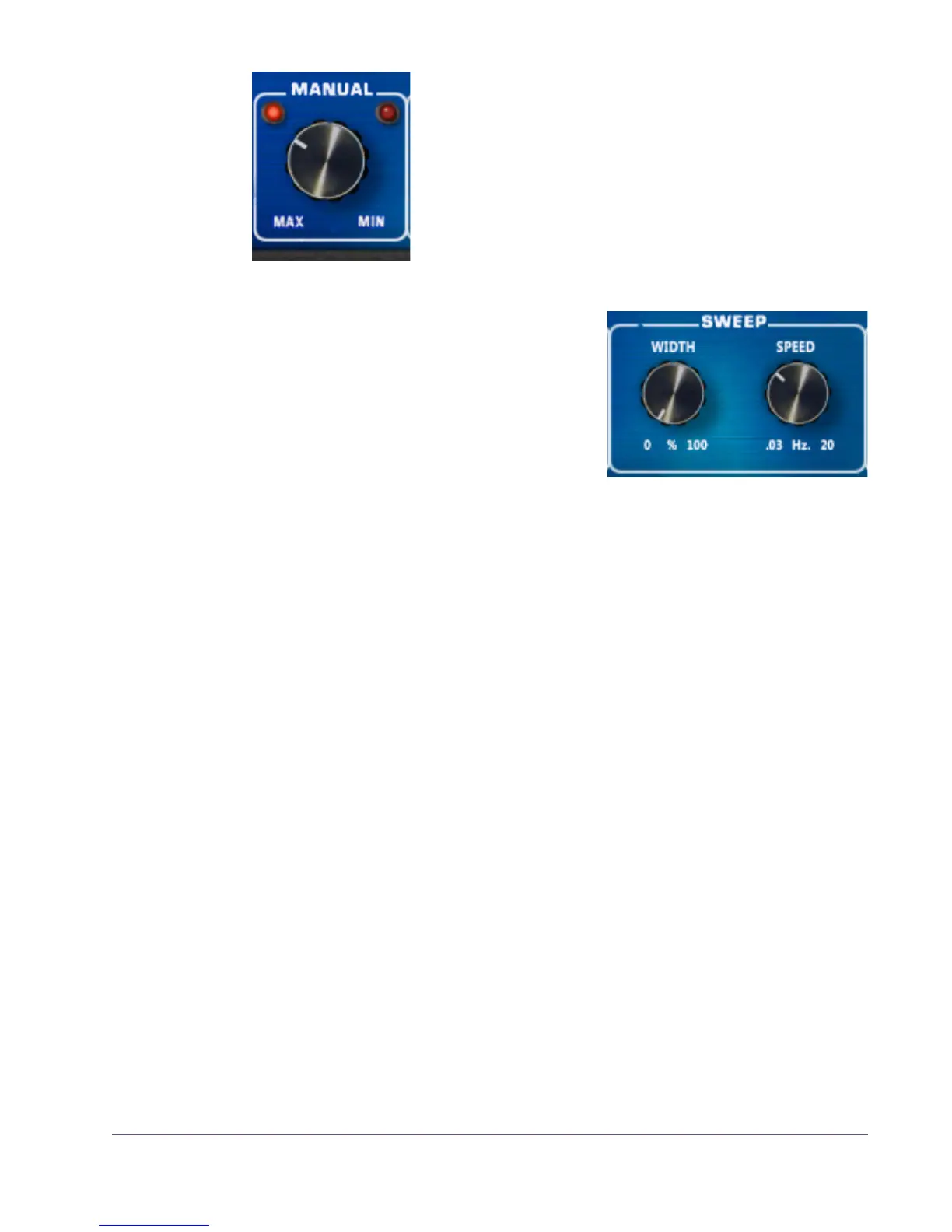

Manual This continuous control determines the delay time of the
processor. The delay time is modulated by the Sweep
LFO when the Width value is higher than 0%.
The available range of the control depends on the set-
ting of the Effect button. In Flanger mode, the available
delay time range is 4.9 milliseconds to 0.33 millisec-
onds. In Doubler mode, the available delay time range
is 66 milliseconds to 18.5 milliseconds.
Sweep The Sweep parameters (Width and Speed)
control the LFO (Low Frequency Oscillator)
that modulates the delay time of the proces-
sor.
Width
Sweep Width controls the amount of modu-
lation applied to the delay time LFO. The available range is 0 – 100%.
At 0%, no modulation occurs and delay time is determined by the Manual set-
ting. As Width is increased, the amount of modulation becomes “wider” (a
broader sweep). At 100%, the delay time sweeps throughout its entire range,
automatically creating the same sound as moving the Manual control repeat-
edly back and forth from minimum to maximum.
Speed
Sweep Speed controls the rate of modulation applied to the delay time LFO.
The available range is 0.02 Hz to 15.96 Hz (this is the actual range of the
original hardware; the knob text on the hardware panel doesn’t match ex-
actly). The current speed is indicated by the Sweep LEDs and also shown in
the Rate Display.
The Sweep Speed can be synchronized to the tempo of the host application
by engaging the Sync function.
