UAD Powered Plug-Ins Manual - 452 - Chapter 44: Precision Limiter
The main level meters in Normal mode, and the gain reduction meter in both
Normal and Zoom modes, are linear (level differences between LED segments
is the same). In PK-RMS and K-20 Zoom modes however, the main level
meters use two different linear ranges for increased accuracy.
The ranges and response for each meter type and scale is detailed below.
PK-RMS
In Normal mode, the meter range is –60 dB to 0 dB with a linear response of
0.5 dB per segment. In Zoom mode, the range is –18 dB to 0 dB with two dif-
ferent linear responses: 0.2 dB per segment from –18 to –6 dB, and 0.1 dB
per segment from –6 to 0 dB.
K-20
In Normal mode, the meter range is –40 dB to 20 dB with a linear response
of 0.5 dB per segment. In Zoom mode, the range is –8 dB to 20 dB with two
different linear responses: 0.2 dB per segment from –8 to 15 dB, and 0.1 dB
per segment from 15 dB to 20 dB.
K-14
In Normal mode, the meter range is –46 dB to 14 dB with a linear response
of 0.5 dB per segment. In Zoom mode, the range is –10 dB to 14 dB, with lin-
ear response of 0.2 dB per segment.
K-12
In Normal mode, the meter range is –48 dB to 12 dB with a linear response
of 0.5 dB per segment. In Zoom mode, the range is –12 dB to 12 dB, with lin-
ear response of 0.2 dB per segment.

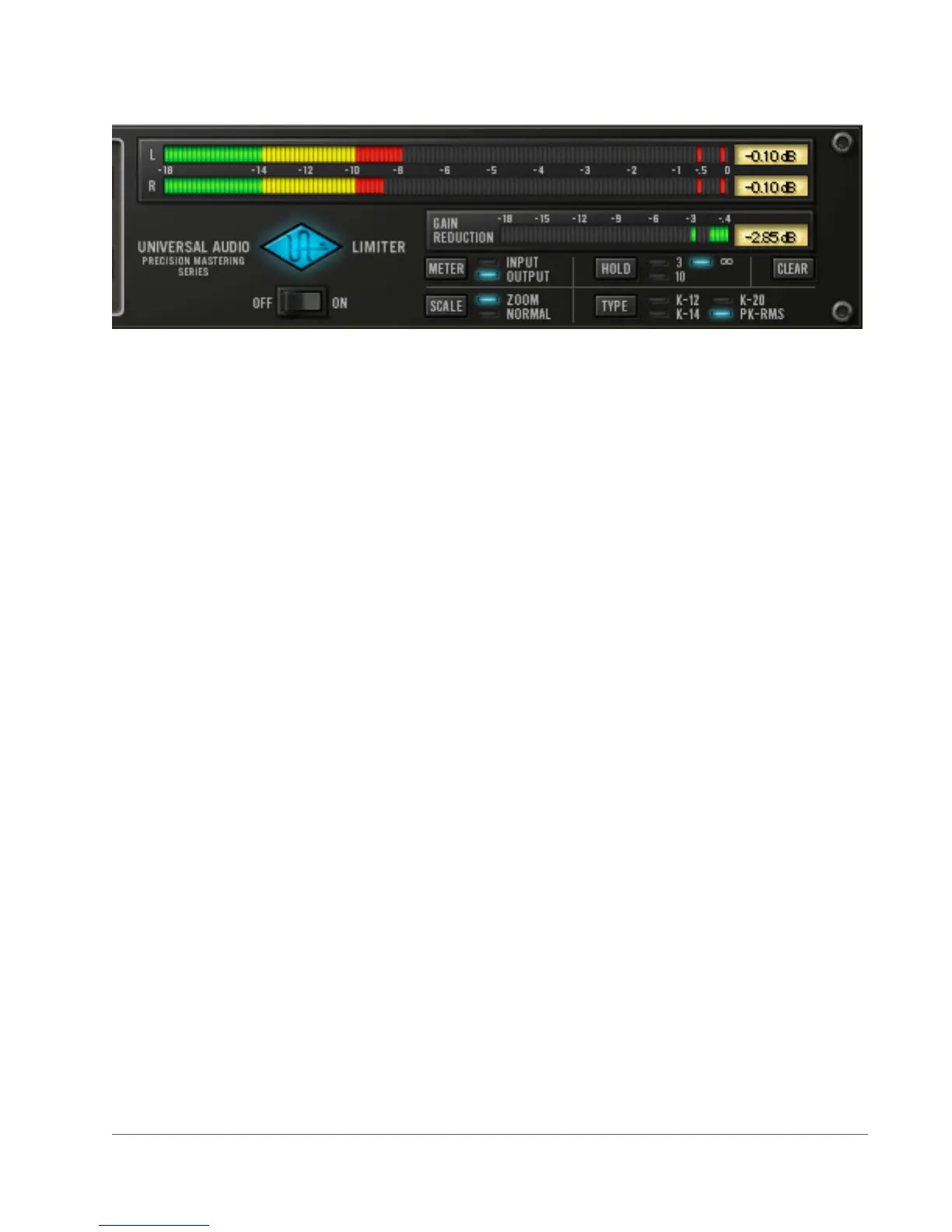

Figure 146. Precision Limiter meter scale in PK-RMS Zoom mode
