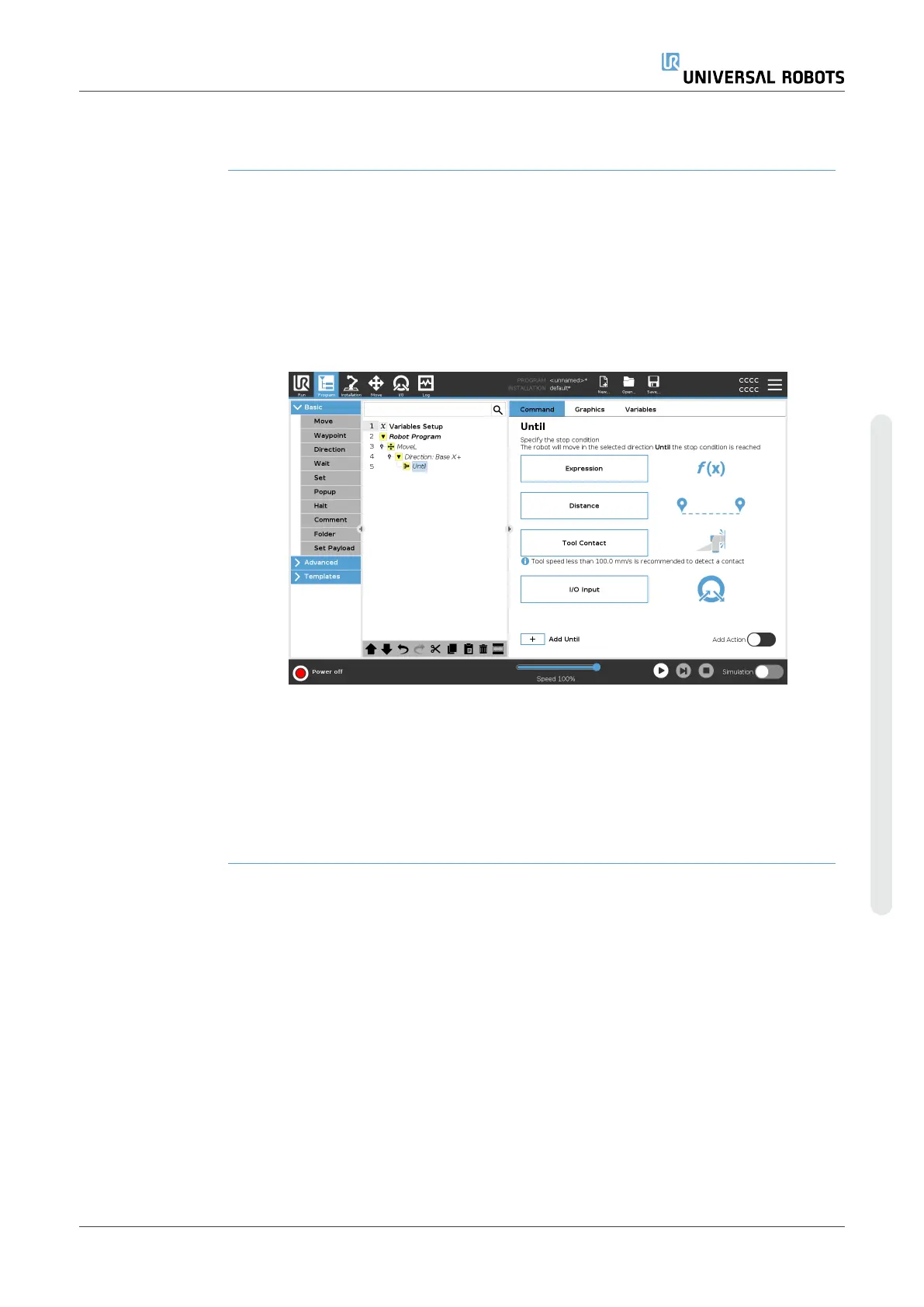

Add Until
Description The program node Until defines stop criteria for a motion.
You can add Until nodes from Direction and Waypoint commands.
You can only add a direction node to a MoveL and MoveP.
The robot moves along a path and stops when contact is detected.
You can add multiple stop criteria to a single movement. The motion stops when the
first Until condition is met.
You can add multiple Add Until one after the other, because there can be multiple
conditions that must be met, before an action is done or executed.
•
Distance
•
Tool Contact: (see 19.7.3 Directionon page222)
•
Expression
•
I/O Input:
•
Add Action
Expression This node uses a custom program expression to stop the robot's motion. You can also
use an expression to specify a stop condition.
Stop conditions can also be specified using variables and script functions.
User Manual 217 UR10e
Copyright © 2009–2024 by UniversalRobotsA/S. All rights reserved.
