To Next Page

To Previous Page

OFF

12V

Remote

GND

OFF

12V

Remote

GND

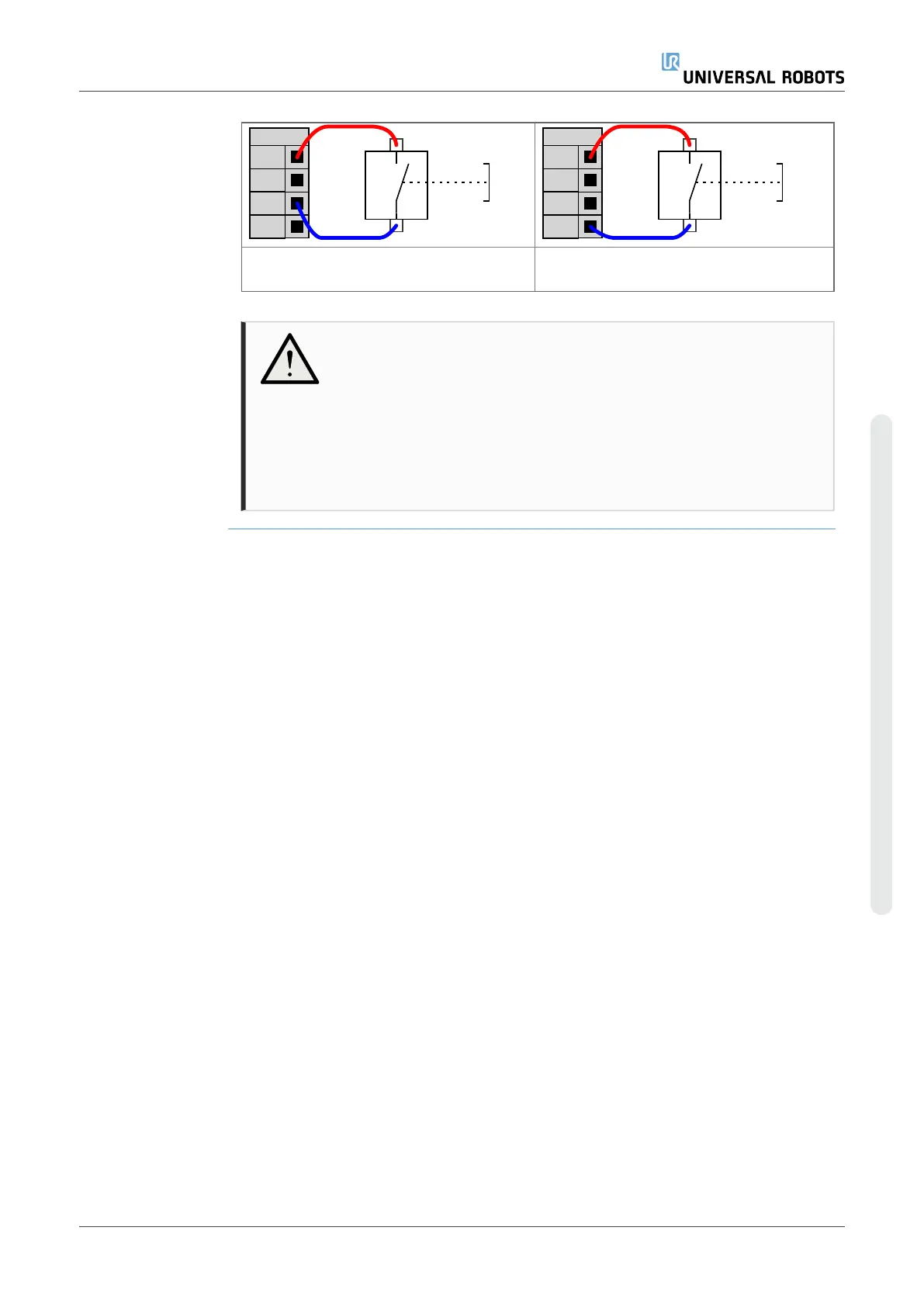

This example illustrates connecting a

remote ON button.

This example illustrates connecting a

remote OFF button.

CAUTION

Maintaining a press and hold on the power button switches the

Control Box OFF without saving.

•

Do not press and hold the ON input or the POWER button

without saving.

•

Use the OFF input for remote off control to allow the Control

Box to save open files and shut down correctly.

User Manual 59 UR10e

4. Electrical Interface
