Universal Robots UR20 User Manual

1. Move the Robot Arm to ZERO position, if possible.
2. Turn off and disconnect the power cable from Control Box.
3. Inspect the cable between Control Box and Robot Arm for any damage.

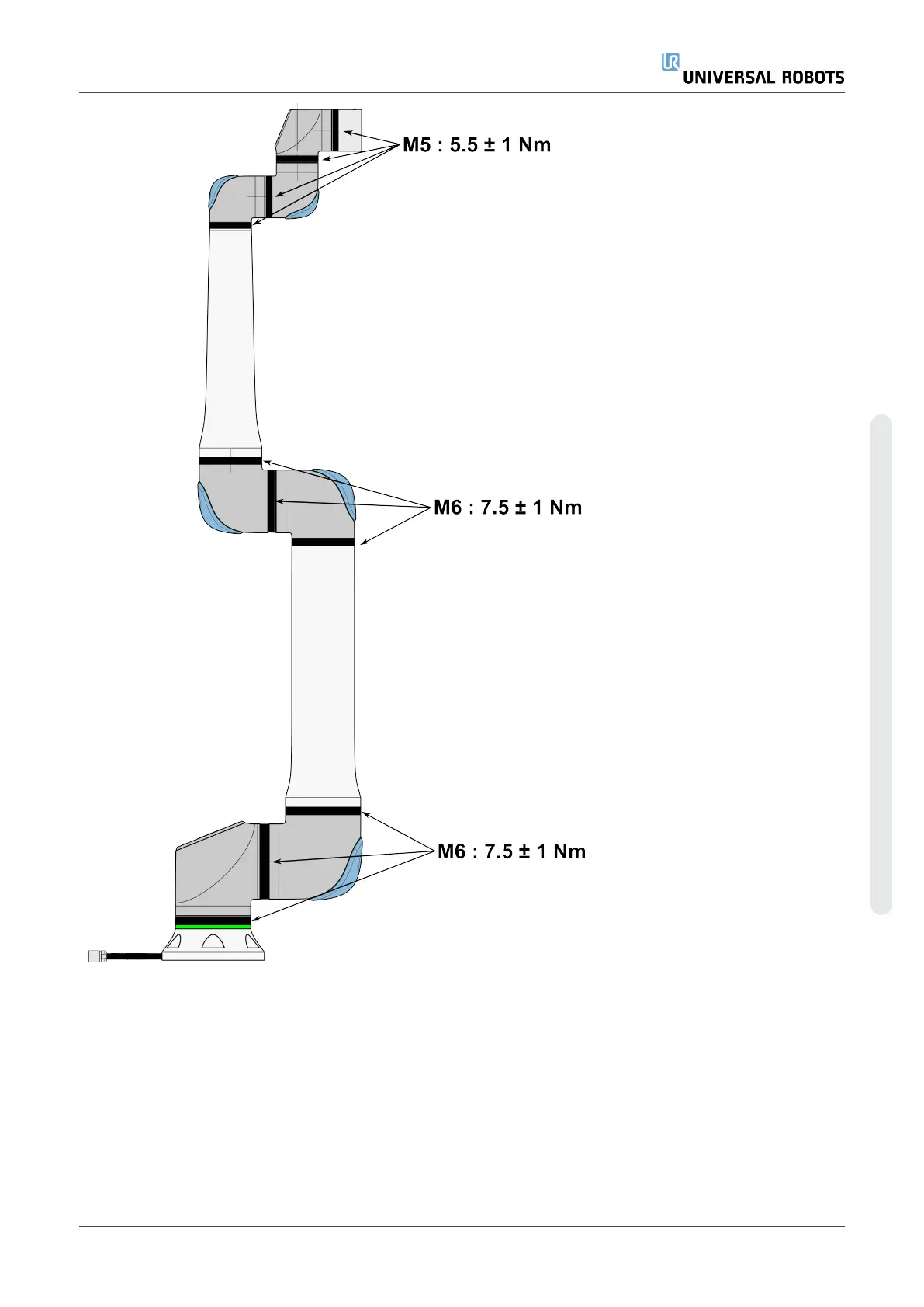

4. Check the base mounting bolts are properly tightened.
5. Check the tool flange bolts are properly tightened.
6. Inspect the flat rings for wear and damage.
•
Replace the flat rings if they are worn out or damaged.
Service Manual 7 UR20
3.Recommended Inspection Activities
Copyright © 2009–2023 by UniversalRobotsA/S. All rights reserved.

Universal Robots UR20 Specifications

General

Brand	Universal Robots
Model	UR20
Category	Robotics
Language	English
