All rights reserved 16 Log Analyzer Manual (EN) V1.1

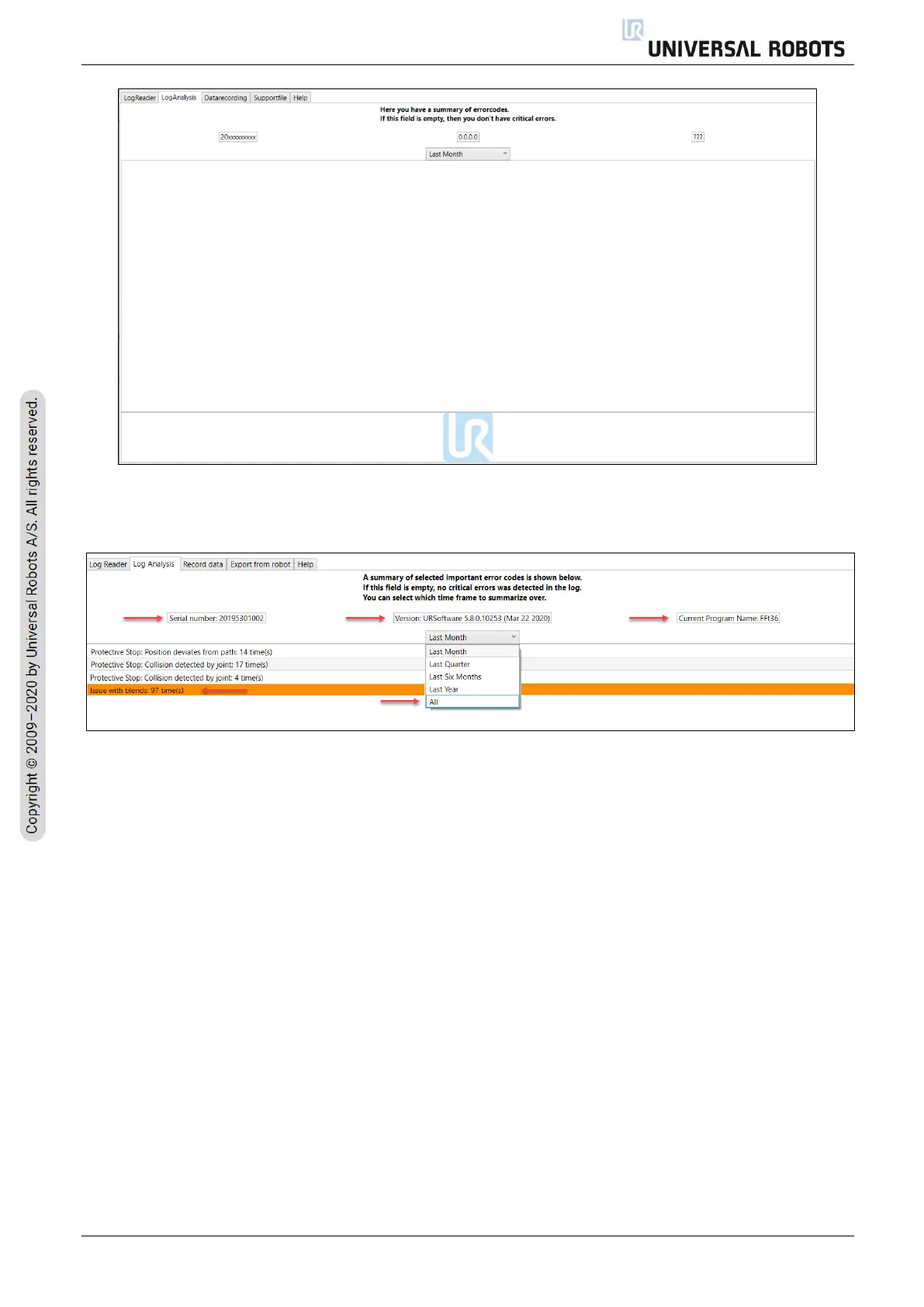

The Serial Number of the robot, the robot software current version, and the last program running on the
robot will be displayed on this screen for information.
If a high number of critical error codes are found, they will be highlighted on the list for awareness and
corrective actions to be taken by the user to solve the source of the message.
NOTE: If you have a high number of messages shown up on the Log Analysis tab, take action to try to
solve the source of these error/warning messages generation. It is not right to have many messages
showing up on the robot, they need to be acted upon.
2.5.5 Record data Tab
This tab enables the real-time data recording of the robot connected through ethernet cable with your
computer.
Before starting to record any data, make sure you have your computer connected to the robot’s ethernet
port and you have setup your computer’s IP address on the same range of the robot’s IP address.
Make sure your firewall is not blocking the connection from happening and make sure RTDE Interface
is enabled "on" robot security.
After you have the connection done, select the relevant data fields you want to be recorded.
The frequency of update can be defined as wanted. You can adjust sample time and measurement
duration
