GENERAL DESCRIPTION
The PE2037A is a circuit board with its main functions being:
■ managing the loads of the oven (contactors, motors, solenoid valve, etc.)
■ reading the measurements provided by the different sensors (temperature probes, door switch,
etc.)
■ powering the low voltage of the entire system
■ communicating through CANBUS with the control board
■ communicating through (RS485) with possible bridge boards

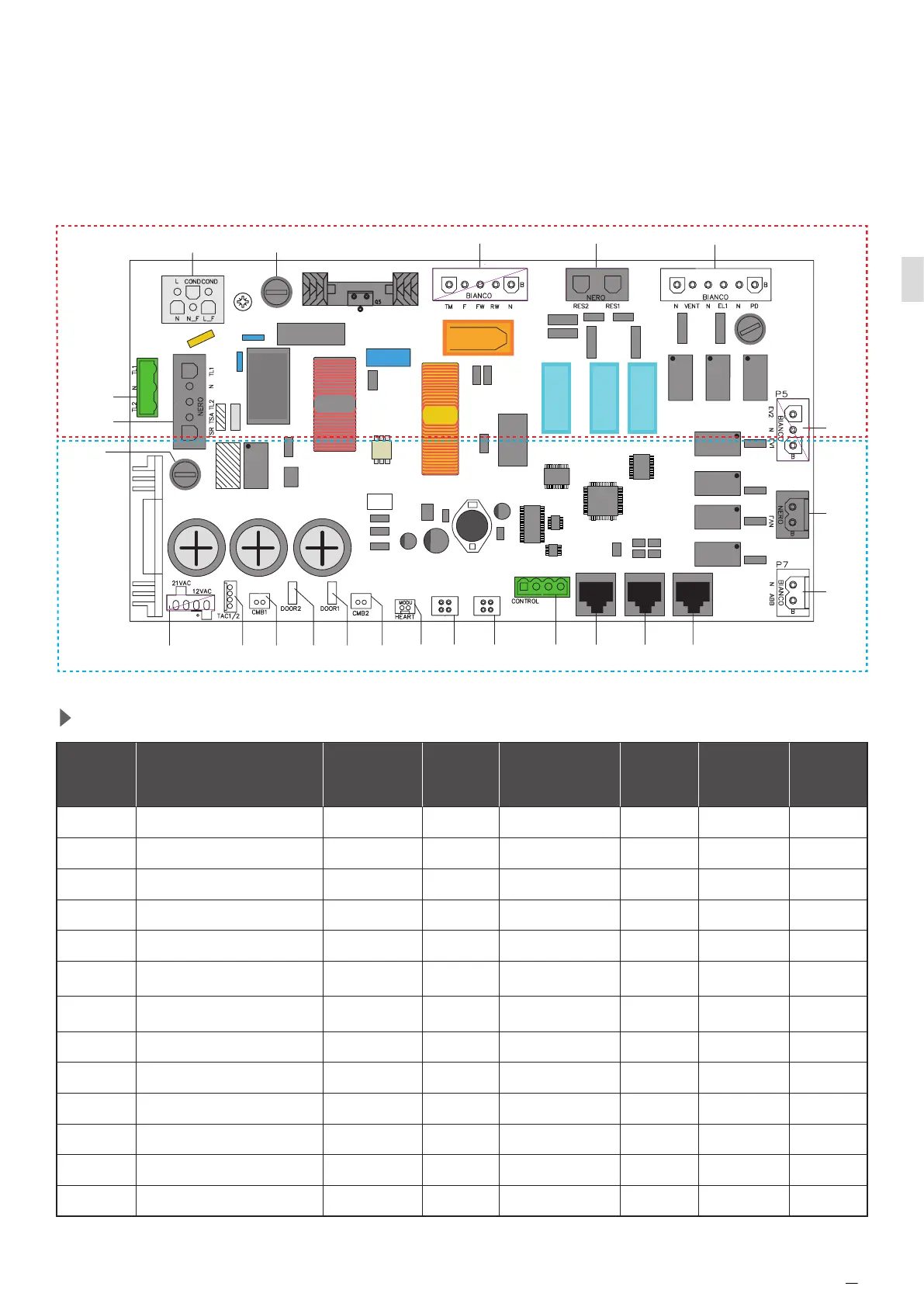

P1
F2
P21
P20 P19 P18 P17 P16
P10
P11P12P13P15
P9 P8
E1
P23
P22
F4
P5
P6
P7
5V
HIGHT VOLTAGE
LOW VOLTAGE
Output
NAME
LOAD
DESCRIPTION
ACTUALIZA-
TION
VOLTAGE
CURRENT
TYPE OF
LOAD
LOAD
HARDWARE
OUTPUT
TL_1 Contactors
Relay (RL8)
230 Vrms 150 mA A 5 √
EV_1 Low steam turn
Relay (RL4)
230 Vrms 60 mA B 2 √
EV_2 High steam turn
Relay (RL5)
230 Vrms 60 mA B 2 √
VENT
DRY.Maxi solenoid Relay (RL3)
230 Vrms 35 mA G 1 √
PD Detergent pump
Relay (RL14) 140 Vrms
370 mA C 2 √
EL_1
Washing solenoid from tap
water
Relay (RL2)
230 Vrms 30 mA B 1 √
ABB Cooling drainage solenoid
Relay (RL7)
230 Vrms 30 mA B 1 √
FAN Cooling fan
Relay (RL6)
230 Vrms 260 mA E 2 √
RES_1 Braking element 1
Relay (RL10)
230 Vrms - - 5 √
RES_2 Braking element 2
Relay (RL11)
230 Vrms - - 5 √
MOT_ FWRW
Motor revolution direction
Relay (RL12)
- - - - √
STBY Neutral cut off
Relay (RL13)
- - - -
TRIAC
Motor triac control
Triac 230 Vrms 8 A F 5 √
To Next Page
