Test 1
Measure the ionization current with the multimeter set to microamp DC current placed in
series between the flame detection electrode and the cable harness (see Figure 23 and Figure 25)

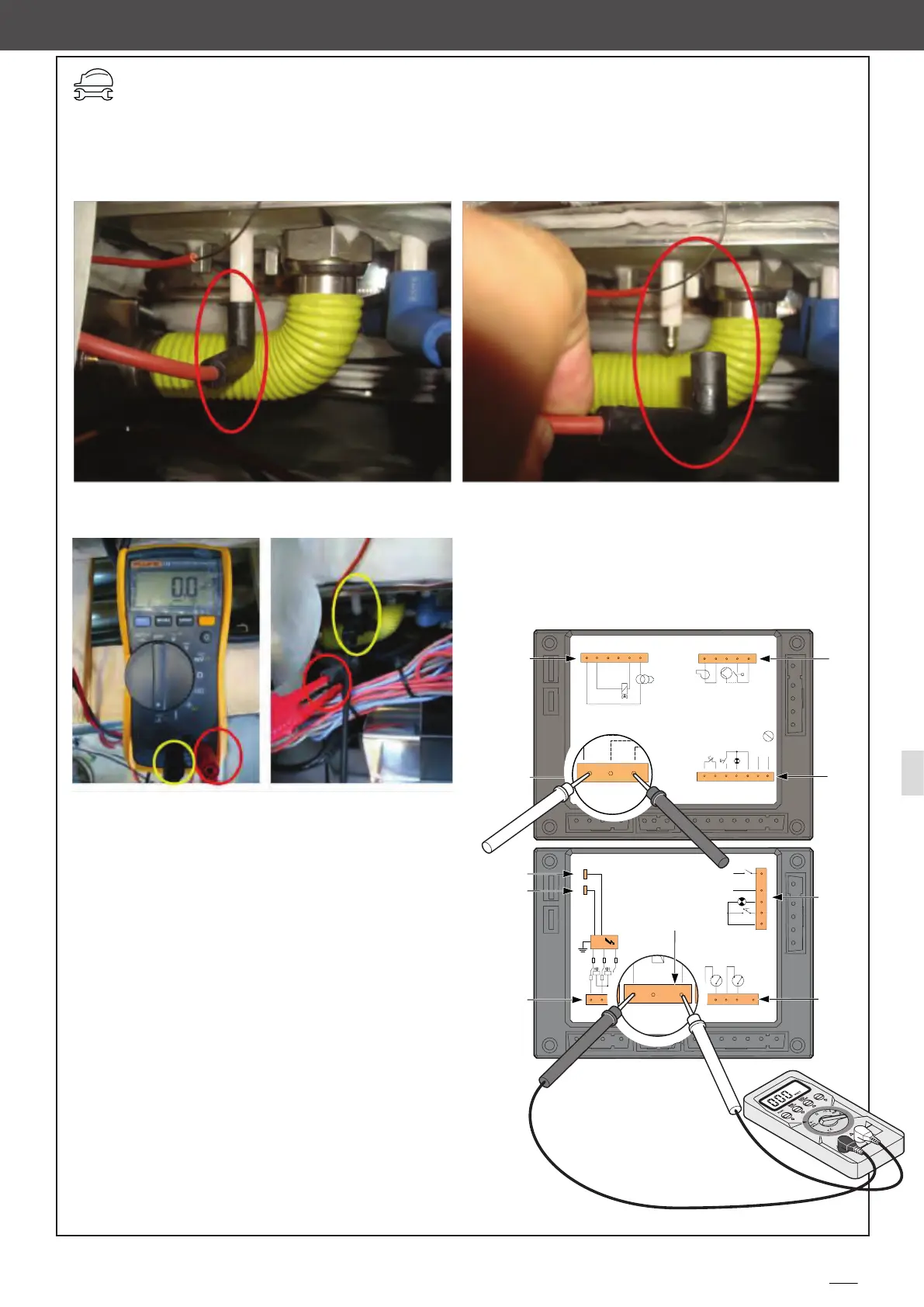

Figure 23
How to remove the flame detection cable
Test 2
Measure the voltage out of the J5 socket of the flame
control board between PIN 8 and PIN 10 using the
multimeter set to VAC.Measure the voltage on the
P34-35-36 sockets of the power board using the
multimeter set to VAC. (see Figure 24 and Figure 26)
Figure 24
How to measure the power supply to the P34 socket of
the power board
Figure 25
How to connect the multimeter in series between
the ame detection cable and the ame detection
electrode
