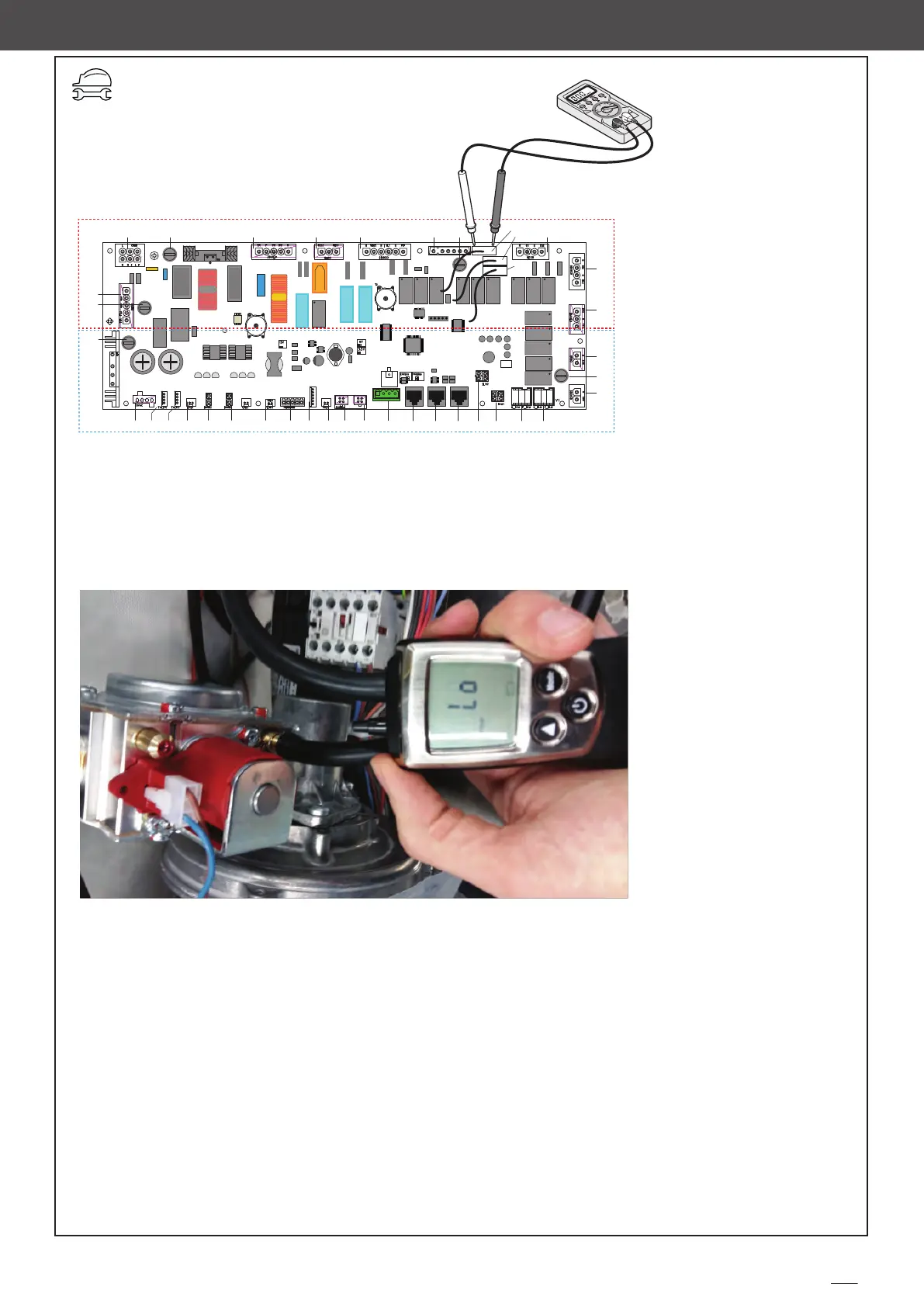

Figure 26
How to measure the power
supply from the flame control
board to the P34 socket of the
power board and from the
P35 or P36 to the gas valve
Test 3
Measure the outflow gas pressure with a differential pressure gauge. Take the measurement on the lower
screw of the gas valve. When the valve is opened, check if it is supplied with 190 – 210 VDC. As an alternative
you can check if the relay EV_GAS is ON (it is near the RL24 relay next to the P33 socket),Figure 27
Figure 27
How to measure the outflow
gas pressure
Test 4
Measure the voltage on J6 socket of the flame control board between pin 15 and 16 with the
multimeter set to VAC (see Figure 27)
