Unox MINDMaps CHEFTOP User Manual

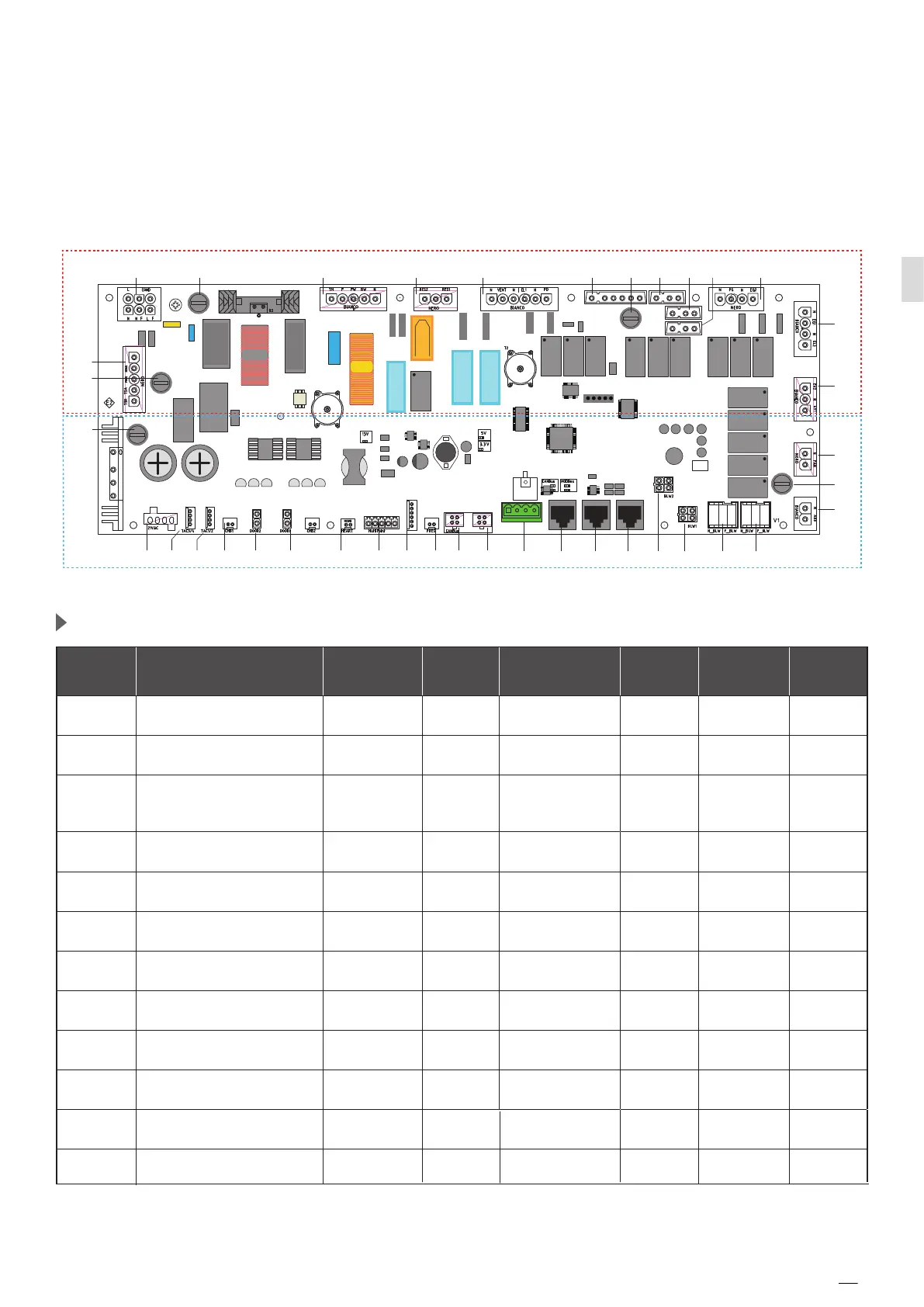

PE2021C GENERAL DESCRIPTION
The PE2021C is a circuit board with its main functions being to:
■ manage the loads of the oven (contactors, motors, solenoid valve, etc.)
■ read the measurements provided by the different sensors (temperature probes, door switch, etc.)
■ power the low voltage of the entire system
■ communicate through CANBUS with the control board
■ communicate through (RS485) with possible bridge boards
P10 P9 P8 P37 P29 P27P38
P21 P30 P20 P19 P15 P14 P28
P11
P12P13P32P18 P17 P16
24V
RI23
RI 3 RI 12 RI 14
RI 25 RI 24 RI 19 RI 16 RI 15 RI 18
RI 13
RI 5
RI 4
RI 6
RI 7
RI 26
P26
P5
P6
F9
P7
E1
F2P1
F4
P2 P3 P4 P33 F3 P34 P35 P36 P25
F7
P22
HIGHT VOLTAGE
LOW VOLTAGE
Output
NAME
LOAD
DESCRIPTION
ACTUALIZA-
TION
VOLTAGE CURRENT
(Max N°load)
TYPE OF
LOAD
Max N°
LOAD
HARDWARE
OUTPUT
EV_1
steam low flow rate
Relay (RL4) 230 Vrms 60 mA B 2
√
EV_2
steam high flow rate
Relay (RL5) 230 Vrms 60 mA B 2
√
VENT DRY.Maxi solenoid
230 Vrms 35 mA G 1
√
PD Detergent pump
Relay (RL14) 230 Vrms
370 mA C 2
√
EL_1
Washing solenoid from tap
water
Relay (RL2)
230 Vrms 30 mA B 1
√
EL_2
Washing solenoid to
3rd wash arm if fitted
Relay (RL18)
230 Vrms 30 mA B 1
√
EG_1
Rotor arm 1 water solenoid Relay (RL15)
230 Vrms 30 mA B 1
√
EG_2
Rotor arm 2 water solenoid Relay (RL16)
230 Vrms 30 mA B 1
√
ABB
Cooling drainage solenoid
Relay (RL7)
230 Vrms 30 mA B 1
√
FAN Cooling fan
Relay (RL6)
230 Vrms 260 mA E 2
√
RES_1
Braking element 1
Relay (RL10)
230 Vrms - - 5
√
Relay (RL3)
RES_2
Braking element 2
Relay (RL11)
230 Vrms
- - 5
√
RES_1
Braking element 1
Relay (RL10)
230 Vrms - - 5
√
23
