ELECTRICAL SWITCH VARIATIONS
Switch Variations.
There are three different variations of switches that may be fitted to the machine which
can be identified by looking at the back of the switch.

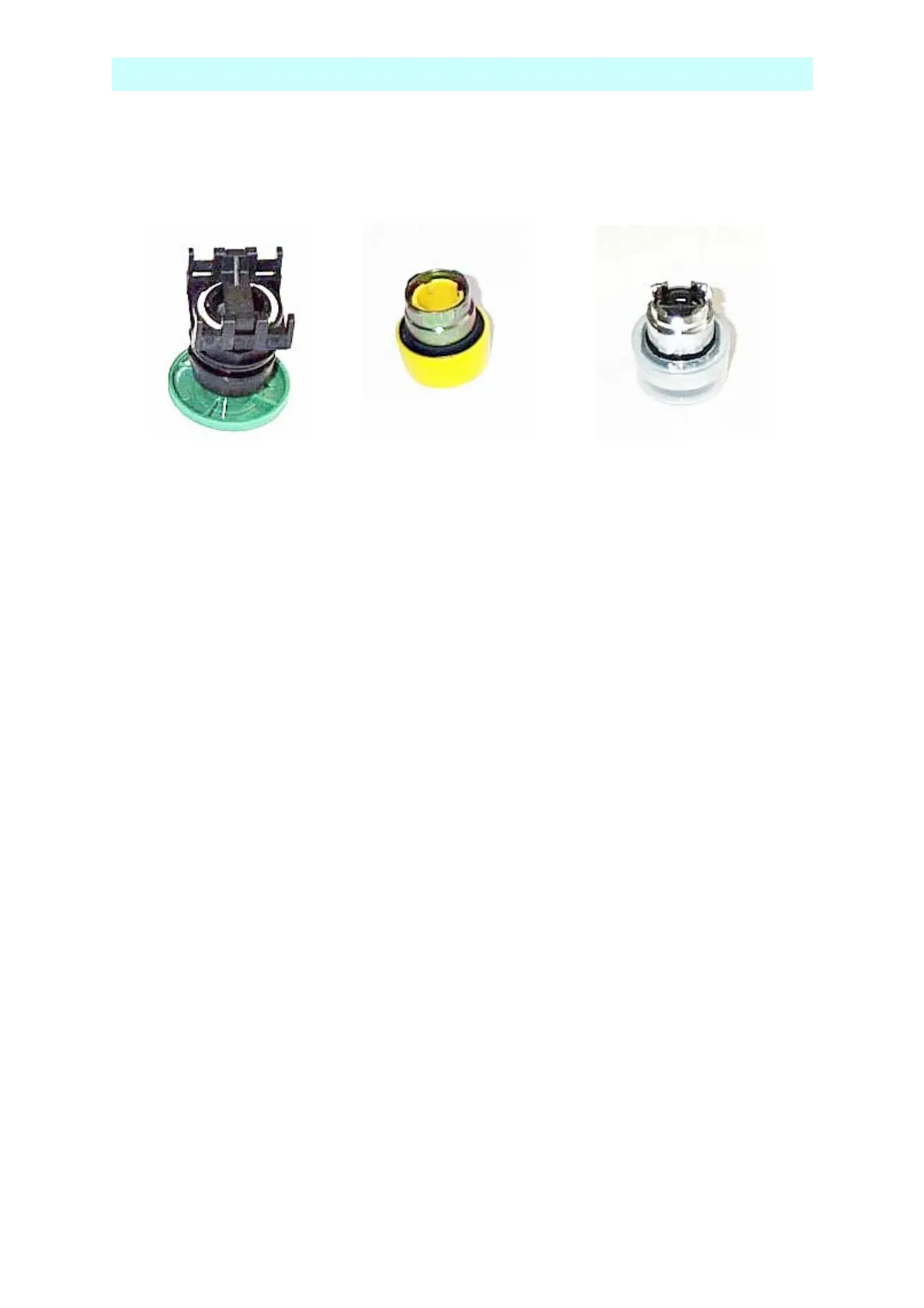

The three variations are shown in the diagram above.
Type 1. These are the switches which are listed on the previous page with
there corresponding part numbers. The type 1 switch is not
interchangeable with the other types of switch.
Type 2 & Type 3 These two types of switches are interchangeable as they use the
same size cut out in the electrical box. However if you do change
from type 2 to type 3 switch heads or vice versa, then you must
change the bodies and contacts as these are not interchangeable
between the two types of switches.
Details of all the part numbers of switch heads, bodies and contact are listed in the tables
on the next page.
TYPE 1 TYPE 2 TYPE 3
