Upright TM 12 Series User Manual

Pa
g
e 6-23

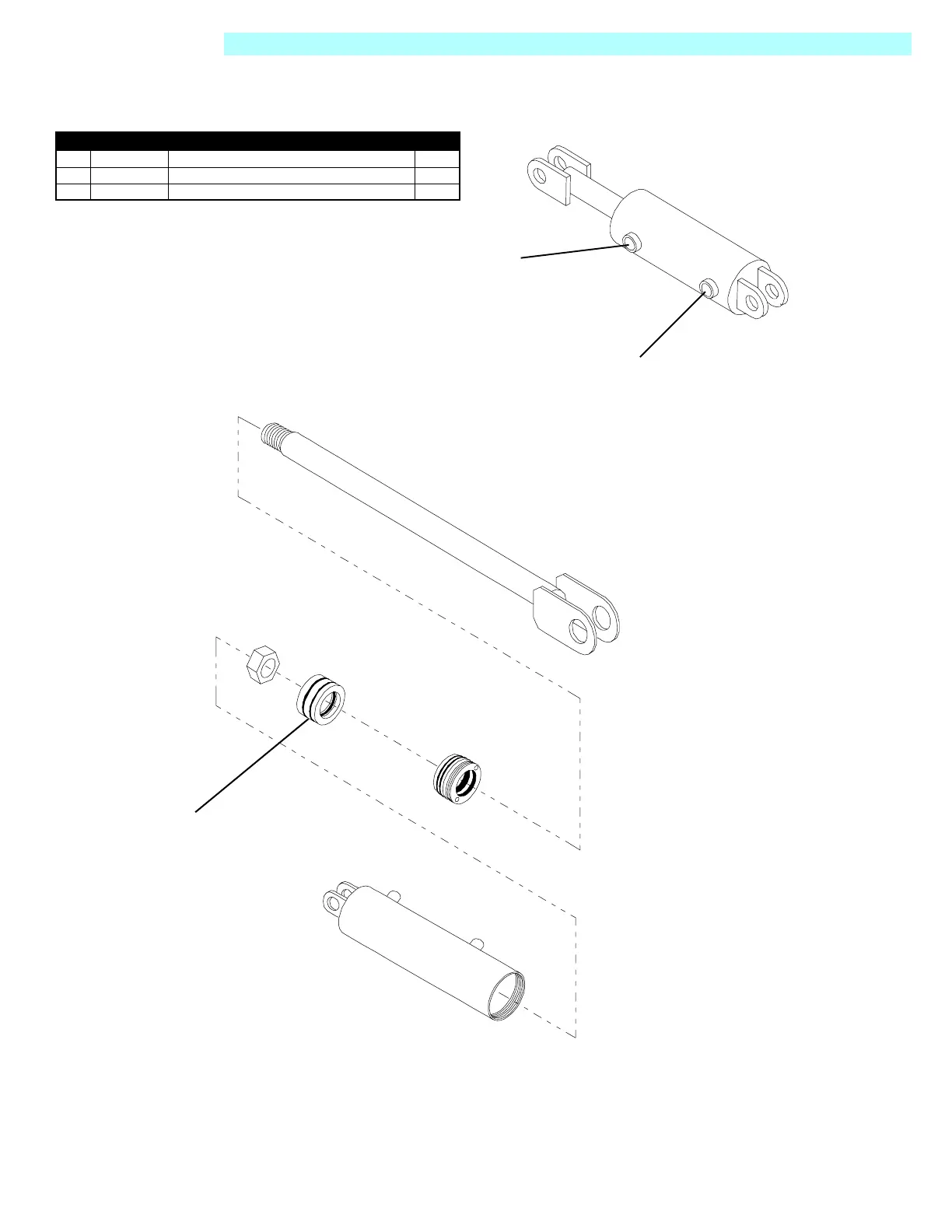

Illustrated Parts Breakdown - Hydraulic Cylinder Assembly (Steer / Brake)
505115-000 TM12 PARTS MANUAL
Hydraulic Cylinder Assembly (Steer / Brake)
505035-000
Item Part Description QTY.
1 505035-010 SEAL KIT, BRAKE/STEER CYLINDER 1
2 503784-000 FITTING, 1/8 - 1/8 (M/M) 2
3 503783-000 FITTING, 1/8 M/F BLOCK 90 1
1
NOTE: FITTINGS SHOWN APPLY TO STEERING CYLINDER,
WHEN FITTING HOSES TO THE BRAKE CYLINDER FIT THE
1/8 M/M TO THE FULL BORE END AND THE 1/8 BLOCK 90
WITH 1/8 M/M TO THE ANNULAR END.
2
3&2
