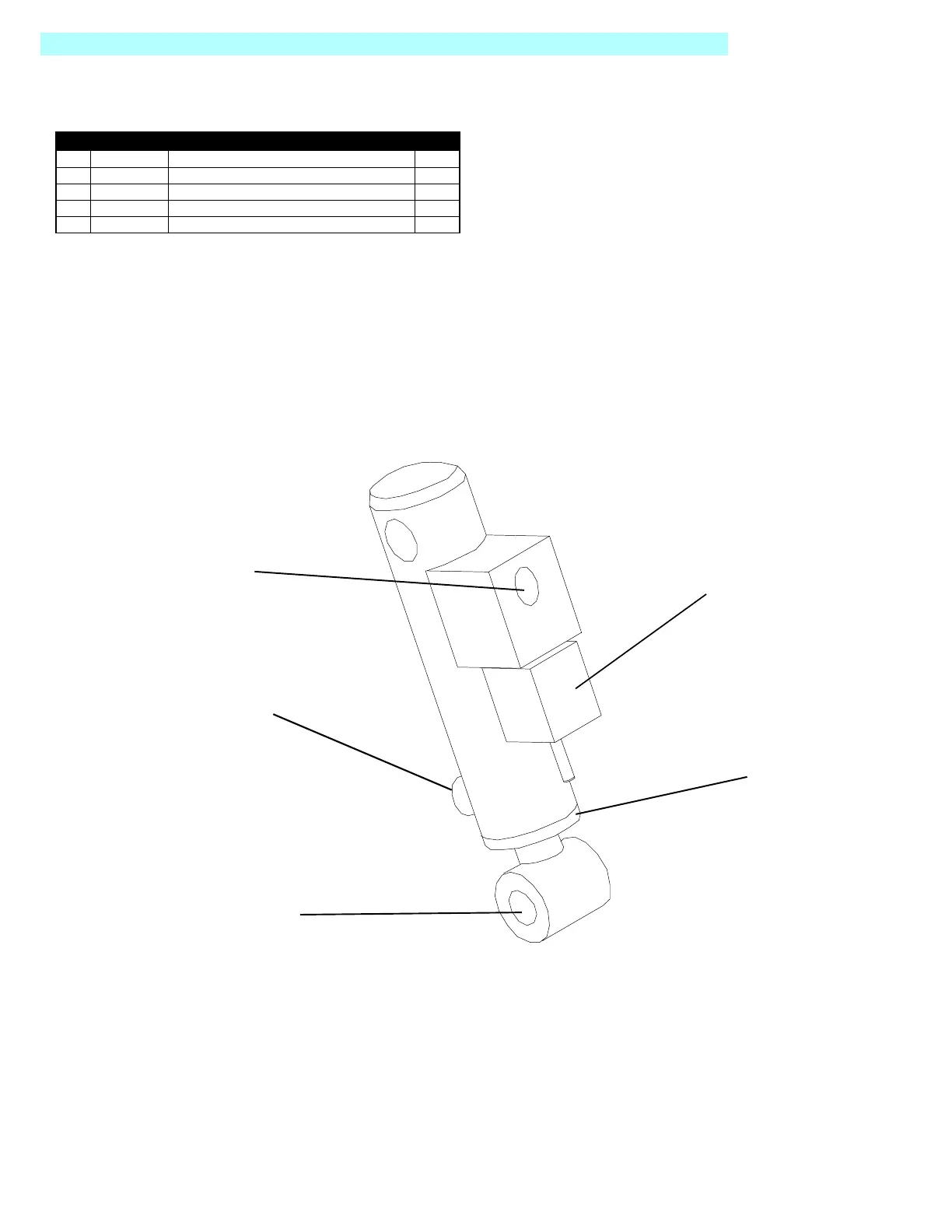

Illustrated Parts Breakdown - Hydraulic Cylinder Assembly (Pothole)
505115-000 TM12 PARTS MANUAL
Hydraulic Cylinder Assembly (Pothole)
505036-000
Item Part Description QTY.
1 505036-010 SEAL KIT, POTHOLE CYLINDER 1
2 501483-000 EMERGENCY RELEASE VALVE 1
3 503760-000 BUSHING 2
4 503785-000 FITTING, 1/4 - 1/8 (M/M) 1
5 503784-000 FITTING, 1/8 - 1/8 (M/M) 1
1
2
3
4
5
