Page 2 X Series
This manual covers operation of the X Series Self Propelled Work Platforms.
This manual must
be stored on the machine at all times.
Carefully read, understand and follow all safety rules, operating instructions, labels, and the Scaf-
fold Industry Association’s MANUAL OF RESPONSIBILITIES. Perform the following steps each
day before use.
1. Open module covers and inspect for damage, oil leaks, or missing parts.
2. Check the level of the hydraulic oil with the platform fully lowered. Open the Left Module and
remove the reservoir cap. Oil should be visible in the filler screen. Add hydraulic fluid if neces-
sary.
3. Check that fluid level in the batteries is correct (See “Battery Maintenance” on page 11.).
4. Verify that batteries are charged.
5. Check that A.C. extension cord has been disconnected from charger.
6. Check that all guardrails are in place with all fasteners properly tightened.
7. Check that the slide out deck extension is secured with the pin.
8. Inspect the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks,
damaged control cable, loose wire connections and wheel bolts.
9. Close and secure module covers.
10. Move the machine, if necessary, to an unobstructed area to allow for full elevation.
11. Pull Chassis EMERGENCY STOP Switch to the ON position.
12. Pull Platform EMERGENCY STOP Switch to the ON position.

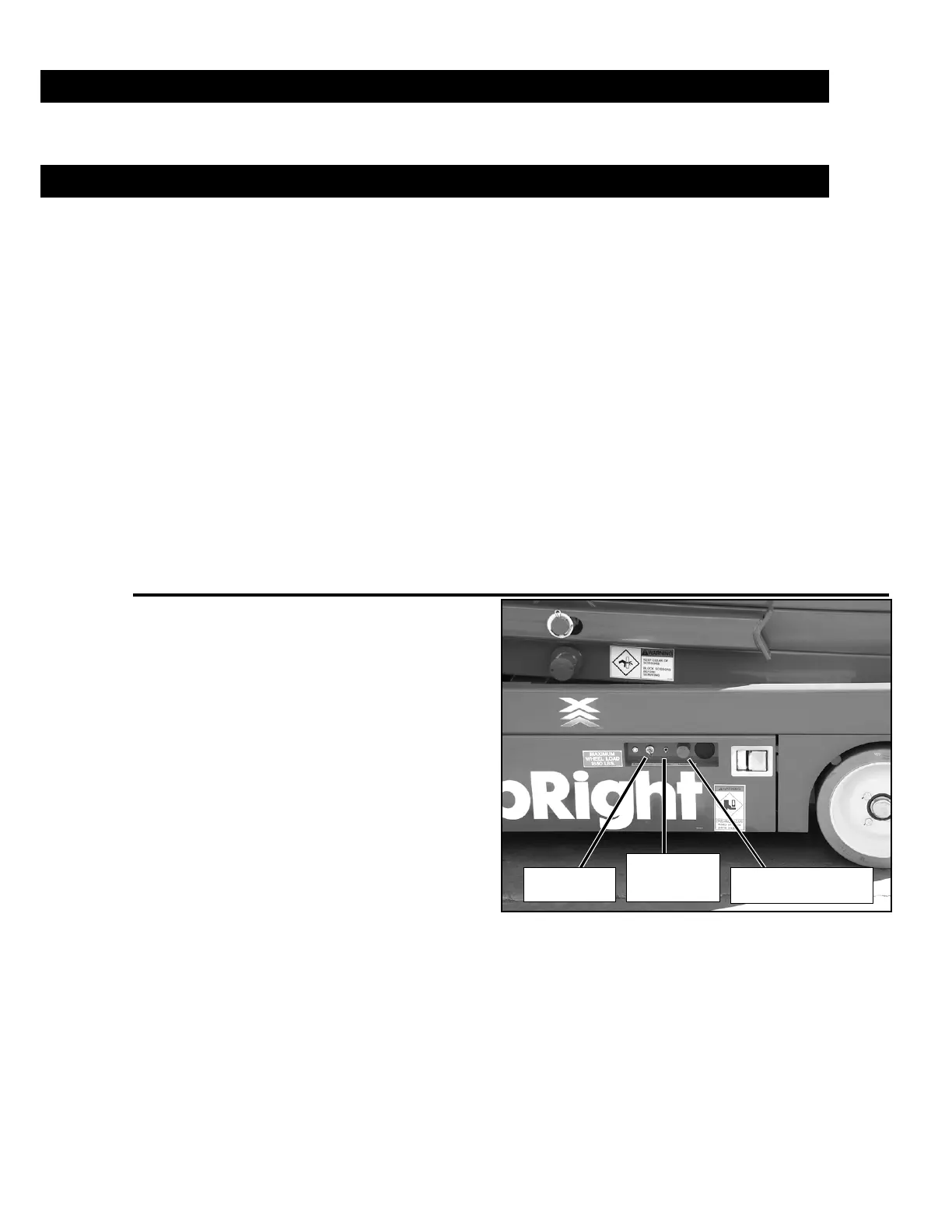

Figure 1:
Chassis Controls
13. Turn and hold the Chassis Key
Switch to CHASSIS.
14. Push the Chassis Lift/Lower Switch
to LIFT to elevate the platform until
the Scissor Brace can be rotated to
the vertical position. Block the ele-
vating assembly as described on
page 10.
15. Visually inspect the elevating
assembly, lift cylinder, cables and
hoses for cracked welds, loose
hardware, hydraulic leaks, loose
wire connections and erratic opera-
tion. Check for missing or loose
parts.
16. Verify that the depression mecha-
nism has deployed into position
under each module. Remove the
scissor brace as described on
page 10.
17. Push the Chassis Lift/Lower Switch to LIFT and fully elevate the platform.
18. Partially lower the platform by pushing the Chassis Lift/Lower Switch to LOWER, and check
operation of the audible lowering alarm.
I
NTRODUCTION
P
RE
-O
PERATION
AND
S
AFETY
I
NSPECTION
Chassis Key
Switch
Chassis
LIFT/LOWER
Switch
Chassis EMERGENCY
STOP Switch
To Next Page
