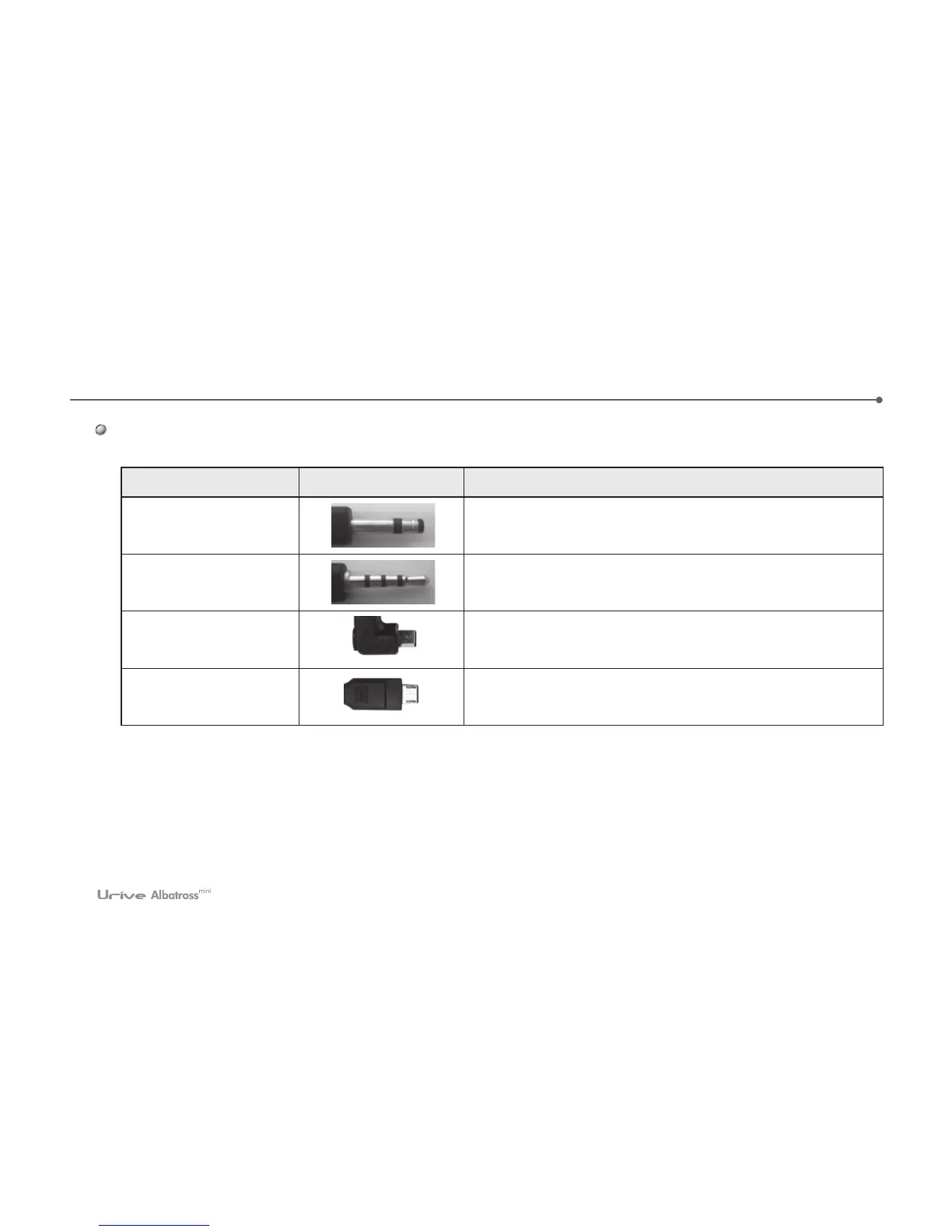

Port pin arrangement
Ports Images Pin arrangement
Power port
(DC socket)
 ①
GND
②
ACC
③
BAT (B+)
GPS port(2.5 pie)

①
VCC(3.6~6V DC)
②
Rx
③
GND
④
Tx(GPS Signal Output)
Front camera connection
port(Micro USB 5P)

①
VCC(5.0V DC)
②
Video signal -
③
Video Signal +
④
No use
⑤
GND
Rear camera connection
port(Micro USB 5P)

①
VCC(5.0V DC)
②
Video signal -
③
Video Signal +
④
No use
⑤
GND
①
⑤
……
①
⑤
……
①②③④
①
②③
