LPH800 TREATER

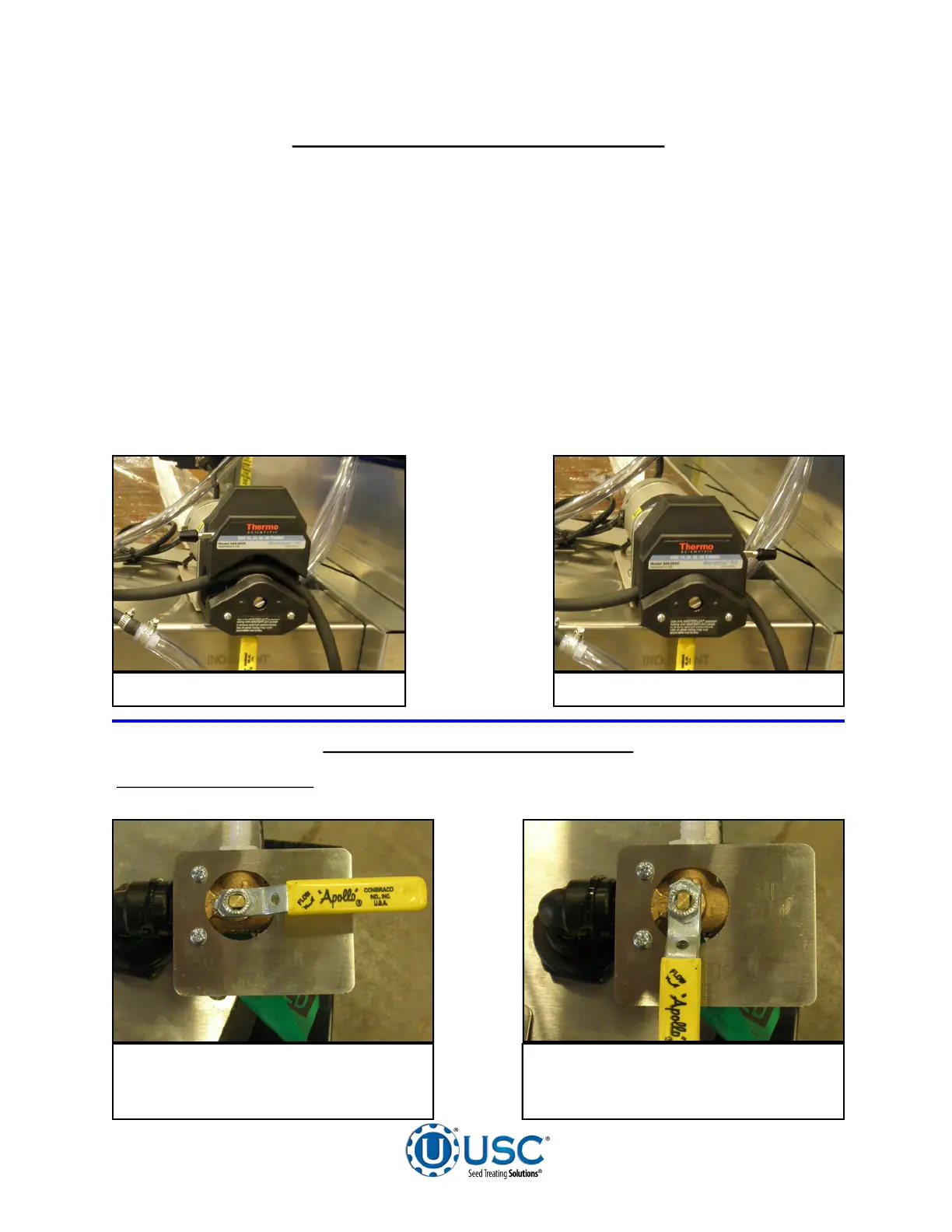

Pump Head Open Pump Head Closed
The LPH800 Treater utilizes a variable speed peristaltic pump and special norprene
pump tubing for liquid metering. The pump comes equipped with a peristaltic pump
head. Liquid will only come into contact with the inside diameter of the pump tubing
and not the pump. This allows for easy cleanup and less maintenance of the pump.
To open the pump head, turn lever to the left. Place pump tubing in pump head so it
fits inside the notches and above the rollers. Turn lever back to the right to close the
pump head, clamping the tubing inside the head. Wear or fatigue of the tubing due to
usage and compression is normal. When tubing becomes worn or liquid rates begin to
slow down, open the pump head and move the tubing to a different position. When the
entire piece of tubing becomes worn, simply replace with a new section of tubing.
When not using the machine for a few days or when storing, open the pump head and
remove the tubing to prevent any unnecessary compression during the off-season.
VALVE ON MIX TANK:
This valve directs the liquid coming from the Calibrate side of
the Seed Treatment Valve.
Pump #1 pumping liquid into the
top of the calibration tube when
Seed Treatment Valve is in Calibrate
PERISTALTIC PUMP HEADS AND MOTOR
PUMP #1 LIQUID SYSTEM VALVES
Pump #1 pumping liquid into the
top of the mix tank when Seed
Treatment Valve is in Calibrate
