Page 24
LPH800 TREATER
PUMP #2 LIQUID SYSTEM VALVES
Pump #2 Pumping Liquid to
Calibration Valve
Pump #2 Pumping Liquid to the
Atomizer

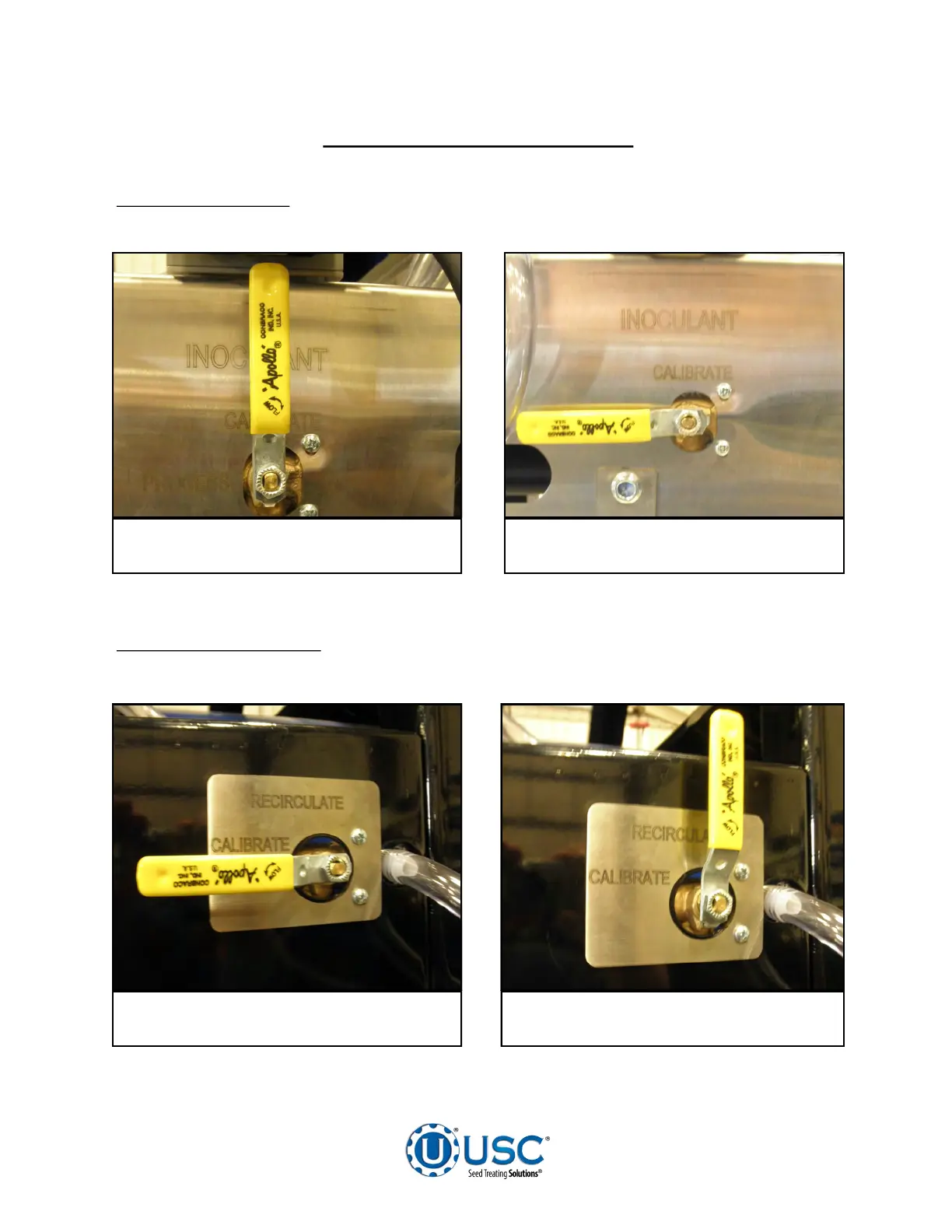

INOCULNT VALVE:
This valve controls the direction of the liquid coming from the
tank.
CALIBRATION VALVE:
This valve directs liquid which comes from the calibrate side
of the Inoculant valve.
Directs liquid to the hose to the right of
the valve to check calibration
Directs Liquid back into the top of the
5 gallon tank
